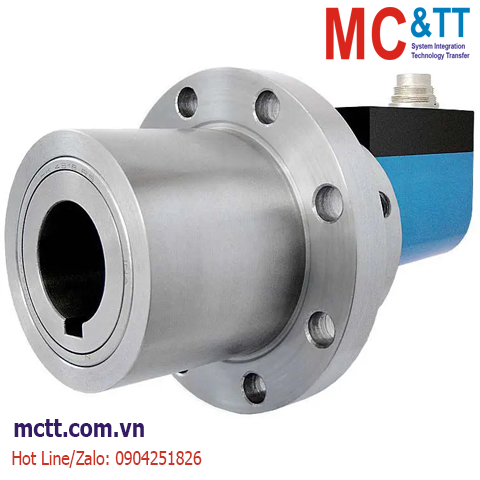

Cảm biến đo Momen xoắn trục quay không tiếp xúc 20 - 5000 Nm Lorenz MR-12

Chia sẻ:
Mã sản phẩm: MR-12
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque sensors MR-12, rotating contactless with angle and speed measurement for belt pulleys from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc 20 - 5000 Nm Lorenz MR-12

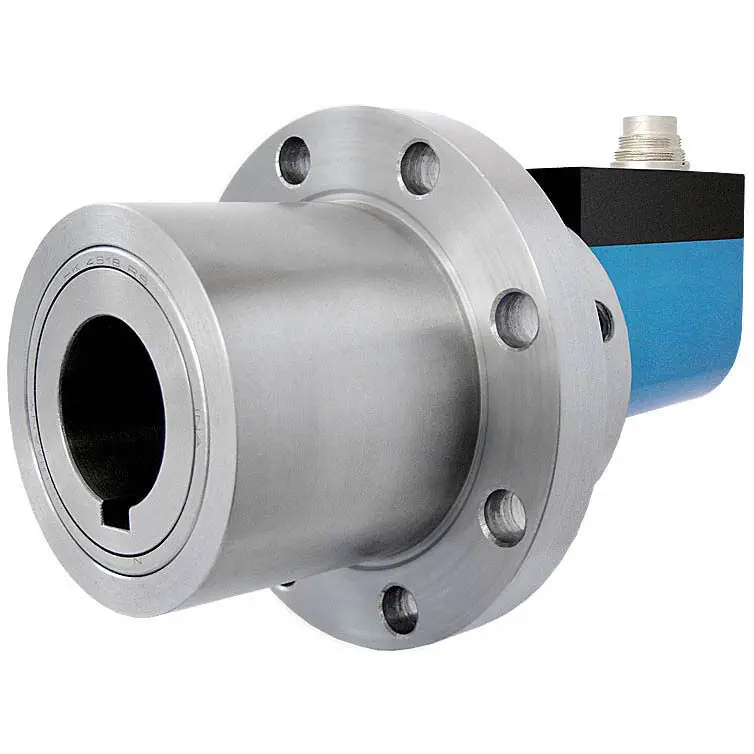

MR-12, Torque Belt Pulley
The MR-12 torque sensor has a contactless and digital signal transmission from rotor to stator , which means no signal falsification and maintenance-free.

Features:

  • Contactless Rotary Torque Sensor
  • Socket with Keyway
  • Connection: 12-pin Series 581 Connector with Speed Option
  • Analog Output ±5V (±10V Option)

MR-12 - Specifications

Type Rotary
Full Scale 20 Nm
  50 Nm
  100 Nm
  200 Nm
  500 Nm
  1000 Nm
  2000 Nm
  5000 Nm
Max Speed 5000 RPM
  10000 RPM
  12000 RPM
Output ±5 V DC
  ±10 V DC
Precision ±0.10 % FS
Excitation 12 V - 28 V DC
Drive Side Flange
Test Side Round Socket with Keyway
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends
Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends

PDF Datasheet: 080937_MR-12_en.pdf
