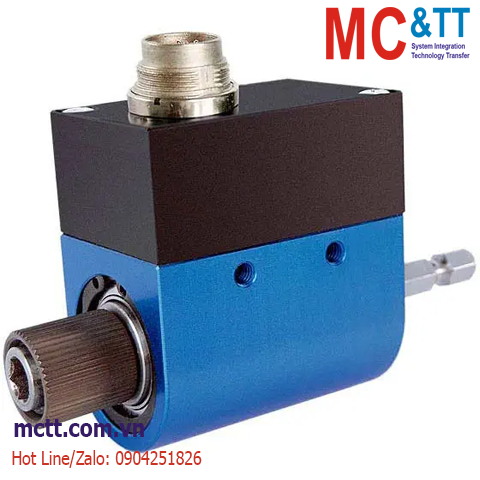

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 Nm 0.2 Nm 0.5 Nm 1 Nm 2 Nm 5 Nm 10 Nm 15 Nm 20 Nm Lorenz DR-2494

Chia sẻ:
Mã sản phẩm: DR-2494
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque Sensor, Rotating, Contactless DR-2494

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 Nm 0.2 Nm 0.5 Nm 1 Nm 2 Nm 5 Nm 10 Nm 15 Nm 20 Nm Lorenz DR-2494

DR-2494, Miniature Torque Sensor
The DR-2494 has a contactless and digital signal transmission from rotor to stator, which means no signal falsification and maintenance-free.

Features:

  • Contactless Rotary Torque Sensor
  • Hexagon Shaft & Socket
  • Very Short Axial Length
  • Connection: 12-pin Series 581 Connector with Speed Option
  • Analog Output ±5V (±10V Option)

DR-2494 - Specifications

Type Rotary
Full Scale 0.1 Nm
  0.2 Nm
  0.5 Nm
  1 Nm
  2 Nm
  5 Nm
  10 Nm
  15 Nm
  20 Nm
Max Speed 3000 RPM
  4000 RPM
Output ±5 V DC
  ±10 V DC
  Speed/Angle (TTL)
Precision ±0.25 % FS
Excitation 12 V - 28 V DC
Drive Side 1/4in Hexagon Socket
Test Side 1/4in Hexagon Shaft
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends
Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends

PDF Datasheet: 080963_DR-2494_en.pdf
