Torque Sensors, Rotating, Contactless DR-2114 / DR-2414
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:
Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 Nm 0.2 Nm 0.5 Nm 1 Nm 2 Nm 5 Nm 10 Nm 15 Nm 20 Nm Lorenz DR-2114

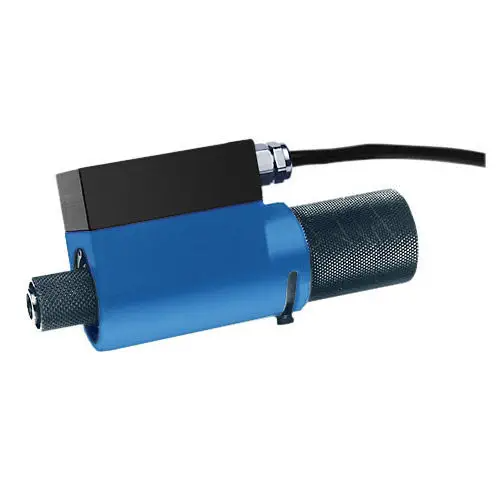

DR-2114, Analog Output Rotary Torque Sensor
The DR-2114 miniature torque sensor has a contactless and digital signal transmission from rotor to stator , which means no signal falsification and maintenance-free.
Features:
DR-2114 - Specifications
Type | Rotary |
Full Scale | 0.1 Nm |
0.2 Nm | |
0.5 Nm | |
1 Nm | |
2 Nm | |
5 Nm | |
10 Nm | |
15 Nm | |
20 Nm | |
Max Speed | 3000 RPM |
4000 RPM | |
Output | ±5 V DC |
±10 V DC | |
Speed/Angle (TTL) | |
Precision | ±0.10 % FS |
Excitation | 12 V - 28 V DC |
Drive Side | 1/4in Hexagon Socket |
Test Side | 1/4in Hexagon Socket |
IP Rating | IP50 |
Min Temperature | 0 °C |
Max Temperature | 60 °C |
Download
PDF Datasheet: | DR-2114: 080965_DR-2114_en.pdf DR-2414: 080967a_DR-2414_en.pdf |
---|
