Torque Sensors, Contactless DR-1986 / DR-1987 / DR-1988 / DR-2124
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

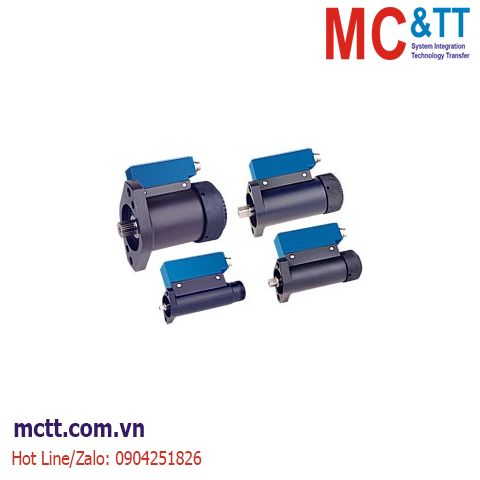

Cảm biến đo Momen xoắn trục quay không tiếp xúc 1 Nm 3 Nm 4 Nm 6 Nm 12 Nm 35 Nm 60 Nm 80 Nm 90 Nm 95 Nm 150 Nm 160 Nm 200 Nm 240 Nm 250 Nm 500 Nm Lorenz DR-1986/DR-1987/DR-1988/DR-2124
DR-1986/DR-1987/DR-1988/DR-2124, Torque Sensors for Screw Systems
These DR series torque sensors are designed for use with commercially available screw systems. They have been designed with integrated angle measurement and integrated control signal.
Features:
DR-1986/DR-1987/DR-1988/DR-2124 - Specifications
Type | Rotary |
Full Scale | 1 Nm |
3 Nm | |
4 Nm | |
6 Nm | |
12 Nm | |
35 Nm | |
60 Nm | |
80 Nm | |
90 Nm | |
95 Nm | |
150 Nm | |
160 Nm | |
200 Nm | |
240 Nm | |
250 Nm | |
500 Nm | |
Max Speed | 2000 RPM |
Output | ±5 V DC |
±10 V DC | |
Speed/Angle (TTL) | |
Precision | ±0.30 % FS |
Excitation | 12 V - 28 V DC |
Drive Side | Square Socket |
Test Side | Square Shaft |
Gear Spline | |
IP Rating | IP50 |
Min Temperature | 0 °C |
Max Temperature | 60 °C |
Download
Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 12-pin female cable connector and free soldered ends |
---|---|
PDF Datasheet: | 080969_dr-1986_dr-1987_dr-1988_dr-2124_en.pdf |
