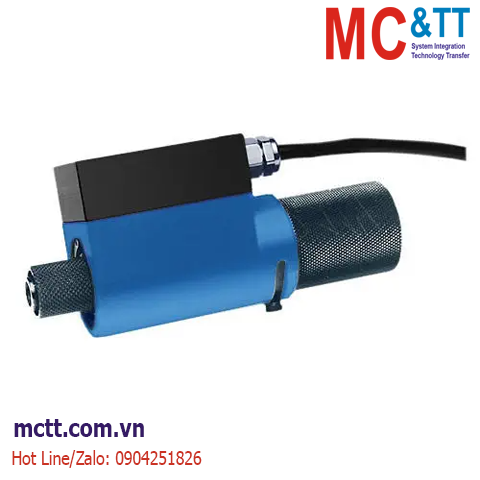

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 - 20 Nm Lorenz DR-2414

Chia sẻ:
Mã sản phẩm: DR-2414
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque Sensors, Rotating, Contactless DR-2114 / DR-2414

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 - 20 Nm Lorenz DR-2414

DR-2414, Digital Output Rotary Torque Sensor
The DR-2414 torque sensor has a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. The unit can perform auto-identification of measuring range, serial number and date of calibration.

Features:

  • Contactless Rotary Torque Sensor
  • Hexagon Sockets
  • Miniature
  • Connection: 3m Integral Cable
  • Digital Output RS-485

DR-2414 - Specifications

Type Rotary
Full Scale 0.1 Nm
  0.2 Nm
  0.5 Nm
  1 Nm
  2 Nm
  5 Nm
  10 Nm
  20 Nm
Max Speed 3000 RPM
  4000 RPM
Output RS-485
Precision ±0.10 % FS
Excitation 12 V - 28 V DC
Drive Side 1/4in Hexagon Socket
Test Side 1/4in Hexagon Socket
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

PDF Datasheet: DR-2114: 080965_DR-2114_en.pdf
DR-2414: 080967a_DR-2414_en.pdf
