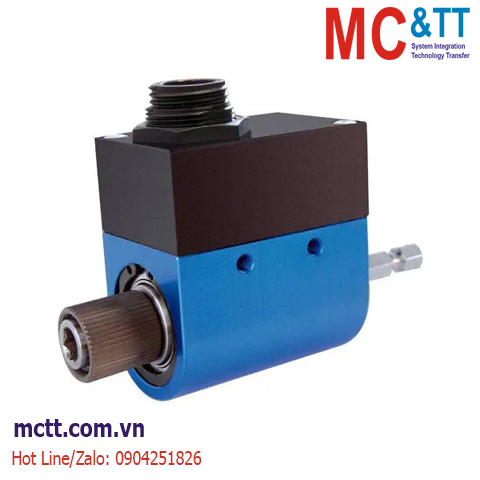

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 Nm 0.2 Nm 0.5 Nm 1 Nm 2 Nm 5 Nm 10 Nm 15 Nm 20 Nm Lorenz DR-3003

Chia sẻ:
Mã sản phẩm: DR-3003
Thương hiệu: Lorenz Messtechnik
Tình trạng:

USB torque sensors with ¼" hexagon drive and quick change chuck for torque, speed and angle of rotation for screw driving from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 Nm 0.2 Nm 0.5 Nm 1 Nm 2 Nm 5 Nm 10 Nm 15 Nm 20 Nm Lorenz DR-3003

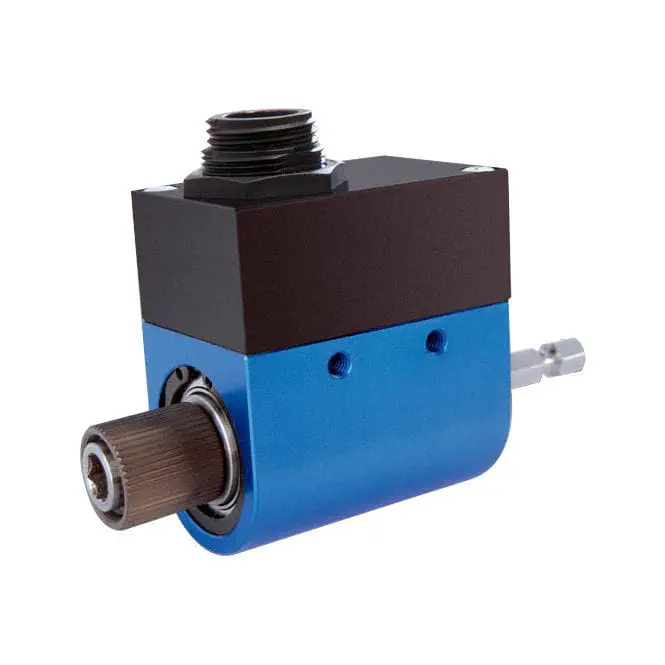

DR-3003, Rotary Torque Sensor with USB Interface
The DR-3003 torque sensor comes configured with evaluation software. USB interface feeds-in directly to the sensor so no external power supply is necessary. The very short axial length and high torsional stiffness make for a reliable measurement.

Features:

  • Contactless Rotary Torque Sensor
  • 1/4" Hexagon Shaft & Socket
  • Very Short Axial Length
  • Integrated Angle/Speed Measurement
  • Connection: 3m Integral USB Cable
  • Suited for Mobile Operation with a Notebook
  • Special Versions on Request

DR-3003 - Specifications

Type Rotary
Full Scale 0.1 Nm
  0.2 Nm
  0.5 Nm
  1 Nm
  2 Nm
  5 Nm
  10 Nm
  15 Nm
  20 Nm
Max Speed 3000 RPM
  4000 RPM
Output USB
Precision ±0.10 % FS
Excitation 4 V - 6 V DC
Drive Side 1/4in Hexagon Shaft
Test Side 1/4in Hexagon Socket
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

PDF Datasheet: 080957_dr-3003_en.pdf
