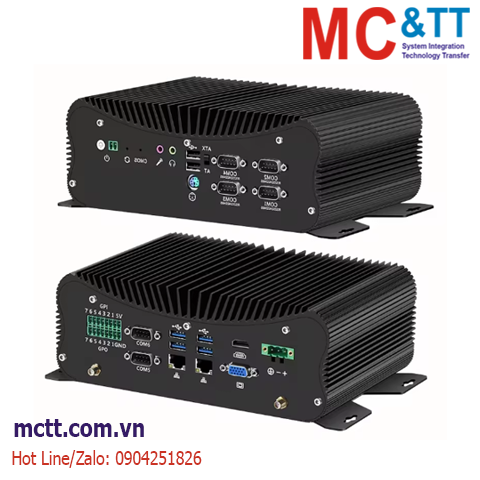

Máy tính nhúng công nghiệp không quạt (2 LAN + 6 COM) MCTT MBOX-2L6C-12TH
Tính năng
• CPU 12th Gen Intel® Core™ i5/i7
• Dual-channel DDR5 SO-DIMM, up to 64GB
• Storage: 1* M.2 2280 M-key Slot; 1* 2.5” SATA3.0; 1* mSATA
• Support 2* 2.5G LAN, 6* COM and 6* USB
• Support Dual HDMI + VGA display output
• Support RTC, Wake on LAN, Watch Dog, Auto Power On
• Fanless system without cooling fan
Thông số kỹ thuật
|
CPU |
CPU Model |
Intel® Core™ i7-1260P |
Intel® Core™ i5-1235U |
|
Graphic |
Intel® Iris® Xe Graphics, Up to 96 EUs, 1.4Ghz |
Intel® Iris® Xe Graphics, Up to 80 EUs, 1.2Ghz |
|
TDP |
20 ~ 28W |
15W |
|
RAM |
2* non-ECC SO-DIMM Socket, support DDR5-4800 MHz, up to 64GB |
|
Storage |
1* M.2 (NGFF) 2280 M-key Slot + 1*mSATA + 1*2.5” SATA SSD |
|
Supported OS |
Win 10; Win 10 IoT, Ubuntu, Debian, Kali, CentOS, etc. |
|
I/O Interface |
COM |
6* DB9 COM (4*COM support RS-232/422/RS485) |
|
Ethernet |
2* Intel I226-V 2.5G RJ45 LAN |
|
USB |
4* USB3.0; 2 * USB2.0 |
|
Video |
1* HDMI + 1 * VGA, max resolution up to 4096*2160@30Hz |
|
Audio |
1* MIC, 1* SPK |
|
SIM |
1* Built-in SIM Card Slot onboard |
|
Power Supply |
DC 9V~36V, Terminal Block (2-Pin, 5.08mm) (recommend 12V/5A) |
|
Other |
1* GPIO (7 pin input, 7 pin output)
1* PS/2 (keyboard and mouse 2 in 1)
1* AT/ATX switch
Reset + CMOS clear button |
|
Expansion |
1* Half size Mini PCI-E Slot for Wi-Fi/Bluetooth
1* Full size Mini PCI-E Slot for 4G/3G module with Sim Card |
|
Operating Temperature |
-10 ~ 60 °C (with W.T. SSD/DRAM) |
|
Storage Temperature |
-30 ~ 70 °C (-40~185 °F) |
|
Relative Humidity |
10%~90% (non-condensing) |
|
Dimensions |
249mm*150mm*86mm (W* H* D) |
|
Net Weight |
3.0 KG |
Bộ xử lý CPU
|
CPU |
Code Name |
Total Cores |
Total Threads |
Max Turbo Frequency |
Base Frequency |
Cache |
TDP |
Memory Types |
Integrated Graphics |
|
Intel® Core™ I7-1260P |
Alder Lake |
12 |
16 |
4.7 GHz |
2.1 GHz |
18 MB Intel® Smart Cache |
20-28W |
DDR5 |
Intel® Iris® Xe Graphics; 96Eus |
|
Intel® Core™ I5-1235U |
Alder Lake |
10 |
12 |
4.4 GHz |
1.3 GHz |
12 MB Intel® Smart Cache |
15W |
DDR5 |
Intel® Iris® Xe Graphics; 80Eus |
Thông tin đặt hàng
|
Part no. |
Description |
|
MBOX-2L6C-12TH-I5 |
Fanless Embedded Industrial Computer with Intel® I5 1235U, 2 GLAN, 6 USB, 6 COM, HDMI + VGA, GPIO, Audio and PSU |
|
MBOX-2L6C-12TH-I7 |
Fanless Embedded Industrial Computer with Intel® I7 1260P, 2 GLAN, 6 USB, 6 COM, HDMI + VGA, GPIO, Audio and PSU |
