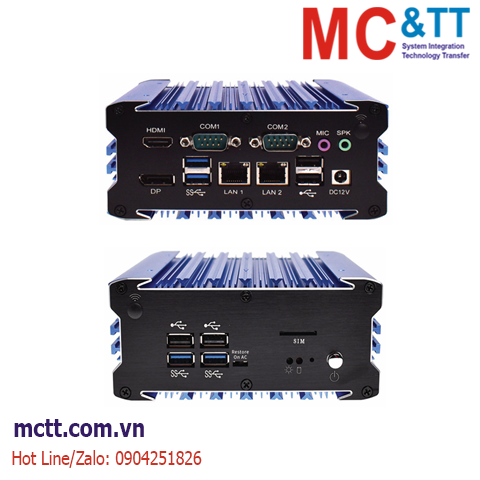

Máy tính nhúng công nghiệp không quạt (2 LAN + 2 COM) MCTT MBOX-2L2C
The MBOX-2L2C Embedded Mini PC features Intel® Core™ 6th to 10th generation processors and Intel® Celeron®, giving you more computing power and cost advantages. Dual-channel DDR4 provides up to 64 GB of memory and supports multiple displays via HDMI and DP. It is dust-proof, interference-resistant, and temperature-resistant. A rich set of I/O interfaces including 2LAN, 2COM, 4 USB3.0 and 2 USB2.0 are available to meet the requirements of most markets. Desktop mounting is easy, with an M.2 interface for Wi-Fi and a SIM card slot for expansion.
Tính năng
- CPU 10th Gen Intel® Core™ i5
- Dual-channel DDR4-2666 SO-DIMM, up to 64GB
- Storage: 1* M.2 2280 M-key Slot; 1* 2.5” SATA3.0
- Support 2 GbE LAN, 2 COM and 6 USB
- Support Dual HDMI + DP display output
- Support RTC, Wake on LAN, Watch Dog, Auto Power On
- Fanless system without cooling fan
Thông số kỹ thuật
|
CPU |
CPU Model |
Intel® Core™ i5-10210U |
|
Graphic |
Intel® UHD Graphics 620 |
|
TDP |
15W |
|
RAM |
2* non-ECC SO-DIMM Socket, support DDR4-2666 MHz, up to 64GB |
|
Storage |
M.2 |
1* M.2 2280 M-key slot (SATA3.0 only) |
|
SATA |
1* 2.5″ SATA3.0 Bay on board (6Gb/s) |
|
Supported OS |
Win 7, Win 8, Win 10, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT |
|
I/O Interface |
COM |
2* RS232/485, DB9 connector |
|
Ethernet |
2* RTL 8111H GbE LAN (10/100/1000 Mbps, RJ45) |
|
USB |
4* USB3.0; 2 * USB2.0 |
|
Video |
1* DP, support 4096×2304@60Hz;
1* HDMI, support 4096×2304@24Hz |
|
Audio |
1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662 |
|
SIM |
1* External SIM card slot connected to Mini-PCIe |
|
Power Supply |
12V DC; 1* DC Jack (5.5* 2.5mm) |
|
Other |
1* Auto-On Switch |
|
Expansion |
1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0);
1* M.2 2230 E-key slot (PCIe+USB2.0, support WiFi+BT) |
|
Operating Temperature |
-10 ~ 50 °C w/ 0.7m/s Airflow |
|
Storage Temperature |
-40 ~ 85 °C (-40~185 °F) |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
Dimensions |
141* 62* 127.5mm (W* H* D) |
|
Net Weight |
1.2 KG |
Kích thước sản phẩm
Thông tin đặt hàng
|
Part no. |
Description |
|
MBOX-2L2C |
Fanless Embedded Industrial Computer with Intel® I5-10210U, 2 GLAN, 6 USB, 2 COM, HDMI, DP and PSU |
