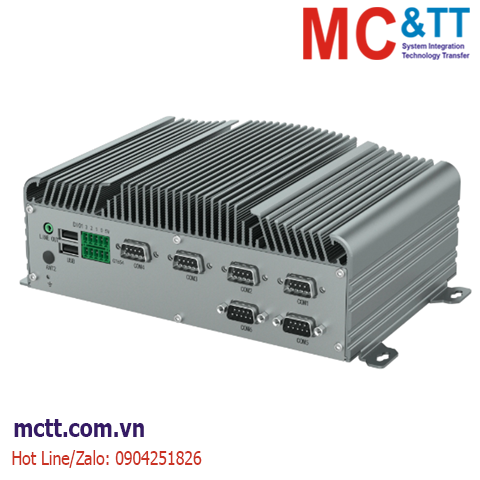

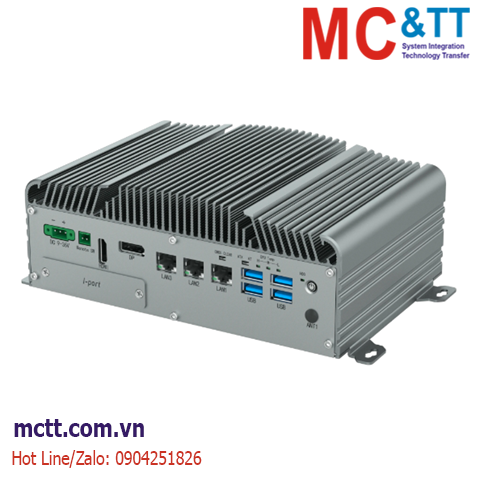

Máy tính công nghiệp không quạt JHC Tech KMDA-3201-S002-8G với Intel® I5-6200U/I5-7200U CPU, 3*LAN, 4*USB3.0, 3*USB2.0, 6*COM, 8bit DIO, Mini PCIe, M.2, HDMI, DP , Audio out, I-port, 2.5″ driver bay, mSATA, DC 9~30V
KMDA-3201 là máy tính công nghiệp không quạt dạng hộp hiệu suất cao. Nó được trang bị CPU Intel® Celeron/ Pentium/ Core I3/ I5/I7 gen6/ 7th, 2 khe cắm RAM DDR4 2133/ 2400MHz, tối đa 32GB, 1 cổng DP, HDMI; 3 cổng GbE LAN, 4 cổng USB3.0, Mini PCIe hỗ trợ 4G và Wifi/BT; 1 cổng 2.5″ SATA HDD/SSD, 1*mSATA, 1*M.2, dùng để lưu trữ. Với đầu vào nguồn rộng DC 12~24V, hiệu suất cao, nhiều IO, dễ dàng tháo rời và lắp đặt thẻ chức năng hoặc HDD/SSD, được sử dụng rộng rãi cho AI thông minh, Bảo mật và Machine Vision.
Tính năng
- Aluminum chassis, fanless design
- Intel Skylake-u/Kabylake-u CPU
- 2* DDR4 2133MHZ SODIMM, Up to 32GB
- I*DP, 1*HDMI, Dual 4K display
- 3*Gig LAN, 4*USB3.0. 3*USB2.0(one inside）
- 6*COM. 8-bit DIO. Audio out
- 1*F-MINI Pcle(Pcle+ USB),1*M2 2242 B-key
- I*F-MSATA, 1/2*2.5″SATA HDD/SSD driver baySupport ipro and TPM2.0
- DC 9-30V Wide Power Input
- Mechanical design flexible to the desktop mount
Thông số kỹ thuật
| CPU |
Gen.6th Intel® Skylake-U Celeron 3855U; Core I3-6100U; I5-6200U; I7-6500U CPU
Gen. 7th Intel® Kabylake-U Celeron 3865U; Core I3-7100U; I5-7200U; I7-7500U CPU |
| System memory |
2*260-Pin SODIMM, dual channel DDR4 2133Mhz, up to 32GB |
| Expansion |
1*Full size Mini PCIe (PCIeX1+USB) with SIM slot, 1*M.2 2242 B-key(PCIe1+USB) with SIM slot, support 2*4G LTE and Wii/BT |
| Graphics |
Gen. 9th Intel® HD Graphics,HEVC/H265 HW HD en/decoder, DP max. res. 4096*2304g60Hz, HDMI max. res. 3940*2160g30Hz, Dual independed display |
| Audio |
Realtek ALC662VD controller, support 5.1 channel |
| LAN |
2*Intel I211AT(optional I210AT) PCIe Gig. Ethernet, Integrated 10/100/1000M;
1*Intel I219LM PCIe Gig. Ethernet, support iVpro technology |
| KB & MS |
USB keyboard and mouse |
| Storage |
1/2*2.5I SATA HDD/SSD bay, cooling by aluminum chassis, SATA3 6.0Gbps; 1*mSATA, support AHCI |
| DIO |
8 bit TTL signal, Programmable input and output |
| I-port |
Optional 1*LVDS, 2*USB2.0 or Mini PCIe ports(such as serial ports and parallel ports) |
| LED |
1*Power on LED, 1*HDD Run LED, 3*CPU temp. LED (Red: Warning, Yellow: High, Green: Normal) |
| Control SW |
1*Power sw(Front), 1*2pin term. power sw (Rear), 1*AT/ATX Select dip (Front) |

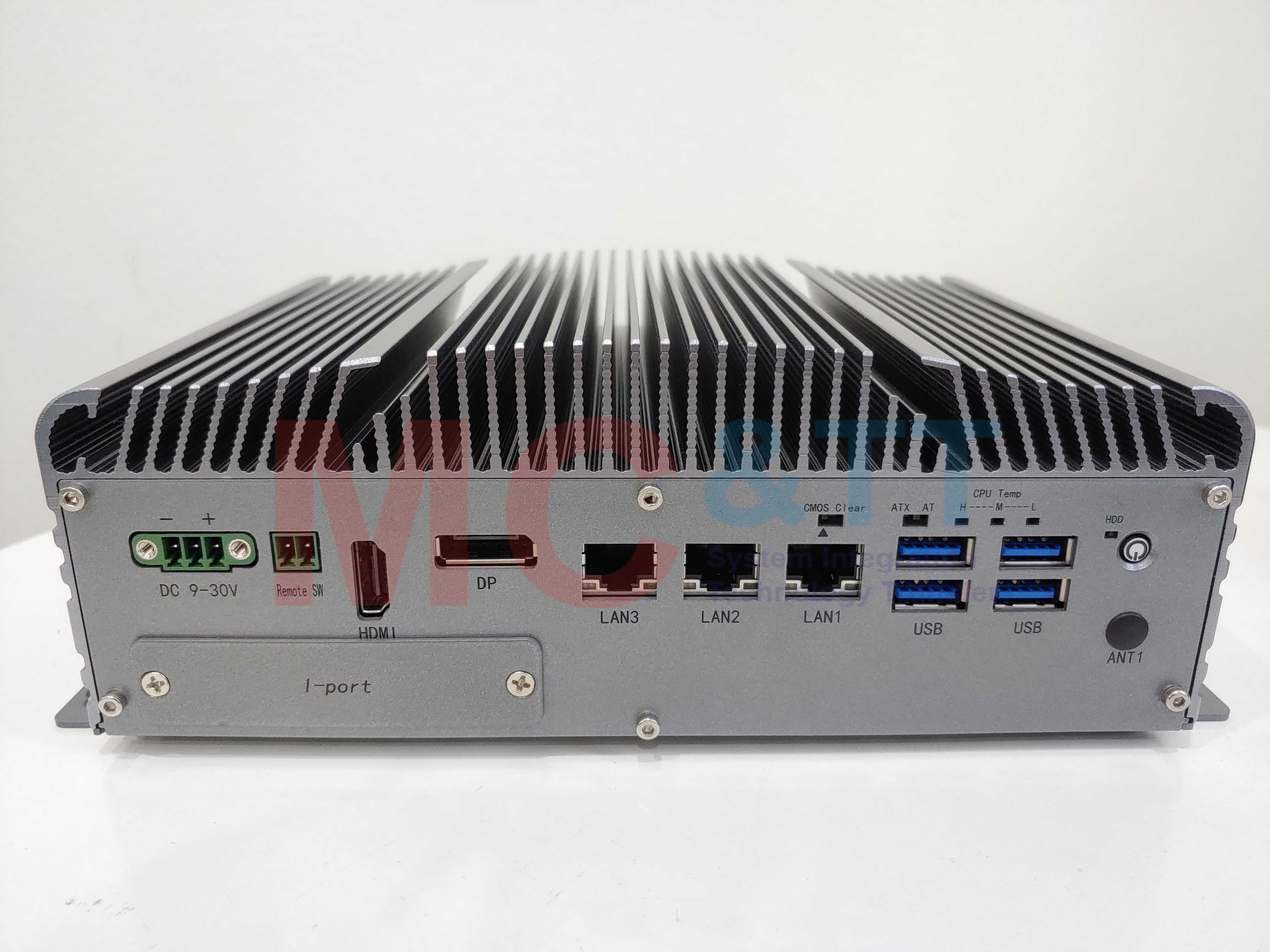

| I/O Interface |
3*Rq45 w/LED Gig-LAu (Front)
4*USB3.0 Type A (Front); 2*USB2.0 Type A (Rear) ,1*USB2.0 Type A (Inside)
8bit DIOa2*5-pin ter.(Rear)

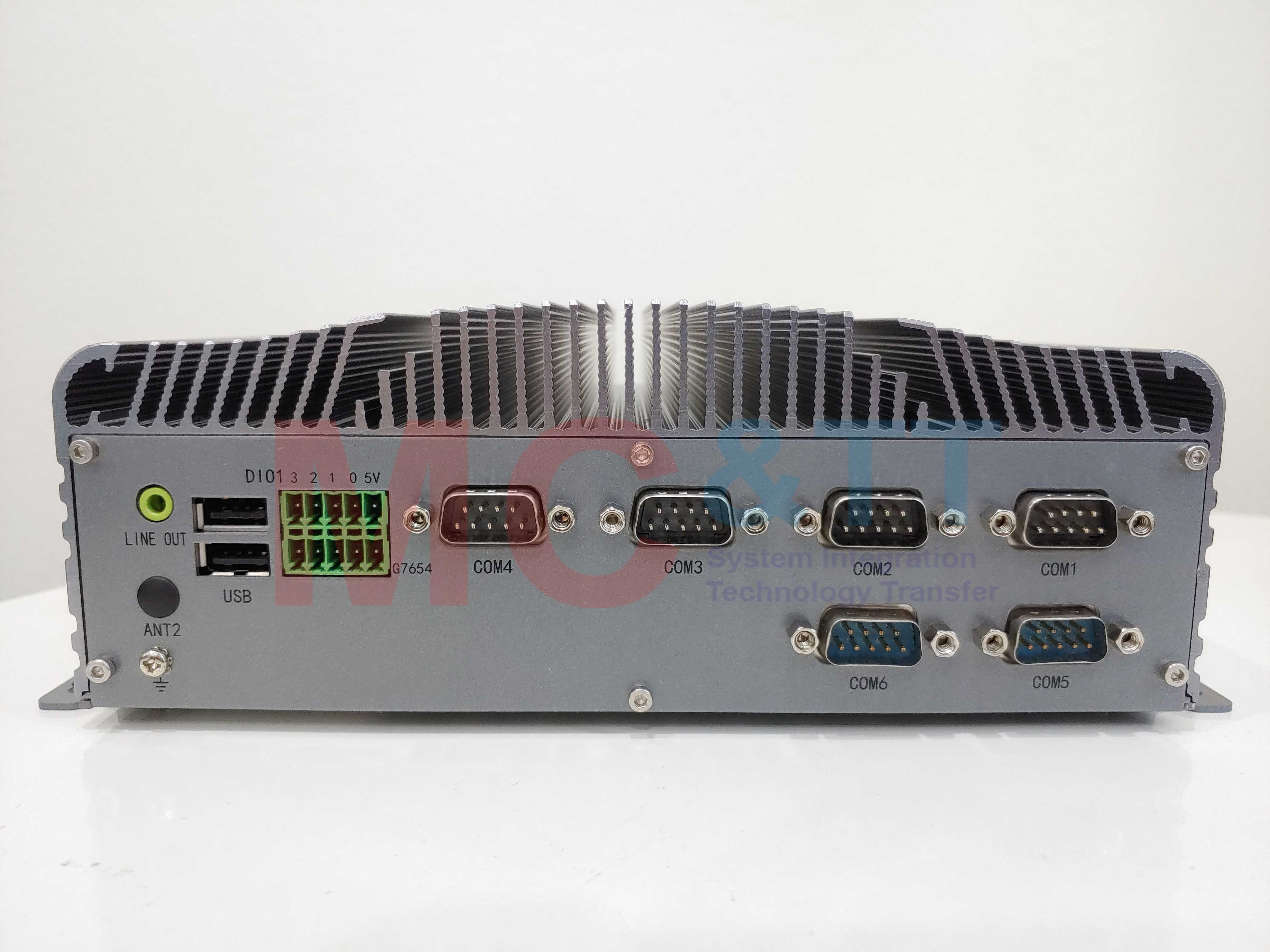

2*RS232/422/485 DB9 male (Rear), 4*RS232 DB9 male (Rear)
1*Audio-out 3.5mm phone jack(Rear)
1*HDMI(Front) +1*DP (Front) |
| Power supply |
DC 9~30V Input, 3-pin ter. (Front), short circuit, overvoltage and overcurren, TDP: 12V/2.31A |
| Watchdog timer |
Watchdog timeout programmable via software 1 to 255 second |
| OS |
Windows 7, Windows 8.1, Windows 10, Linux Fedora Ubuntu |
| Mechanical |
aluminum chassis, SGCC frame |
| Color |
Silvery |
| Mounting |
Desktop mounting |
| Dimension |
side (W*H*D)：210*144.3*75.5mm |
| Net weight |
2.2KG |
| Operating temperature |
-20°C～70°C – Fanless with wide operating temp. SSD, Airflow
-10°C～55°C – Fanless with HDD, Airflow |
| Storage temperature |
-40°C~85°C |
| Storage humidity |
10~90%@40°C, Non-condensing |
| Vibration |
5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
| Shock |
50g peak acceleration (11ms duration)(SSD); 20g peak acceleration (11ms duration)(HDD） |
| EMC and Certification |
CE/FCC Class A |
Thông tin đặt hàng
Fanless Box Computer, Intel I5-6200U/I5-7200U CPU, 8GB DDR4, 3*LAN, 4*USB3.0, 3*USB2.0, 6*COM, 8bit DIO, 1 *Mini PCIe, 1*M.2, 1*HDMI, 1*DP , Audio out, 1*I-port, 1*2.5″ driver bay, 1*mSATA, DC 9~30V
