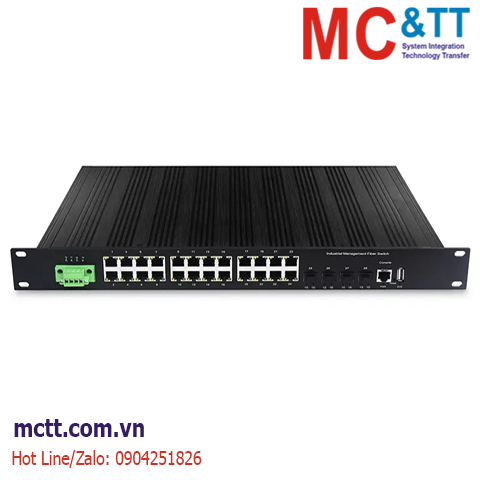

Switch công nghiệp quản lý 24 cổng Gigabit PoE + 4 cổng 10G SFP+ JHA Tech JHA-MIWS4G024HP

Chia sẻ:
Mã sản phẩm: JHA-MIWS4G024HP
Thương hiệu: JHA TECH
Tình trạng:

28-port Managed Industrial Ethernet Switch, with 4 1G/10G SFP+ Slot and 24 10/100/1000Base-T(X) IEEE802.3af/at PoE/PoE+ Port

Liên hệ
Mô tả

Switch công nghiệp quản lý 24 cổng Gigabit PoE + 4 cổng 10G SFP+ JHA Tech JHA-MIWS4G024HP

JHA-MIWS4G024HP series switches support Layer 3 routing protocols that include Static Routing, RIP, OSPF and VRRP, helping to build scalable, reliable networks. Multicast routing protocols such as PIM-SM and PIM-DM guarantee efficient routing for multicast groups.

JHA-MIWS4G024HP Series switches support up to 8 switches for network simplification. With different port forms including Gigabit Ethernet, SFP Slots, 10G SFP+ Slots, JHA-MIWS4G024HP Series switches are capable of high switching capacity for the network. With all units identified by a simple IP address, the stack can be easily configured and monitored.

JHA-MIWS4G024HP series switches provide 3 kinds of out-of-band management ports: RJ45 console ports, Micro-USB console ports and RJ45 out-of-band management ports. Micro-USB console ports are designed for those laptop computers which do not support the RS232 (DB9) interface. Customers can use a USB cable to manage switches through the CLI (command-line interface). The RJ45 out-of-band management port is used solely for web management, leaving the RJ45 ports free for data transmission.

Tính năng

  • Support 4 1G/10G SFP+ slot and 24 10/100/1000Base-T(X) PoE port managed industrial PoE switch, L2/L3 Optional
  • Support G.8032(ERPS), IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.3ab, IEEE802.1p, IEEE802.1x, IEEE802.1Q, IGMP Snooping, IPv4/IPv6 precedence
  • Support CLI, SNMP, WEB management, Console/Telnet command-line management and syslog, using self-developed ring network technology, recovery time <20ms
  • DC48~72V redundancy power, reverse polarity protection

Thông số kỹ thuật

Hardware Features & Performance

Model

JHA-MIWS4G024HP

General

Standard and Protocols

IEEE 802.3af/at

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX/FX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

IEEE 802.3ae 10GBASE-SR/LR

IEEE 802.3av GVRP

IEEE 802.3x Flow control

IEEE 802.3ad Link Aggregation

IEEE 802.1v Protocol VLAN

IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Rapid Spanning Tree (RSTP) IEEE 802.1w Multiple Spanning Tree (MSTP) IEEE 802.1q VLANs / VLAN tagging

IEEE 802.1x Network Login Security

IEEE 802.1p QoS

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF

10GBASE-LR

10GBASE-SR



Interfaces

24 10/100/1000Mbps POE ports

4 10G SFP+Slots

1 RJ45 Console Port

1 Micro-USB Console Port

Performance

Switching Capacity

128Gbps

Packet Forwarding Rate

95.3Mpps

MAC Address Table

32K

Flash memory capacity

256MB

The memory capacity

2G

Jumbo Frame

12KB

PoE Support

PoE port

24

PoE protocol

802.3af, 802.3at

PoE pinout

1,2,3,6

PoE management mode

Supported

Physical& Environment

Certification

CE, FCC

Power Supply

DC48~72V/AC 100-240V 50-60HZ

Max Power Consumption

450W (220V/50Hz)

Max Heat Dissipation

220.69 BTU/h

Dimensions (W × D × H)

17.3 × 16.5 × 1.7 in. (440 × 250 × 44 mm)

Fan design

No fan design, natural heat dissipation

Operating Temperature

-40℃~+85℃

Storage Temperature

-40℃~+85℃

Operating Humidity

5%~95% does not support condensation (non-condensing)

Storage Humidity

5%~95% does not support condensation (non-condensing)

Physical Stacking

Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables



Software Features

L3 Features

-L3 Routing

*128 IPv4 Interface entries

*256 IPv4 Static Routing entries

*8K IPv4 Dynamic Routing entries

-RIP v1, v2

-OSPF v1, v2,V3

-IGMP v1, v2, v3

-Multicast Routing

*Static Multicast Route

*PIM-DM/SM

-ARP Proxy

-DHCP Server/Relay

-VRRP

-BFD

L2 Features

-Link Aggregation

*static link aggregation

*802.3ad LACP

*Up to 64 aggregation groups, containing 8 ports per group

-Spanning Tree Protocol

*802.1D STP

*802.1w RSTP

*802.1s MSTP

*32 MSTP Instance

*STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect

-Loopback Detection

-Flow Control

*802.3x Flow Control

-Port Mirroring

*One-to-One

*Many-to-One

*Flow-Based

*Tx/Rx/Both

-LLDP, LLDP-MED

L2 Multicast

-1024 IGMP groups

-IGMP Snooping

*IGMP v1/v2/v3 Snooping

*IGMP Fast Leave

*MVR

*IGMP Snooping Querier

*Limited IP Multicast

*Static Multicast Forwarding

-MLD Snooping

*MLD v1/v2 Snooping

*MLD Snooping Querier

*Fast Leave

*Limited IP Multicast

*Static Multicast Forwarding

VLAN

-VLAN Group

*4K VLAN Groups

-802.1Q tag VLAN

-MAC VLAN

-Protocol VLAN

-VLAN VPN (QinQ)

-GVRP

-Private VLAN

QoS

-Class of Service

*Port Priority

*802.1p CoS/DSCP priority

*8 Priority Queues

*Queue Schedule Mode

-Bandwidth Control

*Port/Flow based Rating Limiting

*Storm Control

-Diffserv

*Diffserv Class

*Diffserv Policy

*Diffserv Service

-Auto-VoIP

-Voice VLAN

ACL

-Supports up to 3328 entries

-MAC ACL

*Source MAC

*Destination MAC

*VLAN ID

*User Priority

*EtherType

-Standard IP ACL

*Source IP

*Destination IP

-Time based ACL

-Extended IP ACL

*Source IP

*Destination IP

*Fragment

*IP Protocol

*TCP Flag

*TCP/UDP Port

*DSCP/IP TOS

Security

-AAA

-DHCP Snooping

-IP-MAC-Port Binding:Up to 32768 entries

-ARP Inspection:Up to 32768 entries

-IP Source Guard:Up to 1020 entries

-Static/Dynamic Port Security

-Up to 64 MAC addresses per port

-Broadcast/Multicast/Unicast Storm Control

*kbps/ratio/pps control mode

-IP/Port/MAC based access control

-DoS Defend

-802.1X

*Port based authentication

*MAC(Host) based authentication

*Guest VLAN

*Support Radius authentication and accountability

-Port Isolation

-MAC Filtering

-Secure web management through HTTPS with SSLv3/TLS1.0

-Secure Command Line Interface(CLI) management with SSHv1/SSHv2

Management

-Web-based GUI

-Command Line Interface(CLI) through console port, telnet

-SNMPv1/v2c/v3

-SNMP Trap/Inform

-RMON (1,2,3,9 groups)

-DHCP Option82

-CPU Monitoring

-Cable Diagnostics

-Access Control

-SNTP

-System Log

-Dual Image

-IPv6 Management

-PPPoE Circuit ID

-HTTP/TFTP File Transfer

MIBs

-MIB II (RFC1213)

-Interface MIB (RFC2233)

-Ethernet Interface MIB (RFC1643)

-Bridge MIB (RFC1493)

-P/Q-Bridge MIB (RFC2674)

-RMON MIB (RFC2819)

-RMON2 MIB (RFC2021)

-Radius Accounting Client MIB (RFC2620)

-Radius Authentication Client MIB (RFC2618)

-Remote Ping, Traceroute MIB (RFC2925)

-Support JHA private MIBs
