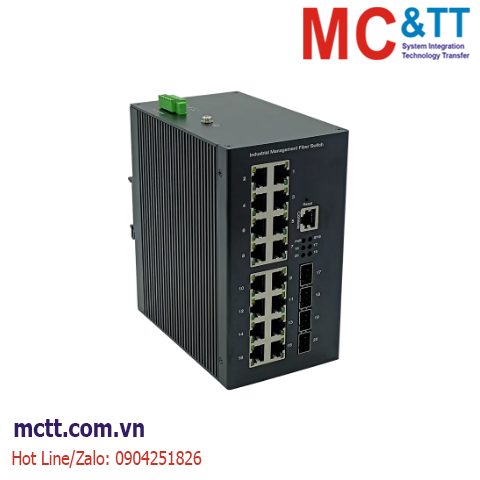

Switch công nghiệp quản lý 16 cổng Gigabit PoE + 4 cổng 1G/10G SFP JHA Tech JHA-MIWS4G016HP
JHA-MIWS4G016HP is a high performance, cost-effective high-end managed industrial Ethernet switch. The switch provides 16 10/100/1000Base-T(X) POE port and 4 1G/10G SFP+ Slot. In full compliance with industrial product design and materials, the shell is made of aluminum alloy to enhance heat dissipation performance. Through fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides high/low temperature resistance, lightning protection and other excellent industrial grade Quality; support WEB management, VLAN, QoS, SNMP, IGMP snooping and other network functions; support Ethernet fast ring network protection previous STP/RSTP/MSTP spanning tree ring network; industrial-grade three-level ESD protection is suitable for many occasions , such as intelligent transportation, outdoor monitoring, industrial network, safe city and other harsh environment deployments require that the product also adopts fanless, low power consumption, industrial-grade design, and the operating temperature range of -40 to 85°C, which can meet various industrial On-site requirements, providing economical solutions. The device can be widely used in various broadband data transmission fields such as smart buildings, smart cities, smart communities, smart transportation, telecommunications, security, financial securities, customs, shipping, electric power, water conservancy and oil fields.
Tính năng
- Support 4 1G/10G SFP+ Slot and 16 10/100/1000Base-T(X) Ethernet port
- DC10-55V redundancy power, reverse polarity protection
- IP40 rated aluminum alloy housing, DIN-Rail mounted
- Support G.8032(ERPS), IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.3ab, IEEE802.1p, IEEE802.1x, IEEE802.1Q, IGMP Snooping, IPv4/IPv6 precedence
- Support CLI, SNMP, WEB management, Console/Telnet command-line management and syslog, using self-developed ring network technology, recovery time <20ms
Thông số kỹ thuật
|
Interface |
|
Fiber Port |
4*1G/10G SFP+ Slot |
|
Ethernet Port |
16*10/100/1000 Base－T |
|
Manage Port |
1*RJ45 Console port |
|
Power connector |
5P Phoenix terminal, dual power supply redundancy |
|
LED Indicator |
PWR (green);
System indicator:SYS(green);
Network port indicator:Yellow(Link)/Green (Speed)/Green(Fiber L/A) |
|
Cable type and distance |
|
Twisted pair cable |
0-100m (CAT5e, CAT6) |
|
Single-mode fiber |
20/40/60/80/100KM |
|
Multimode fiber |
550m/2KM |
|
Optical fiber interface |
LC/SC |
|
Network topology & scale |
|
Ring topology |
Support |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree topology |
Support |
|
Hybrid topology |
Support |
|
Electrical characteristics |
|
Input voltage |
DC10-55V/AC 100-240V 50-60HZ
DC48-58V(POE type) |
|
Power consumption |
Non-POE full load (Total power) <20W
POE type:IEEE802.3af max 15.4w, IEEE802.3at max 30w. |
|
L2 Features |
|
Exchange capacity |
96G |
|
Packet forwarding rate |
64.23Mpps |
|
MAC address table |
16K |
|
VLAN support and quantity |
Support 4K |
|
Report buffer |
12M |
|
Forwarding delay |
<10us |
|
Port characteristics |
Cross-connect and direct-adaptive |
|
Flow control |
Support |
|
Jumbo frame support |
Support 10Kbytes |
|
Spanning Tree Protocol |
Support STP/RSTP/MSTP |
|
Ring network protocol |
Support ERPS |
|
Link aggregation |
Support 16 groups |
|
Multicast |
Support IGMP Snooping |
|
Port mirroring |
Support |
|
Storm suppression |
Support |
|
Port traffic statistics |
Support |
|
Port flow system |
Support |
|
QINQ |
Support |
|
Protection |
Shell: IP40 protection, aluminum alloy housing
IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us)
IEC 61000-4-3 Level 3 (10V/m)
IEC 61000-4-4 Level 3 (1V/2V)
IEC 61000-4-6 Level 3 (10V/m)
IEC 61000-4-8 Level4 (30A/m)
IEC 61000-4-11 Level3 (10V)
EMI CLASS A
IEC 61000-4-2 Level 4 (15KV/30KV)
Free fall 0.5m |
|
Convergence Service |
|
ACL |
Support 500 ACLs;
Support IP standard ACL;
Support MAC extended ACL;
Support IP extended ACL; |
|
QoS |
Support QoS re-marking and priority mapping;
Support SP, WRR queue scheduling;
Support entry speed limit and exit speed limit;
Support flow-based QoS |
|
Management function |
|
Command line |
Support |
|
Management serial port |
Support |
|
Telnet |
Support |
|
WEB management |
Support |
|
SNMP |
Support SNMPv1/v2c |
|
User management |
Support |
|
System log |
Support |
|
File upgrade |
Support |
|
Firmware upgrade |
Support |
|
SFP module DDM |
Support |
|
Environmental conditions |
|
Working temperature |
-40℃~+85℃ |
|
Storage/transport temperature |
-40℃~+85℃ |
|
Relative humidity |
5%~95% does not support condensation (non-condensing) |
|
Cooling method |
No fan design, natural heat dissipation |
|
MTBF |
100,000 hours |
|
Mechanical structure |
|
Size |
142X160X88mm |
|
Installation method |
DIN Rail Installation |
|
Weight |
1.5KG |
Download
Datasheet
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-MIWS4G016H |
Managed Industrial Ethernet Switch, 4 1G/10G SFP+ Slot and 16 10/100/1000Base-T(X), DIN-Rail, DC10-55V, -40-85°C Operating Temperature |
|
JHA-MIWS4G016HP |
Managed Industrial PoE Switch, 4 1G/10G SFP+ Slot and 16 10/100/1000Base-T(X) PoE/PoE+, DIN-Rail, DC48-58V, -40-85°C Operating Temperature |
|
Power Supply:
DC24V DIN-Rail Power Supply or Power Adapter is Optional.
DC48V DIN-Rail Power Supply or Power Adapter is Optional. |
