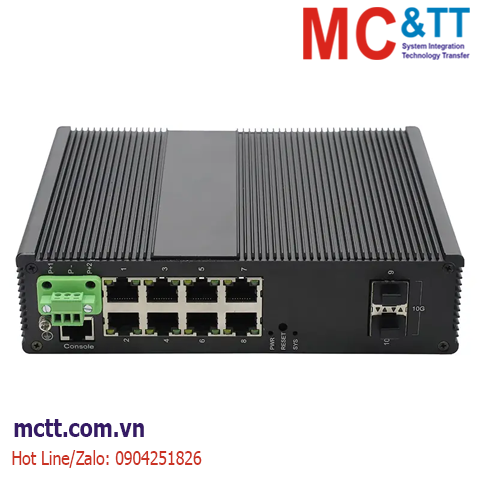

Switch công nghiệp quản lý 8 cổng Gigabit PoE + 2 cổng 1G/10G SFP JHA Tech JHA-MIWS2G08HP
The JHA-MIWS2G08H series is a high-performance, cost-effective, high-end intelligent gigabit managed ring network industrial-grade optical fiber switch. Support 2 10G optical ports (SFP slots) + 8 10/100/1000Base-T(X) port. It adopts the self-developed JHA-RING ring network technology (network failure self-healing time <20ms), users can easily set a redundant ring network to increase network reliability, and also supports CLI, SNMP, WEB, VLAN management, support Console/Telnet command line management. Rich QoS features for data flow control and management, support ring protocol, RSTP and STP Ethernet redundancy, support port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol. The product also uses fanless, low power consumption, industrial-grade design, can adapt to harsh industrial environments, and has an operating temperature range of -40 to 85°C, which can meet the requirements of various industrial sites.
Tính năng
- Support 8 10/100/1000Base-T(X) port and 2 1G/10G SFP+ Slot and 1 Console Port.
- Rich QoS features for data flow control and management, support ring protocol, RSTP and STP Ethernet redundancy, support port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol.
- Support CLI, SNMP, WEB VLAN management, Console/Telnet command-line management and syslog, using self-developed ring network technology, recovery time <20ms.
- DC10-58V redundancy power, reverse polarity protection.
- Industrial grade 4 design, -40-85°C operating temperature.
- IP40 rated aluminum alloy housing, DIN-Rail mounted
Thông số kỹ thuật
|
Interface |
|
Fiber Port |
2*10G SFP+ |
|
Ethernet Port |
8*10/100/1000 Base－T |
|
Manage Port |
1*RJ45 Console port |
|
Power connector |
3P Phoenix terminal, dual power supply redundancy |
|
LED Indicator |
PWR (green);
System indicator:SYS(green);
Network port indicator:yellow(1000 or POE) Green (Link) |
|
Cable type and distance |
|
Twisted pair cable |
0-100m (CAT5e, CAT6) |
|
Single-mode fiber |
20/40/60/80/100KM |
|
Multimode fiber |
550m/2KM |
|
Optical fiber interface |
LC/SC |
|
Network topology & scale |
|
Ring topology |
Support |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree topology |
Support |
|
Hybrid topology |
Support |
|
Electrical characteristics |
|
Input voltage |
DC10-58V/DC48-58V |
|
Power consumption |
Non-POE full load (Total power) <10W
POE full load <132W |
|
PoE Support(Optional) |
|
PoE ports |
1-8 |
|
PoE protocol |
802.3af, 802.3at |
|
PoE pin assignment |
1,2,3,6 |
|
PoE management mode |
Support |
|
L2 Features |
|
Exchange capacity |
64G |
|
Packet forwarding rate |
47.6Mpps |
|
MAC address table |
16K |
|
VLAN support and quantity |
Support 4K |
|
Report buffer |
12M |
|
Forwarding delay |
<10us |
|
Port characteristics |
Cross-connect and direct-adaptive |
|
Flow control |
Support |
|
Jumbo frame support |
Support10Kbytes |
|
Spanning Tree Protocol |
Support STP/RSTP/MSTP |
|
Ring network protocol |
Support ERPS |
|
Link aggregation |
Support 12 groups |
|
Multicast |
Support IGMP Snooping |
|
Port mirroring |
Support |
|
Storm suppression |
Support |
|
Port traffic statistics |
Support |
|
Port flow system |
Support |
|
QINQ |
Support |
|
Protection |
Shell: IP40 protection, aluminum alloy housing
IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us)
IEC 61000-4-3 Level 3 (10V/m)
IEC 61000-4-4 Level 3 (1V/2V)
IEC 61000-4-6 Level 3 (10V/m)
IEC 61000-4-8 Level4 (30A/m)
IEC 61000-4-11 Level3 (10V)
EMI CLASS A
IEC 61000-4-2 Level 4 (15KV/30KV)
Free fall 0.5m |
|
Convergence Service |
|
ACL |
Support 500 ACLs;
Support IP standard ACL;
Support MAC extended ACL;
Support IP extended ACL; |
|
QoS |
Support QoS re-marking and priority mapping;
Support SP, WRR queue scheduling;
Support entry speed limit and exit speed limit;
Support flow-based QoS |
|
Management function |
|
Command line |
Support |
|
Management serial port |
Support |
|
Telnet |
Support |
|
WEB management |
Support |
|
SNMP |
Support SNMPv1/v2c |
|
User management |
Support |
|
System log |
Support |
|
File upgrade |
Support |
|
Firmware upgrade |
Support |
|
SFP module DDM |
Support |
|
Environmental conditions |
|
Working temperature |
-40℃~+85℃ |
|
Storage/transport temperature |
-40℃~+85℃ |
|
Relative humidity |
5%~95% does not support condensation (non-condensing) |
|
Cooling method |
No fan design, natural heat dissipation |
|
MTBF |
100,000 hours |
|
Mechanical structure |
|
Size |
181X146X47mm |
|
Installation method |
DIN Rail Installation |
|
Weight |
1KG |
Download
Datasheet
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-MIWS2G08H |
Managed Industrial Ethernet Switch, 2 10G SFP+ Slot and 8 10/100/1000Base-T(X), DIN-Rail, DC10-58V, -40-85°C Operating Temperature |
|
JHA-MIWS2G08HP |
Managed Industrial PoE Switch, 2 10G SFP+ Slot and 8 10/100/1000Base-T(X) PoE/PoE+ DIN-Rail, DC48-58V, -40-85°C Operating Temperature |
|
Power Supply:
DC24V DIN-Rail Power Supply or Power Adapter is Optional. (Non-PoE)
DC48V DIN-Rail Power Supply or Power Adapter is Optional. (PoE) |
