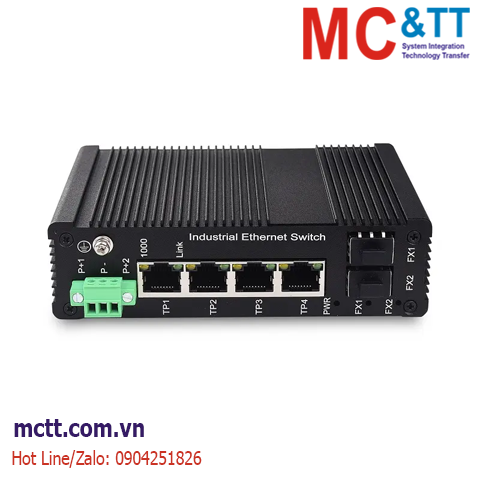

Switch công nghiệp quản lý 4 cổng Gigabit PoE + 2 cổng Gigabit SFP JHA Tech JHA-MIGS24HP-WEB
JHA-MIGS24HP-WEB is a smart Web managed industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dust-proof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.
JHA-MIGS24HP-WEB support 2 1000Base-X SFP fiber port and 4 10/100/1000Base-T(X) PoE port. It support CE, FCC, RoHS standard, rugged high-strength metal case, power input (DC48-55V). The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X), full/half-duplex, and MDI/MDI-X auto-adaptation, the -40-85℃ operating temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.
Tính năng
- Support 2 1000Base-X SFP Port and 4 10/100/1000Base-T(X) Ethernet, PoE Support (Optional)
- Support IEEE802.3, IEEE802.3u, IEEE802.3x.
- Plug-and-play,10/100/1000Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation.
- Industrial chip design, 15kV ESD protection, 8kV surge protection.
- DC10-55V redundancy power, reverse polarity protection.
- Industrial grade 4 design, -40-85°C operating temperature.
- IP40 rated aluminum alloy housing, DIN-Rail mounted
Thông số kỹ thuật
|
Fixed port |
4 10 / 100 / 10000base TX RJ45 ports (data)
2 x 1000m SFP
1 reset* restore factory configuration button |
|
Port characteristics |
10 / 100 / 1000baset (x) automatic detection, full / half duplex MDI / mdi-x adaptive |
|
Function switch |
DUMP： Common network sharing
WEB: SMART WEB management |
|
Forwarding mode |
Store and forward (full line speed) |
|
backplane bandwidth |
12Gbps （No blocking） |
|
Packet forwarding rate |
8.93Mpps |
|
MAC address |
Support 4K |
|
Cache |
32K |
|
Network protocol |
IEEE 802.3,802.3i,802.3u,802.3x,802.3ab,802.3z |
|
Twisted pair transmission |
10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(150 meter)
1000BASE-TX ： Cat6 or later UTP(150 meter) |
|
LED indicator |
Power: power indicator
5 6: (optical port connection indicator)
1-4Port: (Gree:Link ; Orange:1000M Speed) |
|
Overall power consumption |
Full load maximum 5W |
|
Supporting power supply |
DC10-55V/AC 100-240V 50-60HZ |
|
Operating temperature / humidity |
-40～+85°C；5%～90% RH No condensation |
|
Storage temperature / humidity |
-40～+85°C；5%～95% RH No condensation |
|
Product size |
130*94*35mm |
|
Net weight |
0.75kg |
|
Installation mode |
Desktop type (optional with wall hanging + rack lug accessories) |
|
Lightning protection / protection grade |
Port lightning protection: 3KV 8 / 20us;
Protection grade: IP30 |
|
PoE Support(Optional) |
PoE ports:1-4 |
|
PoE protocol:802.3af, 802.3at |
|
PoE pin assignment:1,2,3,6 |
|
PoE Power:DC48-55V |
|
Safety certification |
IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us)
IEC 61000-4-3 Level 3 (10V/m)
IEC 61000-4-2 Level 4 (15KV/30KV)
IEC 61000-4-4 Level 3 (1V/2V)
IEC 61000-4-6 Level 3 (10V/m)
IEC 61000-4-8 Level4 (30A/m)
IEC 61000-4-11 Level3 (10V)
EMI CLASS A
Free fall 0.5mCE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS； |
|
Software function list |
|
port configuration |
Support port on / off |
|
Support port flow control |
|
Support port rate control |
|
Support port name customization |
|
Layer 2 switching |
Support port address dynamic learning |
|
Support port aggregation |
|
IGMP V1 / V2 support |
|
Port Mirror |
Support traffic statistics |
|
Support local entrance / exit monitoring |
|
Support loopback detection and loop blocking |
|
VLAN |
Support 802.11Q VLAN、MTU VLAN、Port VLAN |
|
Service quality （Q0S） |
Supports 4 port queues |
|
Support port priority, 802.1p priority and DSCP priority |
|
Support port bandwidth control, port isolation, storm suppression, loop |
|
Support mega frame configuration |
|
Support, MAC limit |
|
PoE management |
Connected device power consumption, PoE on and off |
|
system management |
Support management through web pages |
|
System tools |
Support software upgrade |
|
Support configuration backup and recovery |
|
Support system restart and software reset |
Download
Datasheet
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-MIGS24H-WEB |
Web Managment Industrial Ethernet Switch, 2 1000Base-X SFP Slot, and 4 10/100/1000Base-T(X), DIN-Rail, DC10-58V, -40-85°C Operating Temperature |
|
JHA-MIGS24HP-WEB |
Web Managment Industrial PoE Switch, 2 1000Base-X SFP Slot and 4 10/100/1000Base-T(X) PoE/PoE+ , DIN-Rail, DC48-58V, -40-85°C Operating Temperature(1-4 port BT optional) |
|
Fiber Connector: SC/ST/FC/LC(SFP Slot), Single Mode/Multimode, Dual Fiber/Single Fiber, 2Km/20Km/40Km/60Km/80Km/100Km/120Km is Optional.
Power Supply:
DC24V DIN-Rail Power Supply or Power Adapter is Optional.
DC48V DIN-Rail Power Supply or Power Adapter is Optional(for PoE switch) |
