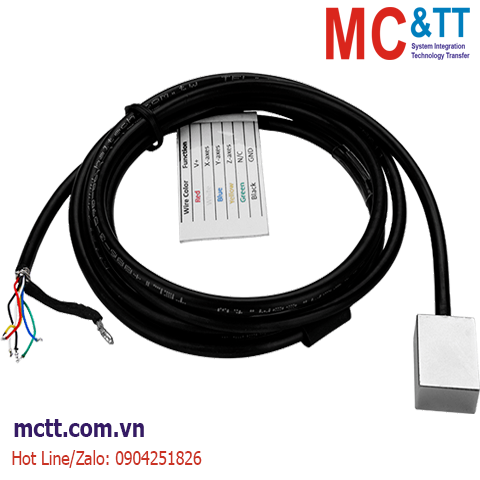

Cảm biến đo rung chấn (đo gia tốc) Accelerometer 3 trục ICP DAS iSN-703-F1-L015 CR
Feature
- 3 wire voltage accelerometer
- Triaxial design
- Measuring range is ±18g
- Frequency response ranges from 10Hz to 1kHz
Introduction
iSN-703-F1-L015 is a high sensitivity accelerometer, and it is also a triaxial accelerometer that simultaneously measures vibration in three orthogonal axes. This sensor is designed primarily for vibration analysis applications.
Application
- Industrial Automation
- Factory Automation
- Process Automation
- Etc…
Specifications
| Vibration Measurement |
| Axes |
3 |
| Sensor Type |
MEMS |
| Amplitude Range |
±18g |
| Frequency Range |
10Hz~1KHz |
| Sensitivity |
400mV/g per axis |
| Bais Voltage |
10±0.5VDC |
| Power |
| Input Range |
22~26VDC,3mA |
| Mechanical |
| Dimensions (mm) |
(15±0.05) x (21±0.05) x (8.5±0.05) (W x L x H) |
Download
Datasheet
Documents
Ordering Information
| iSN-703-F1-L015 CR |
3-axis accelerometer, Range 18g, Sensitivity 400mV/g, Frequency up to 1 kHz, includes 150 cm cable (RoHS) |
