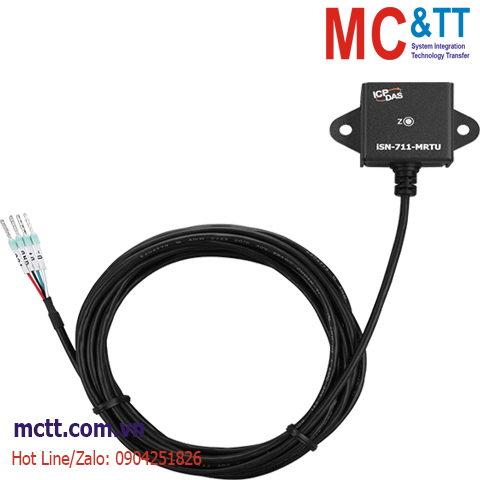

Module cảm biến đo rung, đo dao động 1 trục RS485 Modbus RTU ICP DAS iSN-711-MRTU CR
Feature
- 1-axis vibration measurement
- Frequency range: 10 Hz to 1K Hz
- Amplitude range: ±8g
- Data Format:
-Acceleration(mg): RMS, Maximum, P-P
-Velocity(mm/s): RMS
-Top 10 spectrum values(Amplitude/Frequency)
-Crest Factor
- Supported Modbus RTU Slave protocol
Introduction
The iSN-711-MRTU module is an intelligent vibration detection device. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the sensor’s data by RS-485 interface. The iSN-711-MRTU is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, and pumps, etc., where there is a need to monitor any vibration application.
Application
-
Vibration monitoring system
Specifications
| Vibration Measurement |
| Axes |
1 |
| Sensor Type |
MEMS |
| Amplitude Range |
±8g |
| Frequency Range |
10 Hz to 1K Hz |
| COM Ports |
| Ports |
1 x RS-485(D+, D-) |
| Baud Rate |
2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
Modbus RTU |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.3 W |
| Mechanical |
| Dimensions (mm) |
51 x 30 x 19 (W x L x H) |
| Installation |
Wall-mount or magnet adsorption |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iSN-711-MRTU CR |
Single axis vibration sensor module (RS-485)(RoHS) |
