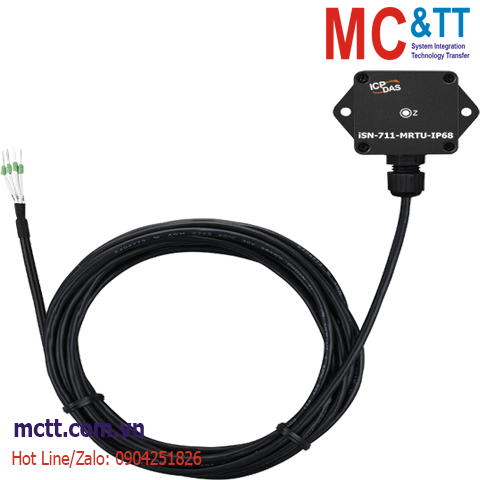

Module cảm biến đo rung, đo dao động 1 trục RS-485 Modbus RTU ICP DAS iSN-711-MRTU-IP68 CR
Feature
- Single-axis vibration measurement
- Frequency range: 10 Hz to 1K Hz
- Amplitude range: ±8g
- Data Format:
- - Acceleration(mg): RMS, Maximum, P-P
-Velocity(mm/s): RMS
-Top 10 spectrum values(Amplitude/Frequency)
-Crest Factor
- Supported Modbus RTU Slave protocol
- IP68 enclosure rating
Introduction
The iSN-711-MRTU-IP68 is designed for industrial vibration measurement applications in harsh environments. with the IP68 protection rating, the device has even more protection against water, oil, dust, and much more. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the Vibration measurement data by RS-485 interface. The iSN-711-MRTU-IP68 is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, pumps, etc., where there is a need to monitor any vibration application.
Application
-
Vibration monitoring system
Specifications
| Vibration Measurement |
| Axes |
1 |
| Sensor Type |
MEMS |
| Amplitude Range |
±8g |
| Frequency Range |
10 Hz to 1K Hz |
| COM Ports |
| Ports |
1 x RS-485(D+, D-) |
| Baud Rate |
9600, 19200, 38400, 57600, 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
Modbus RTU |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.3 W |
| Mechanical |
| Dimensions (mm) |
51 x 30 x 19 (W x L x H) |
| Installation |
Wall-mount or magnet adsorption |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iSN-711-MRTU-IP68 CR |
IP68 Single-axis vibration sensor module (RS-485)(RoHS) |
