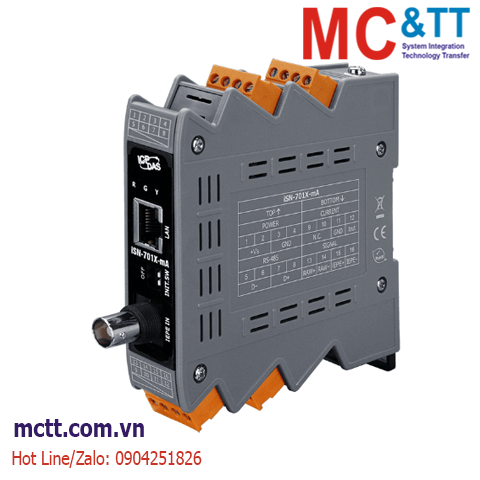

Bộ chuyển đổi tín hiệu cảm biến đo rung sang dòng + RS485/Ethernet Modbus RTU/TCP ICP DAS iSN-701X-mA CR
Feature
- 1-axis IEPE vibration measurement
- Suitable for high frequency vibration measurement
- LED indicators for sensor Normal/Open/Short
- Support Modbus TCP/RTU slave protocol
- Data Format:
- - Acceleration: RMS, Maximum, P-P
- Velocity: RMS
- Displacement: P-P
- Crest Factor
- Top 20 spectrum values(Magnitude/Frequency)
- Vibration eigenvalues threshold alarm function
- The conversion of vibration eigenvalues to current output, suitable for integration into controllers without communication interface
Introduction
The iSN-701X series module is a vibration signal converter with Ethernet and RS-485 communication interface. It has a built-in 4 mA excitation current to power the integrated electronic piezoelectric (IEPE) accelerometers and 24-bit A/D Converter. The iSN-701X series module converts the vibration signal into a variety of eigenvalues and provides a vibration eigenvalues threshold alarm function that sends an alarm when the eigenvalue exceeds the threshold value. Users can obtain the eigenvalues through the Modbus TCP/Modbus RTU. For controllers without communication interface, iSN-701X-mA can convert vibration eigenvalues to current value. The iSN-701X series module is recommended as your best choice for vibration monitoring and measurement.
Application
- Industrial Automation
- Factory Automation
- Process Automation
- Etc…
Specifications
| LED Indicators |
| Status |
1 X PWR
1 X IEPE
1 X DAQ |
| Analog Input |
| Channels |
1 |
| Type |
IEPE |
| Range |
±10 V |
| Resolution |
24 bit |
| Sampling Rate |
32, 64 (kHz) |
| Bandwidth |
6 Hz ~ 6.4 kHz |
| Excitation Current |
4 mA |
| Analog Output |
| Type |
Voltage x 1, Current x 1 |
| Range |
Voltage: ±10 V
Current: 0~20/4~20 mA |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| Protocol |
Modbus TCP |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
115200 bps Max. |
| Protocol |
Modbus RTU |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
2.5 W |
| Mechanical |
| Dimensions (mm) |
25 mm x 120 mm x 117 mm (W x L x H) |
| Installation |
Din-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| iSN-701X-mA CR |
Modbus TCP/RTU, Vibration signal to Current converter, 1 channel (RoHS) |
