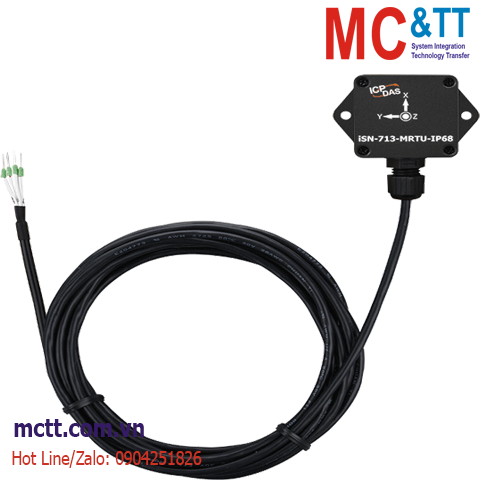

Module cảm biến đo rung, đo dao động 3 trục RS-485 Modbus RTU ICP DAS iSN-713-MRTU-IP68 CR

Chia sẻ:
Mã sản phẩm: iSN-713-MRTU-IP68
Thương hiệu: ICP DAS
Tình trạng:

IP68 Three-axis vibration sensor module (RS-485)

Liên hệ
Mô tả

Module cảm biến đo rung, đo dao động 3 trục RS-485 Modbus RTU ICP DAS iSN-713-MRTU-IP68 CR

Feature

  • Three-axis vibration measurement
  • Frequency range: 10 Hz to 1K Hz
  • Amplitude range: ±8g
  • Data Format:
  •   -Acceleration(mg): RMS, Maximum, P-P
      -Velocity(mm/s): RMS
      -Top 10 spectrum values(Amplitude/Frequency)
      -Crest Factor
  • Supported Modbus RTU Slave protocol
  • IP68 enclosure rating

Introduction

The iSN-713-MRTU-IP68 is designed for industrial vibration measurement applications in harsh environments. with the IP68 protection rating, the device has even more protection against water, oil, dust, and much more. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the Vibration measurement data by RS-485 interface. The iSN-713-MRTU-IP68 is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, pumps, etc., where there is a need to monitor any vibration application.

Application

  • Vibration monitoring system

Specifications

Vibration Measurement
Axes 3
Sensor Type MEMS
Amplitude Range ±8g
Frequency Range 10 Hz to 1K Hz
COM Ports
Ports 1 x RS-485(D+, D-)
Baud Rate 9600, 19200, 38400, 57600, 115200 bps
Data Format N, 8, 1
Protocol Modbus RTU
Power
Input Range +10 ~ +30 VDC
Consumption 0.3 W
Mechanical
Dimensions (mm) 51 x 30 x 19 (W x L x H)
Installation Wall-mount or magnet adsorption
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iSN-713-MRTU-IP68     CR  IP68 Three-axis vibration sensor module (RS-485) (RoHS)
