Bộ chuyển đổi tín hiệu cảm biến đo rung, đo dao động IEPE 2 kênh sang tương tự +/-10VDC ICP DAS SG-3227 CR

Chia sẻ:
Mã sản phẩm: SG-3227
Thương hiệu: ICP DAS
Tình trạng:

2-channel IEPE Input Signal Conditioner

Liên hệ
Mô tả

Bộ chuyển đổi tín hiệu cảm biến đo rung, đo dao động IEPE 2 kênh sang tương tự +/-10VDC ICP DAS SG-3227 CR

Feature

  • 2-channel Input
  • Individual Channel Configuration
  • Excitation Current Support: 2 mA/4mA/6mA/10mA
  • Signal Amplification of x1 , x10 and x100
  • LED Indicators for Sensor Open, Short and Normal

Introduction

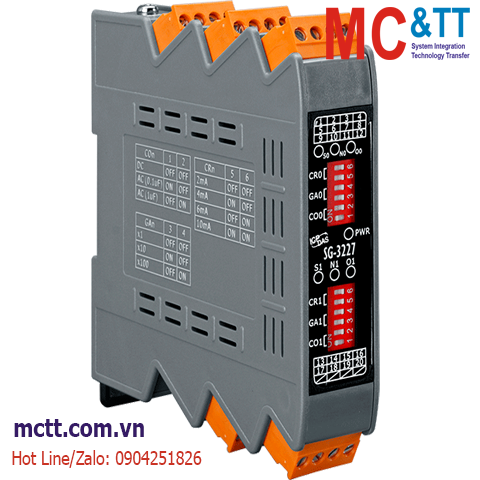

SG-3227 is a 2-channel IEPE accelerometer signal conditioning module. It has built-in 2 groups of DIP switches, which can be individually set for 2 channels. Provide 2mA/4mA/6mA/10mA excitation current to the accelerometer, and the built-in amplifier can provide x1/x10/x100 gain. LED lights can clearly show the status of the sensor is normal, open circuit or short circuit, to avoid wiring errors.

Application

Data Acquisition System
Remote Diagnosis
Vibration Measurement
Testing Equipment

Specifications

EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
Surge (IEC 61000-4-5) ±1 kV for Power Line
LED Indicators
Status 1 as Power Indicator
Yellow : Sensor Open
Green : Sensor Normal
Red : Sensor Short
IEPE
Channels 2
Excitation Current 2 mA/4 mA/6 mA/10 mA
Gain x1/x10/x100 for AC Coupling
Cut-off Frequency+ •Upper:
‣x1, x10 Gain: 80 kHz
‣x100 Gain: 50 kHz
•Lower:
‣AC Coupling (0.1uF): 1.6 Hz
‣AC Coupling (1uF): 0.2 Hz
Analog Output
Channels 2
Type Voltage
Range ±10 V
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 3 W
Mechanical
Dimensions (mm) 25 mm x 120 mm x 117 mm (W x L x H)
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

SG-3227     CR  2-channel IEPE Input Signal Conditioner (RoHS)
Includes CA-BNC001 (BNC adaptor) x 2
