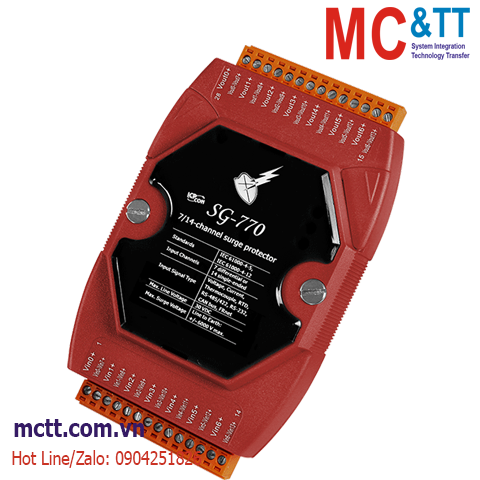

Thiết bị chống sét 7 kênh (Điện áp, dòng điện,cặp nhiệt, RTD, RS-232, RS-422/485, CAN bus) ICP DAS SG-770 CR
Feature
• IEC 61000-4-5, IEC 61000-4-12
• 6 kV Surge Protection
• Easily wire connection
Introduction
SG-770 offers 7 differential for surge protection. SG-770 is approved with IEC 61000-4-5 and IEC 61000-4-12 standards. Each of channels supports 0 V ~ ±30 V signal and each of channels is protected for surge achieves 6 kV.
Application
Voltage, Current, Thermocouple, RTD, RS-485 Surge Protection, CAN bus Surge Protection
Specifications
| EMC |
| Standard |
IEC 61000-4-5 (Surge): Line to Earth: +/- 6000V Max.
IEC 61000-4-12 (Surge): Line to Earth: +/- 6000V Max. |
| Analog Input |
| Channels |
7 differential |
| Type |
Voltage, Current, Thermocouple, RTD, RS-485/422, RS-232, CAN bus, FRnet |
| Range |
30 VDC |
| Mechanical |
| Dimensions (mm) |
73 x 120 x 35 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 °C ~ 75 °C |
| Storage Temperature |
-30 °C ~ 75 °C |
| Humidity |
5% ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| SG-770 CR |
7 channel Surge Protector (RoHS) |
