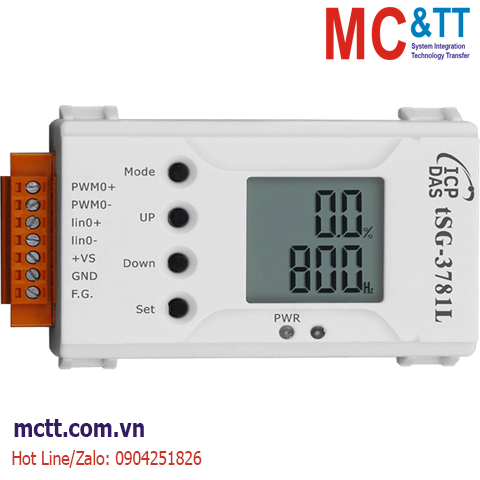

Bộ chuyển đổi 1 kênh tương tự sang 1 kênh xung PWM ICP DAS tSG-3781L CR
Feature
- Convert 1-channel 4 ~ 20mA Current Input to 1-channel PWM Output
- PWM output duty ratio converted by 4 ~ 20 mA Input
- PWM output frequency configured via push buttons
- LCD displays the PWM output duty ratio and frequency
Introduction
The tSG-3781L is a single-channel DC current input signal conditioning module that converts 4~20mA current input to PWM output. PWM output has a duty cycle of 0%~100% and performs a linear conversion of the 4~20mA current input. PWM output frequency is adjustable from 600Hz to 800Hz via push buttons. tSG-3781L includes a monochrome LCD display that shows the duty cycle and frequency of the PWM output signal.
Application
- Heating system in buildings
- Ventilation system
- Controlling servo-assisted diaphragm valve
Specifications
| Display |
| Type |
Monochrome Graphics LCD (26x26 mm Viewing Area) |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
1 |
| Range |
+4 ~ +20 mA |
| Accuracy |
±0.1% of full range |
| Bandwidth |
1 kHz |
| Input Impedance |
141 Ω |
| PWM |
| Channels |
1 |
| Type |
PWM |
| Sink/Source (NPN/PNP) |
Source |
| Load Current |
+24 VDC @ 1 A/Channel |
| Frequency |
600 ~ 800 Hz |
| Duty Cycle |
1 to 100% |
| Mode |
Continuous |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.2 W (Typ.)
22.0 W Max. (Note2) |
| Mechanical |
| Dimensions (mm) |
53 x 27 x 87 (W x L x H) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| tSG-3781L CR |
1-channel 4 ~ 20 mA Current Input / PWM Output Signal Conditioner (setting buttons are located at the left side) (RoHS) |
