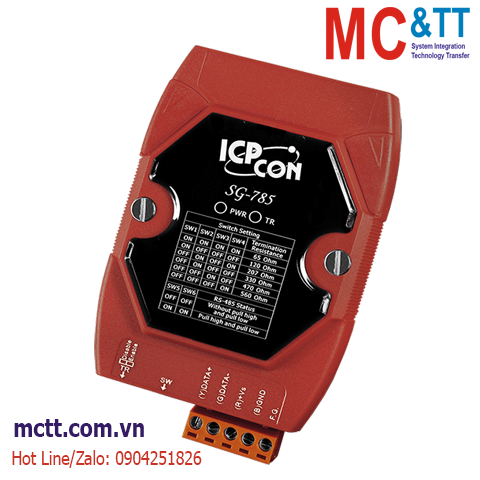

Thiết bị ổn định đường truyền RS-485 ICP DAS SG-785 CR
Feature
• Switch selectable pull-high/pull-low resistors
• 15-step switch selectable termination resistor
• LED Indicator for Power/Termination
• DIN-Rail mountable
Introduction
The SG-785 is an optional module that is used to improve the communication of RS-485 network. It provides switch selectable pull-high and pull-low resistors on RS-485 network. It also has 15-step switch selectable termination resistor such that the user can select a proper termination resistor to be connected to the RS-485 network easily.
Application
RS-485 signal pull-high/pull-low and long distance communication termination resistor setting.
Specifications
| LED Indicators |
| Status |
1 red LED as power indicator, 1 green LED as termination indicator |
| Analog Input |
| Range |
10 ~ 30 VDC |
| Misc. |
| Pull-high/Pull-low Resistors |
1k ohm |
| Termination Resistance |
15 steps, 65 ~ 560 ohm |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +80 °C |
| Humidity |
5% ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| SG-785 CR |
RS-485 pull-high/pull-low and termination resistors module (RoHS) |
