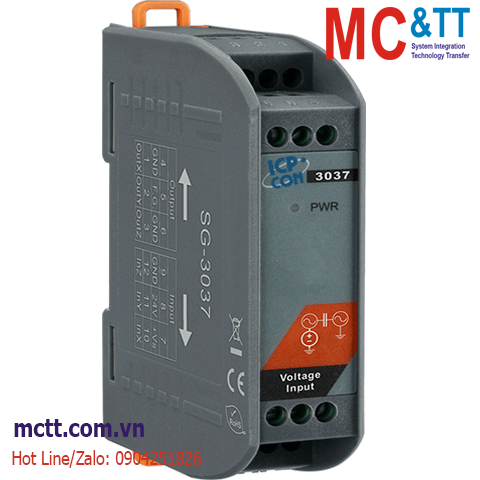

Bộ chuyển đổi tín hiệu cảm biến đo rung, đo dao động 3 trục sang tương tự +/-10VDC ICP DAS SG-3037-G CR
Feature
- 3-channel voltage input & output
- Input voltage range: 0-24V
- Provides signal bandwidth: 50 kHz
- Provides 24V power supply for the accelerometer
Introduction
SG-3037 is a Triaxial Signal Conditioner. SG-3037 with 3-channel analog inputs can connect to the voltage output accelerometer, and convert the signal measured from the accelerometer into the analog voltage output. PET-7H16M module collects the vibration data through SG-3037, and then send them via high-speed Ethernet to the data center for processing and analysis.
Application
Data Acquisition System
Remote Diagnosis
Vibration Measurement
Testing Equipment
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| Surge (IEC 61000-4-5) |
±1 kV for Power Line |
| LED Indicators |
| Status |
1 as Power Indicator |
| Analog Input |
| Channels |
3 |
| Type |
Voltage |
| Range |
0 ~ 24 VDC |
| Accuracy |
±5% of FSR |
| Bandwidth |
50 kHz |
| Analog Output |
| Channels |
3 |
| Type |
Voltage |
| Range |
±10 VDC |
| Excitation Voltage Output |
| Range |
24 VDC |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.5 W |
| Mechanical |
| Dimensions (mm) |
25 mm x 114 mm x 70 mm (W x L x H) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| SG-3037-G CR |
Triaxial signal conditioner for voltage output type accelerometer (RoHS) |
