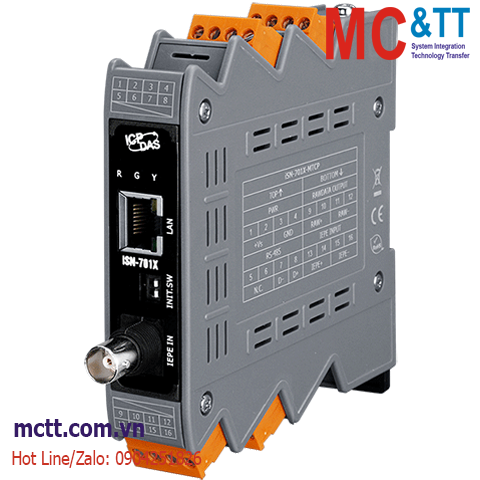

Bộ chuyển đổi tín hiệu cảm biến đo rung sang dòng + RS485/Ethernet Modbus RTU/TCP ICP DAS iSN-701X CR

Chia sẻ:
Mã sản phẩm: iSN-701X
Thương hiệu: ICP DAS
Tình trạng:

Vibration signal to Current converter

Liên hệ
Mô tả

Bộ chuyển đổi tín hiệu cảm biến đo rung sang dòng + RS485/Ethernet Modbus RTU/TCP ICP DAS iSN-701X CR

Feature

  • Built-in 4 mA excitation current
  • Support multiple sampling rate: 200kHz/100kHz/50kHz/20kHz/10kHz/5kHz
  • LED indicators for sensor open and normal
  • Data Format: RMS, Maximum, P-P, Crest Factor, FFT, Velocity
  • Support Modbus TCP/RTU slave protocol
  • Converts vibration signals into current signals representing multiple feature values

Introduction

iSN-701X is a vibration signal converter with Analog Output interface. It has a built-in 4 mA excitation current to power the integrated electronic piezoelectric (IEPE) accelerometers and 16-bit A/D Converter, and provide a sampling rate of up to 200kHz. iSN-701X converts Vibration signals into multiple feature values and then outputs current representing vibration feature values. Users also can obtain the feature values through the Modbus TCP/Modbus RTU. The iSN-701X module is recommended as your best choice for vibration monitoring and measurement

Application

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Specifications

LED Indicators
Status 1 X PWR
1 X IEPE
1 X DAQ
Analog Input
Channels 1
Type IEPE
Range Voltage: ±10 V
Current: 4 mA
Resolution 16 bit
Sampling Rate 5, 10, 20, 50, 100, 200 (kHz)
Analog Output
Channels 1
Type Current x 1
Range 0~20mA, 4~20mA (Software Selectable)
COM Ports
Ports 1 x RS-485
Baud Rate 115200 bps Max.
Protocol Modbus RTU
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
Protocol Modbus TCP
Power
Input Range +10 ~ +30 VDC
Consumption 4.3 W
Mechanical
Dimensions (mm) 25 mm x 120 mm x 117 mm (W x L x H)
Installation Din-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ 80 °C
Humidity 10 ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

iSN-701X     CR  Modbus TCP, Vibration signal to Current converter, 1 channel (RoHS)
