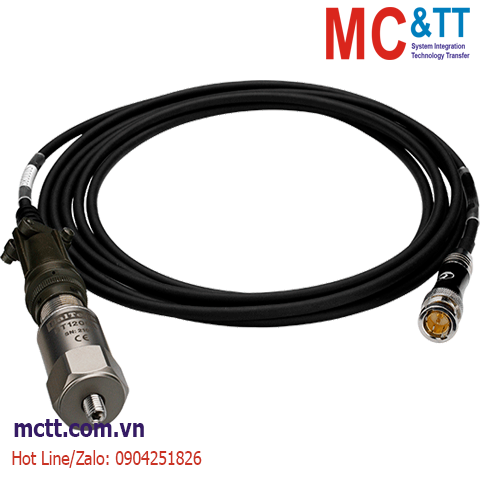

Cảm biến đo rung chấn (đo gia tốc) IEPE accelerometer 1 trục ICP DAS iSN-701-F15-L060 CR

Chia sẻ:
Mã sản phẩm: iSN-701-F15-L060
Thương hiệu: ICP DAS
Tình trạng:

1-axis Accelerometer

Liên hệ
Mô tả

Cảm biến đo rung chấn (đo gia tốc) IEPE accelerometer 1 trục ICP DAS iSN-701-F15-L060 CR

Feature

  • IEPE accelerometer
  • Homotaxial design
  • Measuring range is ±80g
  • Frequency response ranges from 0.5Hz to 15kHz

Introduction

iSN-701-F15-L060 is a high sensitivity accelerometer, and it is also a homotaxial IEPE accelerometer. This sensor is designed primarily for vibration analysis applications




Application

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Specifications

Vibration Measurement
Axes 1
Sensor Type IEPE
Amplitude Range ±80g
Frequency Range 0.5Hz~15kHz
Sensitivity 100mV/g
Bais Voltage 10~14VDC
Power
Input Range 18~30VDC,
2~10mA
Mechanical
Dimensions (mm) Ø22.9 x 53.3
Cable
Length 6m

Download

Datasheet

Documents

Ordering Information

iSN-701-F15-L060     CR  1-axis accelerometer, Range 80g, Sensitivity 100mV/g, Frequency up to 15 kHz, includes 600 cm cable (RoHS)
