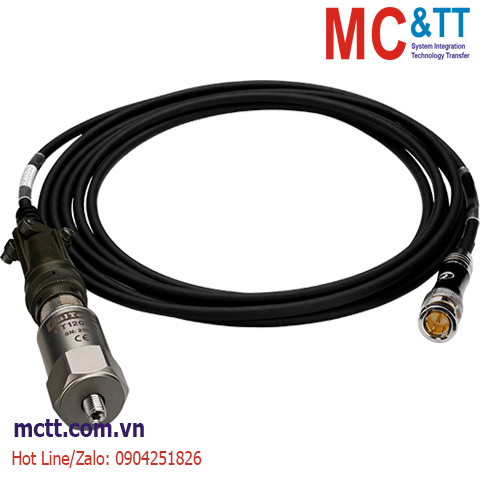

Cảm biến đo rung chấn (đo gia tốc) IEPE accelerometer 1 trục ICP DAS iSN-701-F15-L030 CR
Feature
- IEPE accelerometer
- Homotaxial design
- Measuring range is ±80g
- Frequency response ranges from 0.5Hz to 15kHz
Introduction
iSN-701-F15-L030 is a high sensitivity accelerometer, and it is also a homotaxial IEPE accelerometer. This sensor is designed primarily for vibration analysis applications.
Application
- Industrial Automation
- Factory Automation
- Process Automation
- Etc…
Specifications
| Vibration Measurement |
| Axes |
1 |
| Sensor Type |
IEPE |
| Amplitude Range |
±80g |
| Frequency Range |
0.5Hz~15kHz |
| Sensitivity |
100mV/g |
| Bais Voltage |
10~14VDC |
| Power |
| Input Range |
18~30VDC,
2~10mA |
| Mechanical |
| Dimensions (mm) |
Ø22.9 x 53.3 |
Download
Datasheet
Documents
Ordering Information
| iSN-701-F15-L030 CR |
1-axis accelerometer, Range 80g, Sensitivity 100mV/g, Frequency up to 15 kHz, includes 300 cm cable (RoHS) |
