Standard & Protocol |
IEEE 802.3 for 10Base-T Ethernet
IEEE 802.3u for 100Base-TX
IEEE 802.3z for 1000Base-X Fiber
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control and Back Pressure
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tag
IEEE802.1p for Class of Service (CoS)
IEEE 802.1X for 802.1X User Authentication
IEEE 802.1AB for Link Layer Discovery Protocol (LLDP)
ITU-T G.8032 for ERPS
IEEE 802.3ad for Link Aggregation Control Protocol (LACP)
IEEE 802.3af for PoE
IEEE 802.3at for PoE+ |
|
Management |
SNMP v1/v2c/v3, RMON, LLDP, PoE, QoS, DHCP Server, DHCP Snooping, port settings, dynamic/static MAC addresses, MAC/IPv4, storm suppression, user passwords, file management, log management, port statistics, link flapping protection, Modbus TCP monitoring |
|
Security |
User Privilege Classification, Port and Power Alarm, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, DC Power Supply Alarm, Email Alarm |
|
Switch Function |
802.1Q VLAN, link aggregation, static aggregation, LACP, bandwidth flow control |
|
Unicast / Multicast |
Multicast filtering, IGMP Snooping IGMPV1/V2/V3 |
|
Redundancy Technology |
Ring, STP/RSTP/MSTP, ERPS |
|
Troubleshooting |
Log record, port mirroring, Ping, Traceroute, network cable diagnosis, SFP DDM |
|
Time Management |
NTP, Time Zone Configuration |
|
PoE (optional) |
The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
|
Interface |
Gigabit Copper Port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE
Gigabit SFP: 1000Base-X SFP slot
Console port: CLI management port (RS-232), RJ45
Alarm port: support 1 relay alarm output, and adopt 6-pin 5.08mm pitch terminal blocks (relay occupies 2 pins) |
|
LED Indicator |
Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator, PoE Indicator |
|
Switch property |

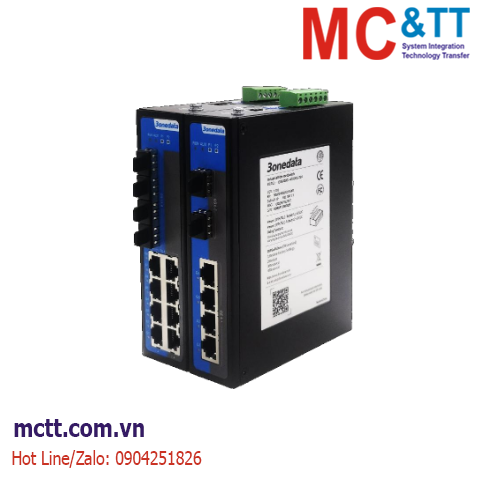

IES6300SL-4GT2GS-2LV, IES6300SL-4GP2GS-2LV
- Transmission mode: store and forward
- MAC address: 8K
- Cache: 4.1Mbit
- Backplane bandwidth: 20Gbps
- Switch time delay: <10μs
IES6300SL-8GT4GS-2LV, IES6300SL-8GP4GS-2LV, IES6300SL-16GT4GS-2LV, IES6300SL-16GP4GS-2LV
- Transmission mode: store and forward
- MAC address: 8K
- Cache: 4.1Mbit
- Backplane bandwidth: 56Gbps
- Switch time delay: <10μs
|
|
Power Supply |
IES6300SL-4GT2GS-2LV, IES6300SL-8GT4GS-2LV, IES6300SL-16GT4GS-2LV
- Power supply input: 12~60VDC, dual power supply redundancy
- Connection method: adopt 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
- Connection protection: support anti-reverse connection
IES6300SL-4GP2GS-2LV, IES6300SL-8GP4GS-2LV, IES6300SL-16GP4GS-2LV
- Power supply input: 44~57VDC, dual power supply redundancy
- Connection method: adopt 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
- Connection protection: support anti-reverse connection
|
|
Power Consumption |
IES6300SL-4GT2GS-2LV
- No-load: 3.6W@48VDC
- Full-load: 5.7W@48VDC (high temperature)
IES6300SL-8GT4GS-2LV
- No-load: 5.7W@48VDC
- Full-load: 10.1W@48VDC (high temperature)
IES6300SL-4GP2GS-2LV
- No-load: 3.3W@48VDC
- Full-load: 113.3W@48VDC
IES6300SL-8GP4GS-2LV
- No-load: 4.6W@48VDC
- Full-load: 229.3W@48VDC
IES6300SL-16GP4GS-2LV
- No-load: 7.5W@48VDC
- Full-load(without PoE): 16.1W@48VDC
- Full-load(PoE): 248.1W@48VDC
|
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Mechanical Structure |
IES6300SL-4GT2GS-2LV
- Housing: IP40 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 35mm×150mm×120mm
- Weight: 0.631kg
IES6300SL-8GT4GS-2LV
- Housing: IP40 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 40.6mm×150mm×120mm
- Weight: 0.678kg
IES6300SL-4GP2GS-2LV
- Housing: IP40 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 35mm×150mm×120mm
- Weight: 0.647kg
IES6300SL-8GP4GS-2LV
- Housing: IP40 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 40.6mm×150mm×120mm
- Weight: 0.694kg
IES6300SL-16GT4GS-2LV
- Housing: IP40 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 65mm×150mm×120mm
IES6300SL-16GP4GS-2LV
- Housing: IP30 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 65mm×150mm×120mm
- Weight: 1.088kg
|
|
Industrial Standard |
IEC/EN 61000-4-2 (ESD, electrostatic discharge), Level 3
- Air discharge: ±8kV
- Contact discharge: ±6kV
IEC/EN 61000-4-3 (RF Field Strength Susceptibility)
80 MHz to 1 GHz: 10 V/m
IEC/EN 61000-4-4 (EFT, electrical fast transient pulses), Level 3
- Power supply: ±2kV
- Ethernet port: ±1kV
- Relay: ±2kV
IEC/EN 61000-4-5 (Surge), Level 4+
- Power supply: common mode ±6kV, differential mode ±2kV
- Ethernet port: common mode ±6kV, differential mode ±2kV
- Relay: common mode ±2kV, differential mode ±1kV
IEC/EN 61000-4-6 (Conducted Susceptibility):10KHz
IEC/EN 61000-4-8 Power Frequency Magnetic Field Susceptibility
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, UL, FCC, RoHS |
