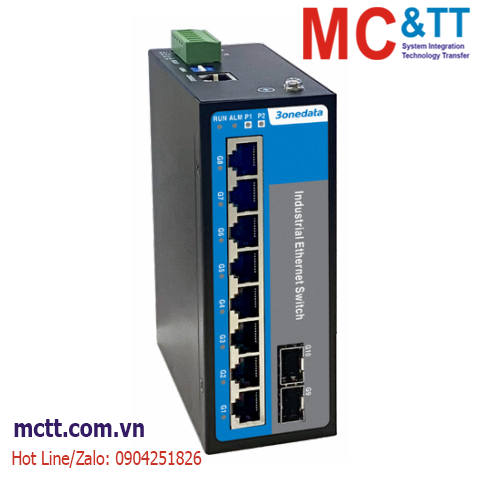

Switch công nghiệp quản lý 8 cổng Gigabit PoE + 2 cổng 2.5G SFP 3Onedata IES6000-8GP2HS-2P48-240W
IES6000-8GT2HS is a 10-port full Gigabit Layer 2 managed industrial Ethernet switch. This product provides Gigabit electrical ports, 2.5G SFP slots, and adopts DIN rail or wall mounting to meet the needs of different application sites.
The network management system supports a variety of network protocols and industry standards, such as Ring, STP/RSTP/MSTP, ERPS, DHCP, VLAN, QoS, IGMP Snooping, LLDP, port aggregation, port mirroring, etc. It has complete management functions, supports port configuration, access control, NAS, network diagnosis, online upgrade, etc. It supports CLI, WEB, Telnet, SSH, SNMP and other access methods. The network management system has a friendly interface design, simple and convenient operation, and can bring you a good user experience.
The product provides two independent power supply circuits to ensure that the device can still operate normally when one power supply fails. The design of the dip switch can restore the device to factory settings. When a link failure occurs in the DC power supply or port, the ALM alarm light will be high and the alarm device connected to the relay will also sound an alarm, so that the fault can be quickly checked on site.
The hardware adopts a fanless, low-power, and wide-temperature design. It has passed rigorous testing in accordance with industry standards and can adapt to industrial field environments with stringent EMC requirements. It can be widely used in industrial fields such as AP coverage, rail transit, smart cities, safe cities, new energy, smart grids, and smart manufacturing.
Tính năng
- Supports 2 2.5G SFP slots and 8 Gigabit electrical ports
- Adopting patented Ring network technology, it supports single ring, coupled ring, chain ring, and dual-homing ring network functions, and the automatic recovery time of network failure is <20ms
- Supports multiple network protocols and industry standards, such as STP/RSTP/MSTP, ERPS, DHCP, VLAN, QoS, IGMP Snooping, LLDP, etc.
- Support dual power supply redundancy, input voltage 12~48VDC
- Support -40~75℃ wide operating temperature
Thông số kỹ thuật
|
Standards and protocols |
10Base-T, compliant with IEEE 802.3
100Base-TX, compliant with IEEE 802.3u
1000Base-T, compliant with IEEE 802.3ab
1000Base-X, compliant with IEEE 802.3z
Flow control, compliant with IEEE 802.3x
Spanning tree, compliant with IEEE 802.1D
Rapid spanning tree, compliant with IEEE 802.1w
Multiple spanning trees, compliant with IEEE 802.1s
ERPS, compliant with ITU-T G.8032
VLAN, compliant with IEEE 802.1Q
CoS, compliant with IEEE 802.1p
LLDP, compliant with IEEE 802.1AB
LACP, compliant with IEEE 802.3ad |
|
Management Features |
SNMP v1/v2c/v3 centralized management equipment, RMON, QoS, LLDP, DHCP Server, DHCP Snooping, DHCP relay, user password, login method, file management, log management, port statistics, MEP |
|
Safety Technology |
User privilege classification, SSH configuration, HTTPS configuration, access control, SNMP, RMON, NAS, Radius server authentication, TACACS + server authentication, port alarm, DC power alarm, loop protection |
|
Exchange function |
802.1Q VLAN, static aggregation, LACP |
|
Unicast/Multicast Technology |
IGMP Snooping, Multicast MAC |
|
Redundancy Technology |
Ring, STP/RSTP/MSTP, ERPS |
|
Troubleshooting |
Ping, cable detection, port mirroring |
|
Time Management |
NTP, time zone configuration |
|
interface |
Gigabit electrical port: 10/100/1000Base-T(X), RJ45, automatic flow rate control, full/half duplex mode, MDI/MDI-X automatic detection
2.5G SFP slot: 100/1000 Base-X adaptive or 100/1000/2.5G Base-X forced mode, SFP slot
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 6-pin 5.08mm pitch terminal block (relays occupy 2 positions), supports 1 relay alarm output, current load capacity is 1A@30VDC or 0.3A@125VAC |
|
Indicator Lights |
Operation indicator, alarm indicator, power indicator, interface indicator |
|
Exchange attributes |
Transmission mode: store and forward
MAC address: 8K
Cache: 4Mbit
Backplane bandwidth: 30G
Switching delay: <10μs |
|
power supply |
Power input: 12~48VDC
Connection method: 6-pin 5.08mm pitch terminal block (power supply occupies 4 positions)
Power supply quantity: dual power supply redundant backup
Connection protection: non-polarity
Overcurrent protection: 5A |
|
Power consumption |
No-load power consumption: 4.4W@48VDC
Full load power consumption: 9.4W@48VDC |
|
Work Environment |
Working temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95% (no condensation) |
|
Mechanical structure |
Housing: IP40 protection grade, metal housing
Installation: DIN rail or wall mount
Weight: 0.65kg
Dimensions (width x height x depth): 53mm x 138mm x 110mm |
|
Industry Standards |
IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 3
IEC 61000-4-4 (EFT, Electrical Fast Transient Burst Immunity), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Certification |
CE, FCC, RoHS |
Download
Datasheet
Thông tin đặt hàng
Layer 2, 8*10/100/1000Base-T(X) PoE RJ45 + 2*100M/1G/2.5G SFP, dual power supply: 44~55VDC, DIN-Rail mounting
