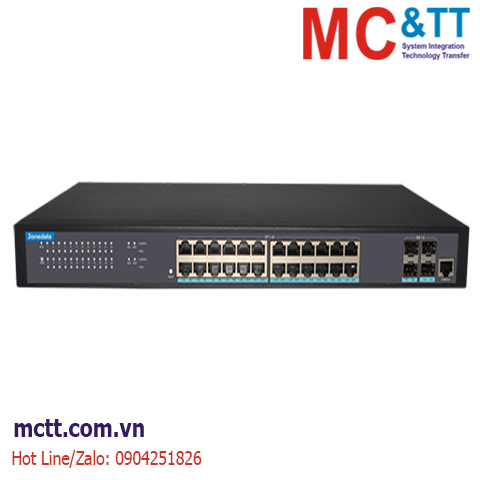

Switch công nghiệp quản lý 24 cổng Gigabit PoE + 4 cổng Gigabit SFP 3Onedata ICS5000-E24GP4GS-P(100-240VAC)
The ICS5000-E24GP4GS is a layer 2 managed PoE switch from 3onedata. This industrial PoE switch provides 24 10/100/1000Mbps self-adaptive RJ45 ports, and 4 Gigabit SFP ports. All ports support line-speed forwarding, which can provide you with greater network flexibility. Support VLAN ACL based on port, easily implement network monitoring, traffic regulation, priority tag and traffic control. Support traditional STP/RSTP/MSTP 2 link protection technology; greatly improve the ability of fault tolerance, redundancy backup to ensure the stable operation of the network. Support ACL control based on the time, easy control the access time accurately. Support 802.1x authentication based on the port and MAC, easily set user access. Perfect QoS strategy and plenty of VLAN function make it easy to manage and maintain, 24 RJ45 ports support PoE power supply function, support IEEE802.3at/af standard, can be used as Ethernet power supply device, which can automatically detect and identify the power receiving device that meets the standard, and supply power to it through the network cable. It needs no configuration, plug and play, and can flexibly expand the home and office network without being restricted by the power line layout; and can be widely used in safe city, intelligent transportation, high-speed tunnels and other fields..
Tính năng
- Comply with IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, EEE802.3ad ,standards; Supports IEEE802.3at/af PoE standards
- Support PoE power up to 30W for each PoE port, total power up to 370W for all PoE ports
- Support IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- Support MAC address auto-learning
- 24 10/100/1000M self-adaptive RJ45 ports, 4 Gigabit SFP ports, all copper ports support port auto- MDI/MDIX and auto-negotiation, which can adjust transmission method and rate automatically
- Adopt store and forward mode
- Support SNMP/RMON/TELENT/Web
- Support Storm Control
- Support QoS, Port Mirroring, Link Aggregation, Access Control
- Dynamic bicolor LED indicator, providing simple work mode alert and troubleshooting
- Built-in 400W high-performance switch power
Thông số kỹ thuật
|
Model |
ICS5000-E24GP4GS |
|
Chipset |
RTL8382M+2*RTL8218B-VC+RTL8214FC+3*RTL8231+HT85F2280+3*IP808 |
|
Network Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3ad, IEEE802.1P, IEEE802.1Q IEEE802.3at,IEEE802.3af |
|
Network Media |
10BASE-T: UTP category 3,4,5 cable
100BASE-TX: UTP category 5,5e cable
1000BASE-T: UTP category 5e,6 cable
1000Base-SX:62.5μm/50μm MMF(2m~550m)
1000Base-LX:62.5μm/50μm MMF(2m~550m) or 10μm SMF (2m~5000m) |
|
Transfer Method |
Store-and-Forward |
|
Backplane Bandwidth |
56Gbps |
|
Packet Forwarding Rate |
41.66Mbps |
|
Packet Buffer |
4.1Mbit |
|
MAC Address Table |
8K |
|
Jumbo Frame |
9KByte |
|
Number of Ports |
24 10/100/1000Mbps self-adaptive RJ45 ports (Auto MDI/MDIX)
4 Gigabit SFP ports
1 RJ45 Console serial port |
|
PoE Ports(RJ45) |
24 PoE ports compliant with IEEE802.3at/af |
|
Power Pin |
1/2(+),3/6(-) |
|
PoE Output Power |
≤370W |
|
LED Indicator of Per Port |
10/100Mbps Link/Act: Orange
1000Mbps Link/Act: Green
PoE: Yellow |
|
LED Indicator of Power and System |
Power: Green
SYS: Green |
|
Power Supply |
AC 100-240V/50-60Hz 400W internal power |
|
Power Consumption |
Maximum:430W(220V/50Hz) |
|
Dimensions ( WxDxH) |
440*208*44mm |
|
System |
IP Configuration(IPV4, IPV6)
User Configuration
Time Settings(SNTP)
Log Management
SNMP (V2)
RMON |
|
Port |
Port Configuration
Link Aggregation(static, Lacp)
Port Mirroring
Jumbo Frame
Port Error Disabled Configuration |
|
Vlan |
Port based VLAN
Protocol based VLAN |
|
IGMP |
IGMP Snooping (V2, V3)
Multicast group (256) |
|
STP |
IEEE 802.1D STP
IEEE 802.1W RSTP
IEEE 802.1S MSTP |
|
Security |
Broadcast / Uncast / Multicast Storm Control
IEEE 802.1x
DHCP Snooping (IP, MAC, Port) |
|
ACL |
MAC-Based ACL
MAC-Based ACE
IPv4-Based ACL
IPv4-Based ACE |
|
QoS |
WRR (Weighted Round Robin)
Port-based QoS
IEEE 802.1p Class of Service
DSCP-based QoS
QoS basic mode
QoS advanced mode (Policy based) |
|
Bandwidth Control |
Ingress Port
Ingress VLAN
Egress Port
Egress Queue |
|
MAC Address Setting |
Static Mac Setting
MAC Filtering
Dynamic Address Learn/Setting
Rma Setting |
|
LLDP |
LLDP Port Setting
MED Network Policy |
|
Management |
System Status
Ping Test
Factory Reboot Switch
Backup/Upgrade Manager
Configuration Manager |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
- ICS5000-E24GP4GS-P(100-240VAC)
Managed Full Gigabit Ethernet PoE Switch, 24-Port 10/100/1000Base-T(X) + 4 gigabit combo ports, support 24*IEEE802.3af/at PoE ports, 380W maximum output consummption of PoE
