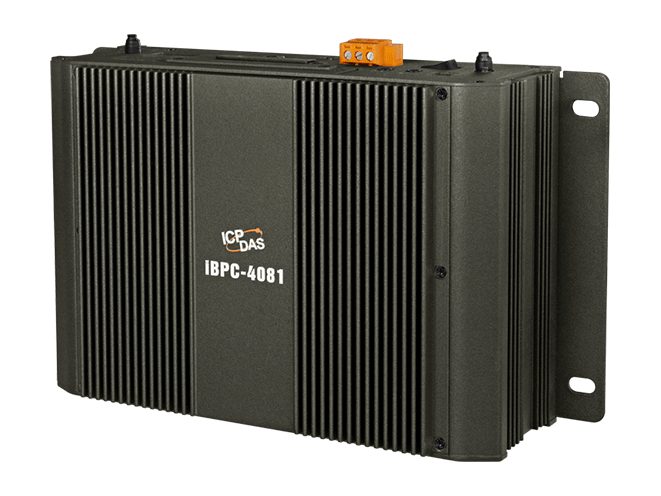

Máy tính nhúng công nghiệp không quạt CPU Intel Atom E3845 ICP DAS iBPC-4081-IoT CR
The iBPC series is a fanless embedded box PC designed for harsh environments, featuring a wide operating temperature range and wide voltage input capabilities.
The series offers comprehensive connectivity, including one RS-232 port, one RS-232/485 port, two RS-232/422/485 ports, VGA, HDMI, Audio, dual Gigabit Ethernet LAN ports, and four high-speed USB 2.0 interfaces.
Powered by the Intel ATOM Quad-Core E3845 Processor (1.91GHz) with 4GB of onboard memory, the iBPC-4081-IoT ensures reliable performance. It also features two SMA antenna cutouts, a +10 ~ 30 VDC power input, a power switch, and an optional I/O expansion board (XV-board) for isolated high-protection I/O.
The iBPC-4081-IoT comes pre-installed with Windows 10 IoT Enterprise LTSC. It supports both Universal Windows Apps and traditional Windows applications simultaneously. This ensures maximum compatibility with standard Windows 10 development tools, allowing applications to be quickly ported and deployed in demanding industrial environments.
Features
• Powerful Hardware Design
‣ Intel E3845, 1.91 GHz, 64-bit, Quad core
‣ 1 x VGA display port
‣ 1 x HDMI display port
‣ Microphone-In and Earphone-Out
‣ Built-In dual watchdog timers/ Real-time clock/64-bit Hardware Serial Number
• Various Memory & Storage Options
‣ 4 GB DDR3 on-board
‣ 1 x 128 GB SSD
‣ 16 KB EEPROM for data retention
‣ 128 KB MRAM for data retention
• Multiple Communication Interfaces
‣ 2 x 10/100/1000BASE-T Ethernet Ports
‣ 4 x Serial Ports (1 x RS-232, 1 x RS-232/485, 2 x RS-232/422/485)
‣ 4 x USB 2.0 (host)
• Highly Reliable Under Harsh Environment
Application
https://mctt.vn/ibpc-icp-das
Specifications
| Software |
| OS Support |
Windows 10 IoT Enterprise LTSC (64-bit) |
| SDK |
Dll for VC, Dll for Visual Studio.Net |
| Main Unit |
| CPU |
Intel E3845, 1.91 GHz, 64-bit, Quad core |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
4 GB DDR3 SDARM |
| Storage |
128 GB SSD, optional CF Card (supports up to 32 GB) |
| Non-Volatile Memory |
128 KB MRAM, 16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA, HDMI |
| Resolution |
VGA: 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3)
HDMI: 2560 x 1600 @ 24bpp |
| LED Indicators |
| Status |
1 x Power, 1 x HDD, 2 x Programmable |
| I/O Expansion |
| I/O Type |
XV-board, PCI-E Mini-Slot |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Power Switch |
Yes |
| SMA Connector |
2 |
| Audio |
| Jack |
Microphone-In and Earphone-Out |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports |
| Ports |
1 x RS-232 (3000VDC Isolated), 1 x RS-232/RS-485 (3000VDC Isolated), 2 x RD-232/RS-422/RS485 (3000VDC Isolated) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
18.0 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
254 x 164 x 74 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Ingress Protection Rating |
IP30 (Aluminum) |
| Environment |
| Operating Temperature |
-25 ~ +70 °C |
| Storage Temperature |
-40 ~ +75 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iBPC-4081-IoT CR |
Industrial fanless embedded Box PC with Intel Atom E3845 CPU and 1 I/O Bus (RoHS) |
