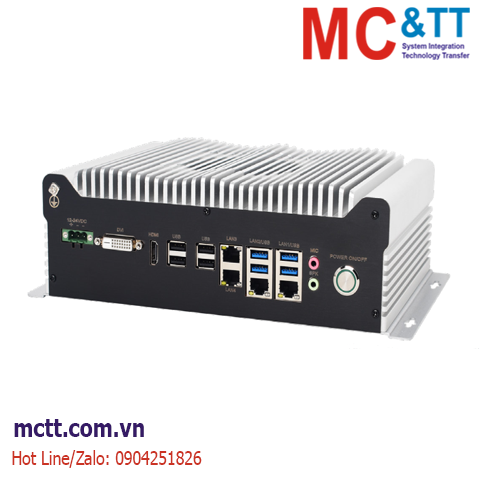

Máy tính nhúng công nghiệp không quạt (4 LAN + 4 COM) TP-IPC IBOX-605-4L4C
The IBOX-605-4L4C system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
Tính năng
- Full aluminum alloy anti-interference structure
- Modular parts with strong scalability
- Fully enclosed with fanless cooling system
- Cable-free design for better vibration resistance
- Scientific and reasonable interface layout
- Double board design with diverse interfaces
Tổng quan sản phẩm
IBOX-605-4L4C: Equipped with 6th to 9th generation intelligent Intel® Core™ processors and a ruggedised enclosure. In addition to sufficient functional I/O options, it also provides device and edge analytics solutions.
Thông số kỹ thuật
| Model |
IBOX-605-4L4C |
| Supported OS |
Win 7, Win 8, Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); WES 7; Win 10 IoT |
| Chípet |
Intel® H110, TDP 6W |
| CPU |
Processor Socket |
Intel® Desktop Processors Socket LGA1151 |
| Series |
6th Gen. Intel® Core™ Processor |
Intel® Celeron® G4900 Processor |
7th-9th Gen. Intel® Core™ Processor |
| TDP |
Up to 65W |
54W |
Up to 65W |
| Graphic |
Intel® HD Graphics 530 |
Intel® UHD Graphics 610 |
7th Gen: Intel® HD Graphics 630 8th/ 9th Gen: Intel® UHD Graphics 630 |
| RAM |
Type & Qty |
2* SO-DIMM Socket |
2* SO-DIMM Socket |
2* SO-DIMM Socket |
| Frequency |
DDR4-1866/2133 MHz |
DDR4-2400 MHz |
DDR4-2400/2666 MHz |
| Capacity |
Up to 32GB |
Up to 32GB |
Up to 32GB |
| Storage Device |
SATA |
2* SATA3.0 connectors (6Gb/s) |
| MSATA |
1* mSATA3.0 slot on board (6Gb/s) |
| I/O Interface |
COM |
2* RS232/RS422/RS485 (COM1/2, Wafer); 2* RS232 (COM3/4, Wafer) |
| Ethernet |
1* I219 GBE LAN Chip (10/100/1000 Mbps, RJ45); 3* I210AT GBE LAN Chip (10/100/1000 Mbps, RJ45, I211 by default) |
| USB |
4* USB3.0 (TYPE-A); 4* USB2.0 (TYPE-A) |
| Video |
1* HDMI (TYPE-A): max resolution up to 4096 x 2160@30Hz; 1* DVI-D (24+1P CONN): max resolution up to 1920 x 1080@60Hz |
| Audio |
Realtek ALC897 5.1 Channel HDA Codec; 1* MIC Φ3.5mm Jack; 1* Line-Out Φ3.5mm Jack; 1* Front Audio Wafer (Line-Out + MIC) |
| SIM |
1* SIM Card Wafer connected to Mini PCIe slot |
| Power Supply |
12-24 VDC; 1* 4-Pin DC Power Jack (Circular DIN Connectors, Full-Shield, optional with Phoenix Terminal Connector) |
| Others |
1* 8-bit GPIO Wafer; 1* PS/2 Wafer (Keyboard & Mouse);
1* HDD LED Wafer; 1* System Reset Wafer 1* AT or ATX Select Jumper |
Extended
Capabilities |
Additional
Internal Interface |
1* M.2 3052 B-key with SIM card slot;(USB3.0)
2* M.2 2230 E-key Slot (PCIe+USB2.0, support WiFi+BT);
1* Full Size Mini-PCIe (PCIe+USB2.0) |
| Environment |
Operating Temp. |
-10 ~ 55 °C w/ 0.7m/s Airflow |
| Storage Temp. |
-40 ~ 85 °C (-40~185 °F) |
| Relative Humidity |
40 °C @ 95%, Non-Condensing |
Physical
Characteristics |
Dimensions |
290.35* 152.58* 186 mm (W* H* D) |
| Net Weight |
3.9 KG |
| Regulation |
EMC |
CE/FCC Class B, CCC |
| Safety |
CE-LVD, RoHS, CCC |
Kích thước sản phẩm
Bộ xử lý CPU
| CPU |
Code Name |
Total
Cores |
Total
Threads |
Max Turbo
Frequency |
Base
Frequency |
Cache |
TDP |
Memory Types |
Integrated Graphics |
| Intel® Core™ I3-6100 |
Skylake |
2 |
4 |
- |
3.70 GHz |
3 MB Intel® Smart Cache |
51 W |
DDR4 |
Intel® HD Graphics 530 |
| Intel® Core™ I5-6500 |
Skylake |
4 |
4 |
3.60 GHz |
3.20 GHz |
6 MB Intel® Smart Cache |
65 W |
DDR4 |
Intel® HD Graphics 530 |
| Intel® Core™ I7-6700 |
Skylake |
4 |
8 |
4.00 GHz |
3.40 GHz |
8 MB Intel® Smart Cache |
65 W |
DDR4 |
Intel® HD Graphics 530 |
| Intel® Celeron® G4900 |
Coffee Lake |
2 |
2 |
- |
3.10 GHz |
2 MB Intel® Smart Cache |
54 W |
DDR4 |
Intel® UHD Graphics 610 |
| Intel® Core™ I3-7100 |
Kaby Lake |
2 |
4 |
- |
3.90 GHz |
3 MB Intel® Smart Cache |
51 W |
DDR4 |
Intel® HD Graphics 630 |
| Intel® Core™ I5-7400 |
Kaby Lake |
2 |
4 |
3.50 GHz |
3.00 GHz |
6 MB Intel® Smart Cache |
65 W |
DDR4 |
Intel® HD Graphics 630 |
| Intel® Core™ I7-7700 |
Kaby Lake |
4 |
8 |
4.20 GHz |
3.60 GHz |
8 MB Intel® Smart Cache |
65 W |
DDR4 |
Intel® HD Graphics 630 |
| Intel® Core™ I3-8100 |
Coffee Lake |
4 |
4 |
- |
3.60 GHz |
6 MB Intel® Smart Cache |
65 W |
DDR4 |
Intel® UHD Graphics 630 |
| Intel® Core™ I5-8500 |
Coffee Lake |
6 |
6 |
4.10 GHz |
3.00 GHz |
9 MB Intel® Smart Cache |
65 W |
DDR4 |
Intel® UHD Graphics 630 |
| Intel® Core™ I7-8700 |
Coffee Lake |
6 |
12 |
4.60 GHz |
3.20 GHz |
12 MB Intel® Smart Cache |
65 W |
DDR4 |
Intel® UHD Graphics 630 |
| Intel® Core™ I3-9300 |
Coffee Lake |
4 |
4 |
4.30 GHz |
3.70 GHz |
8 MB Intel® Smart Cache |
62 W |
DDR4 |
Intel® UHD Graphics 630 |
| Intel® Core™ I5-9400 |
Coffee Lake |
6 |
6 |
4.10 GHz |
2.90 GHz |
9 MB Intel® Smart Cache |
65 W |
DDR4 |
Intel® UHD Graphics 630 |
| Intel® Core™ I7-9700 |
Coffee Lake |
8 |
8 |
4.70 GHz |
3.00 GHz |
12 MB Intel® Smart Cache |
65 W |
DDR4 |
Intel® UHD Graphics 630 |
Phụ kiện mua thêm
| Optional Items |
Max Qty |
Description |
| Isolated RS-232 |
4 |
DB9 or Phoenix Terminal connector, connected by header |
| Non-Isolated RS-232 |
4 |
DB9 or Phoenix Terminal connector, connected by header |
| Non-Isolated RS-422 |
2 |
DB9 or Phoenix Terminal connector, connected by header |
| Non-Isolated RS-485 |
2 |
DB9 or Phoenix Terminal connector, connected by header |
| Non-Isolated 8-bit GPIO, 0-5V |
1 |
Phoenix Terminal connector, connected by header |
| Isolated 8-bit GPIO, 9-24V |
1 |
Phoenix Terminal connector, connected by header |
| Isolated 8-bit GPIO with current loading, 9-26V |
1 |
Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
| 4G Module |
1 |
Connected by Mini-PCIe |
| 5G Module |
1 |
Connected by Mini-PCIe |
| WiFi Module without AP mode |
1 |
Connected by Mini-PCIe interface, M.2 interface or internal USB interface |
| WiFi Module with AP mode |
1 |
Connected by Mini-PCIe interface |
| Dual channel CAN-Bus Module |
2 |
Connected by Mini-PCIe |
| Dual GbE PoE LAN Module |
1 |
Connected by Mini-PCIe Interface |
