Module nhúng 2.4G Wireless Single-band AP 3Onedata IAP2300F-2N2-5T-PDP12_36

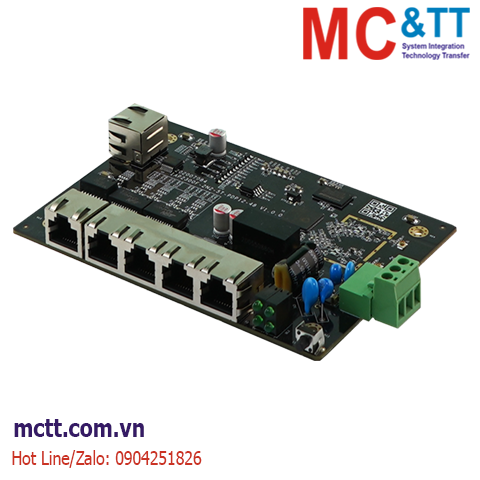

IAP2300F-2N2 -5T-PDP12_36 is an industrial wireless AP. The product supports 1 100MB WAN, 4 100MB LAN and 2 WIFI IPEX-1 generation antenna pedestal, etc. It adopts embedded mounting, which can meet the requirements of different application scenes.
The device supports four working modes: routing, AP, bridge and client. Support IEEE802.11b/g/ n wireless technology, wireless transmission rate up to 300Mbps; Support WPA, WPA2, WPA3 and other wireless encryption methods, with SSID hiding, wireless user isolation, MAC address filtering, ARP binding, DMZ settings and other security policies; Support for virtual APS, where a single AP device supports multiple SSIDs.
RESET button can realize device reboot and one-key factory default restoration. The hardware adopts fanless, low power consumption, wide temperature and wide pressure design, through the strict test in line with the industry standards, can adapt to the harsh requirements of the industrial environment, can be widely used in rail transit, security, smart city, integrated pipe gallery, production automation, smart lamp pole and other industries.
Tính năng
- Support 1 100M WAN, 4 100M LAN and 2 2.4G WIFI IPEX-1 generation antenna pedestal
- Support four work modes including routing, AP, network bridge and client
- Support DC power supply input and anti-reverse connection, input voltage: 24VDC (12～36VDC)
- Support -40~75℃ wide operating temperature range
Thông số kỹ thuật
| Standard & Protocol |
IEEE802.11b/g/n for WLAN
IEEE802.11i for wireless security
IEEE802.11r for fast roaming
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) |
| Working mode |
Route, AP, bridge, client |
| Network Setting |
External Network Settings, Intranet Settings, Wireless Settings, Wireless Probe, AC Management, SNMP Management, QoS Management |
| Network Security |
MAC Filtering, IP Filtering, URL Filtering, WPA/WPA2/WPA3 Encryption, DMZ |
| WIFI Transmission Rate |
802.11n： 6.5~300Mbps
802.11b：11/5.5/2/1Mbps
802.11g：54/48/36/24/18/12/9/6Mbps |
| WIFI RF |
Channel: 2.412GHz~2.4835GHz
RF power output: 23dBm
Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| WIFI Receiving Sensitivity |
802.11n_HT40：-82dBm@MCS0、-64dBm@MCS7
802.11n_HT20：-85dBm@MCS0、-67dBm@MCS7
802.11g：-91dBm@6Mbps、-72dBm@54Mbps
802.11b：-93dBm@1Mbps、-87dBm@11Mbps |
| WIFI Transmission Power |
802.11n_HT40：23dBm@MCS0、20dBm@MCS7
802.11n_HT20：23dBm@MCS0、20dBm@MCS7
802.11g：23dBm@6Mbps、20dBm@54Mbps
802.11b：23dBm@1Mbps、23dBm@11Mbps |
| Interface |
Copper port: 5 10/100Base-T(X) RJ45 ports: 4 LAN + 1 WAN
Antenna pedestal: 2 WIFI IPEX-1 generation antenna pedestal, RP-SMA-K type (Female), support 1.5kV isolation protection |
| Indicator |
Signal indicator, Running indicator, Power supply indicator, 2.4G wireless indicator |
| Physical Characteristic |
Installation: embedded mounting
Dimension (W x H x D): 130mm×14.6mm×90mm |
| Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%~95% (no condensation) |
| Power Requirement |
Support DC power input, voltage range: 24VDC(12 ~ 36VDC), support anti-reverse connection, support 1.5KV isolation protection |
| Power Consumption |
≤4.6W@24VDC |
| Authentication |
CE, FCC, RoHS |
Thông tin đặt hàng
| Model |
100M WAN |
100M LAN |
WIFI IPEX-1 generation antenna pedestal |
Power Supply |
| IAP2300F-2N2-5T-PDP12_36 |
1 |
4 |
2 |
24VDC
(12~36VDC) |
Tài liệu
Datasheet
Quick Installation Guide
