Mô tả

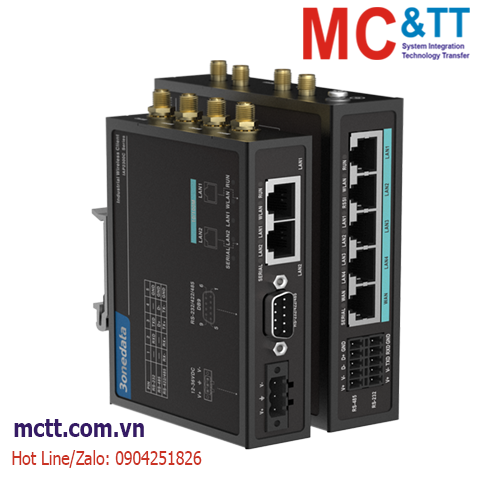

Máy khách không dây công nghiệp 3Onedata IAP2300C

IAP2300C series are 100M industrial wireless clients. This series have 4 products, providing 100M WAN port, 100M LAN port, 2.4G/5G dual-band antenna interface, serial port and other interfaces. This series of products provides one serial port, and supports serial port server or Modbus gateway, so that serial port devices can be equipped with networking capability immediately or realize the conversion between Modbus RTU/ASCII and Modbus TCP protocol. This series product supports DIN-Rail or wall mounting, which can meet the requirements of different scenes.

The management system supports routing, AP, bridge, client and dual link wireless work mode; Support IEEE802.11a/b/g/n wireless technology, the wireless rate of the 2E single band whole device is up to 300Mbps, the wireless rate of the 2E2E dual band whole device is up to 600Mbps. The device supports wireless encryption methods such as WPA/WPA2/WPA3 personal edition and enterprise edition, and has various security policies such as SSID hiding, wireless user isolation, IP address filtering, MAC address filtering, URL filtering, port forwarding, port redirection, ARP binding, DMZ setting, etc. Support virtual AP, that is, one AP device supports multiple SSIDs.

The device supports single-band wireless fast roaming, client efficient roaming, dual-link seamless roaming. And the efficient roaming takes only about 50 milliseconds, which can meet the requirements of rapid roaming and recovery of wireless data in industrial occasions. Dual-link seamless roaming, that is, in the WLAN (Wireless Local Area Network) constituted by multiple AP, user can achieve seamless roaming without conducting the AP switching operation. In serial server mode, each serial port supports 4 TCP or UDP session connections and multiple work modes like RealCom, TCP Server, TCP Client, UDP Server, UDP Client. Under Modbus protocol mode, work modes such as RTU Master, RTU Slave, ASCII Master and ASCII Slave are supported. Up to 256 Modbus TCP Client(Master) devices can be accessed, and 128 Modbus TCP Server(Slave) devices can be connected.

The button can achieve restore factory defaults, enable debugging WLAN(2T) or restart (5T). The hardware adopts fanless, low power consumption, wide temperature, wide pressure design, through strict testing in line with industry standards, can adapt to the industrial site environment with harsh requirements for EMC, can be widely used in the robot industry: sorting robot, small freight robot, etc.

Tính năng

  • Support 2 or 5 100M copper ports, 1 RS-232/485/422 or RS-232/485 serial port (optional)
  • Support optional 2.4GHz and 5GHz dual band, 2.4G single band or 5G single band, support up to 4 2.4G/5G dual band antennas to access
  • Support optional wireless network modes such as routing, AP, bridge, client, and dual link mode.
  • Support multiple serial port modes like RealCom, TCP Server, TCP Client, UDP Server, UDP Client
  • Support conversion between Modbus RTU/ASCII and Modbus TCP protocol
  • Support 12~36VDC power supply input
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol IEEE 802.3 for 10Base-T
IEEE802.3u for 100Base-TX
IEEE802.11a/b/g/n for WLAN
IEEE802.11i for wireless security
IEEE802.11r for fast roaming
IEEE802.11e for WWM
Working Mode

Route mode
AP mode
Bridge mode (connection: WDS bridge, universal bridge; fast roaming)
Client mode (connection: WDS bridge, universal bridge, wireless NAT; fast roaming/efficient roaming)
Dual-link mode (connection: Dual-WDS bridge, Dual-universal bridge, Dual-wireless NAT; Seamless roaming)

Note:
Only 5T (with WAN port) devices support routing mode, AP mode, QoS management, wireless probe and other functions; Only 2E2E dual-band devices support dual-link mode.

WLAN WAP/WAP2/WAP3 personal/enterprise edition encryption mode, hidden wireless SSID, wireless user isolation, wireless transmission power adjustment, maximum user limit, packet segmentation and RTS threshold, China/US wireless channel, WDS, WMM
Management Intranet settings, extranet settings (routing mode/wireless NAT), wireless settings-client, wireless settings-AP, AC management, SNMP management, roaming agent, seamless roaming, QoS management, wireless probe, user settings, system upgrade, timed restart, profile management, system log, log management, wireless user list, Wi-Fi real-time traffic monitoring, serial port application, serial port log, Modbus settings
Security

Wireless users: black/white list of wireless users and event notification of wireless users.

Firewall: IP filtering, MAC filtering, URL filtering, port forwarding, Port redirection, ARP binding, DMZ setting

Routing/Switching Static routing (routing mode/wireless NAT)
Troubleshooting Network detection, Ping, route tracing
Time Management NTP Client
Radio Frequency 802.11B/g/n: 2.412GHz~2.4835GHz
802.11a/n: 5.18GHz~5.825GHz
RF power output: 20dBm
Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Receiving Sensitivity 802.11b: -95dBm@1Mbps, -89dBm@11Mbps
802.11g: -90dBm@6Mbps, -74dBm@54Mbps
802.11a: -89dBm@6Mbps, -72dBm@54Mbps
802.11n: -85dBm@MCS0, -67dBm@MCS7
Transmitting Power 802.11b: 23dBm@1Mbps, 20dBm@11Mbps
802.11g/a: 23dBm@6Mbps, 20dBm@54Mbps
802.11n: 23dBm@MCS0, 20dBm@MCS7
Interface Antenna interface: 2.4G/5G dual-band antenna interfaces, RP-SMA-K(Female)
100M WAN: 10/100Base-T(X) RJ45 port
100M LAN: 10/100Base-T(X) RJ45 port
Serial port: RS-232/485/422 serial port adopts DB9(Male); RS-232/485 serial port adopts 2*5PIN 3.81mm pitch terminal blocks, the serial port occupies 6 pins
Serial Port Parameter Standard: EIA RS-232C, RS-485, RS-422
RS-232 signal: RXD, TXD, GND
RS-485 signal: D+, D-, GND
RS-422 signal: TX+, TX-, GND, RX+, RX-
Baud rate: 300~115200bps
Data bit: 8bits
Parity bit: None, Even, Odd
Stop bit: 1bit
Directional control: RS-485 direction adopts Automatic Data Direction Control technology
Load capacity: RS-485/422 end supports 32-node polling environment
Pull up/down resistance for RS-485: 4.7kΩ
Work mode:
Serial server: RealCom Mode, TCP Server Mode, TCP Client Mode, UDP Server Mode, UDP Client Mode, each serial port supports 4 TCP/UDP sessions
Modbus gateway: RTU Master, RTU Slave, ASCII Master, ASCII Slave, support up to 256 Modbus TCP Client (Master) device accesses and 128 Modbus TCP Server (Slave) device connections
Indicator Running indicator, WLAN indicator, RSSI indicator, WAN indicator, LAN indicator, serial port indicator
Power supply

IAP2300C-2E-2T-1D-P12_36, IAP2300C-2E2E-2T-1D-P12_36
Input voltage: 12~36VDC, support anti-reverse connection
Connection mode: 3-pin 5.08mm pitch terminal blocks

IAP2300C-2E-5T-1D-P12_36, IAP2300C-2E2E-5T-1D-P12_36
Input voltage: 12~36VDC, support anti-reverse connection
Connection method: 2*5PIN 3.81mm pitch terminal blocks (includes 4-pin power supply)

Power consumption

IAP2300C-2E-2T-1D-P12_36
No-load at normal temperature: 2.0W@12VDC, 2.0W@36VDC
Full load at normal temperature: 4.6W@12VDC, 4.8W@36VDC
Full load at high temperature: 4.7W@12VDC, 5.1W@36VDC

IAP2300C-2E-5T-1D-P12_36
No-load at normal temperature: 2.1W@12VDC, 2.5W@36VDC
Full load at normal temperature: 5.5W@12VDC, 5.7W@36VDC
Full load at high temperature: 5.5W@12VDC, 5.7W@36VDC

Working environment Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95%(no condensation)

Physical Characteristic Housing: IP30 protection, metal
Installation: DIN-Rail or wall mounting
Dimensions (W x H x D): 26mm×114mm×77mm(2T series) 30mm×124mm×96mm(5T series)
Weight: 401g(IAP2300C-2E-5T-1D-P12_36)
Industrial Standard

IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Air discharge:± 8kV
Contact discharge: ±6kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Signal: ±1kV

IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Signal: common mode±2kV, differential mode±1kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification CE, FCC, RoHS

Thông tin đặt hàng



Available Models 2.4g/5g Antenna Interface 100m Copper Port Serial Port Power Supply
WAN LAN RS-232/485/422 RS-232/485
IAP2300C-2E-2T-1D-P12_36 2 2 1 12~36VDC
IAP2300C-2E2E-2T-1D-P12_36 4 2 1
IAP2300C-2E-5T-1D-P12_36 2 1 4 1
IAP2300C-2E2E-5T-1D-P12_36 4 1 4 1

Accessories

Product Type Product Number Remark
2.4G/5G omnidirectional antenna, gain 2dBi, frequency 2400-2483MHz, 5150-5850MHz, RP-SMA-J interface, antenna length 108.5mm 3005040132

2E single frequency series (standard)

2E2E dual-frequency series (optional)

Magnetic base cable of suction cup, frequency 0-6GHz, RP-SMA-K/RP-SMA-J interface, black cable length is 1.2m 3005040092 Optional
2.4G/5G omnidirectional antenna, gain 2dBi, frequency 2400-2500MHz, 5150-5850MHz, RP-SMA-J interface, antenna length 108mm. 3005040133 Optional
2.4G/5G omnidirectional antenna, gain 3dBi, frequency 2400-2483MHz, 5150-5850MHz, RP-SMA-J interface 3005040108 Optional
