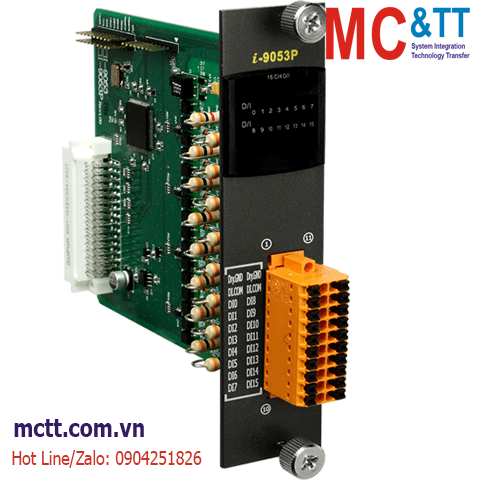

Module 16 kênh DI ICP DAS I-9053P CR
Feature
• 16-channel Digital Input
• Channel Status LED Indicators
• Long Distance Measurement
• Dry and Wet Contact, Selectable via Wire Connections
Introduction
The I-9053P offers 16 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters. All channels feature photocouple isolation. The I-9053P provides 16 LED indicators that can be used to monitor the DI channel status. 4 kV ESD protection and 3750 Vrms intramodule isolation are also provided to enhance noise immunity capabilities in industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
16 x DI |
| Digital Input |
| Channels |
16 |
| Type |
Dry + Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +19 VDC ~ +30 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +11 VDC Max. |
| Response Speed |
OFF to ON: 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms (by Jumper select) or CPU parameter setting, Default Setting is Disable
ON to OFF: 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms (by Jumper select) or CPU parameter setting, Default Setting is Disable |
| Low Pass Filter |
Yes, Programmable |
| Effective Distance |
500 m Max. |
| Power |
| Consumption |
1 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 144 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9053P CR |
16-ch Isolated DI (Dry, Wet) Module with Low Pass Filter (RoHS) |
