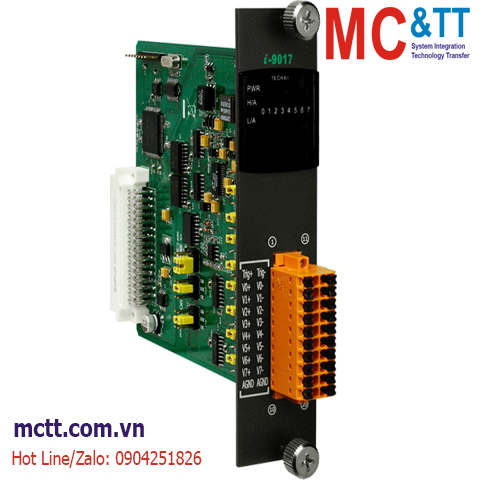

Module 8/16 kênh AI ICP DAS I-9017 CR
Feature
• 16 Single-ended/8 Differential Input Channels
• Input Voltage Range : ±1.25 V, ±2.5 V, ±5 V, ±10 V
• Input Current Range : 0 mA ~±20 mA
• Input Impedance 20 K, 200 K, 20 M
• 14-bit 100 KHz AD Converter
• A/D Trigger Mode: Polling, Interrupt
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 to +75°C
Introduction
The I-9017 is a high performance Analog Input module with 14 bits of resolution and a sampling rate of up to about 90K S/s. The I-9017 provides up to 16 single-ended or 8 differential input channels, which is selectable via a jumper setting.The I-9017 has qualification for 4 kV ESD protection as well as 2500 Vrms intra-module isolation.
Application
• High speed data acquisition systems
• Vibration analysis
Specifications
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
16-ch Single-ended/8-ch Differential |
| Type |
Voltage
Current |
| Range |
Voltage: ±1.25 V, ±2.5 V, 5 V, ±10 V
Current: -20 mA ~ +20 mA |
| Resolution |
14-bit |
| Accuracy |
±0.1% of FSR |
| Sampling Rate |
Single Channel Polling Mode: about 90 kS/s
Single Channel Interrupt Mode: 50 kS/s
15-channel Scan Mode : 16 kS/s |
| Bandwidth |
100 KHz |
| Input Impedance |
20 K, 200 K, 20 M (Jumper Selectable) |
| Zero Drift |
± 0.1 uV/°C |
| Span Drift |
± 10 ppm/°C |
| Power |
| Consumption |
2 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 144 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9017 CR |
90 KS/s, 16/8-ch Voltage/Current Input Module (RoHS) |
