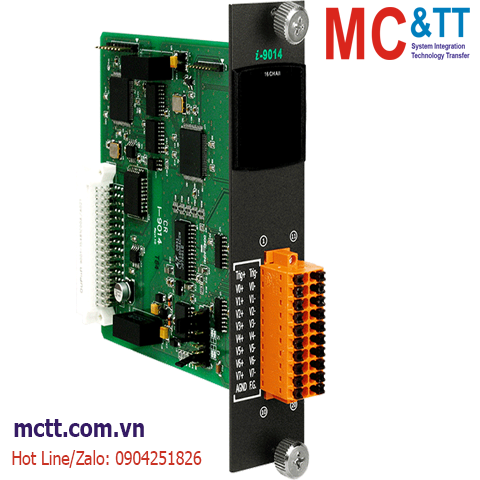

Module 8/16 kênh AI ICP DAS I-9014 CR

Module 8/16 kênh AI ICP DAS I-9014 CR

Feature

• 16 single-ended/8 differential input channels (Jumper selectable)
• Input Range : ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±20 mA
• 16-bit, 250 KHz ADC converter
• 4 K-samples FIFO buffer
• External trigger mode : post-trigger
• Internal/external trigger start
• Magic Scan

Introduction

The I-9014 is a high performance Analog Input module. The I-9014 provides up to 16 single-ended or 8 differential input channels that features 16-bit resolution, 250kS/s sampling rate, and a 4 k sample FIFO buffer, as well as providing 2500 Vrms isolation protection.

The I-9014 module contains an impressive scan function called Magic Scan, which is able to improve many of the functions and meet the demands of high-end users. Magic Scan function can scan the individual input channels at different input range and when performing single channel scan, the sampling rate can be maintained at 250kS/s.

The Magic Scan function on the I-9014 module can be operated in two ways. The first is a standard scan and the other is a Virtual Sample and Hold function. The cost of almost all AI Cards is high if it includes a Sample and Hold function, but ICP DAS can now offer a low-cost alternative.

The I-9014 module includes a 4 k sample onboard FIFO buffer for A/D conversion.The new FIFO technology uses a trigger interrupt signal, meaning that if the sampled count is higher than the pre-defined FIFO level, an interrupt signal will notify the host. With the Magic Scan function and 4 k FIFO buffer, the I-9014 can easily implement high-accuracy, high-speed and time-critical data acquisition applications.

Application

• High speed data acquisition systems
• Vibration analysis

Specifications
