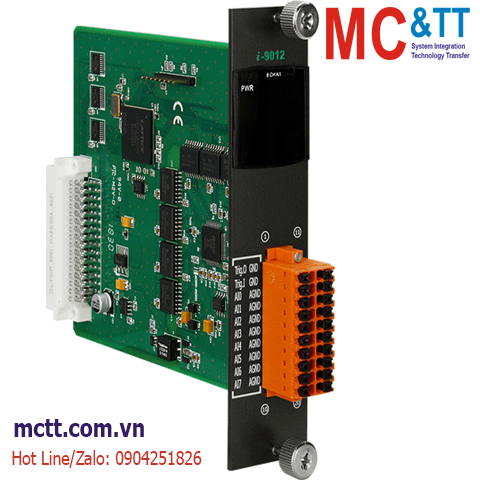

Module 8 kênh AI ICP DAS I-9012 CR
Feature
• 16-bit AD Converter
• Simultaneously Sampled
• 200 kHz sample rate at single channel
• 8 k byte FIFO
• 4 kV ESD Protection
• 2500 VDC Intra-module Isolation
• Wide Operating Temperature Range: -25 to +75 °C
Introduction
The I-9012 is a high performance Analog Input module with 16 bits of resolution and a sampling rate up to 200 kS/s per channel. The I-9012 provide 8 channels and input range could be programmable to ± 5 V, ± 10 V Trigger Output and Trigger Input Pin cloud make multitude of I-9012 modules Simultaneously Sampled at same time. And the module also provides 4 kV ESD protection and 2500 VDC intra-module isolation.
Application
Specifications
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
8-ch single-ended |
| Type |
Voltage |
| Range |
±5 V, ±10 V |
| Resolution |
16-bit |
| Accuracy |
0.05% of FSR @ 25 °C |
| Sampling Rate |
Single Channel Pacer Internal Mode: 200 kS/s
Single Channel Pacer External Mode: 200 kS/s
Single Channel Polling Mode: 40 kS/s |
| FIFO Size |
8 k byte |
| Trigger Mode |
Polling: Software trig
Pacer: Internal Clock, External Clock |
| Power |
| Consumption |
1 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 144 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9012 CR |
8 channels Simultaneously Sampled Analog Input Module, 200 kS/s (RoHS) |
