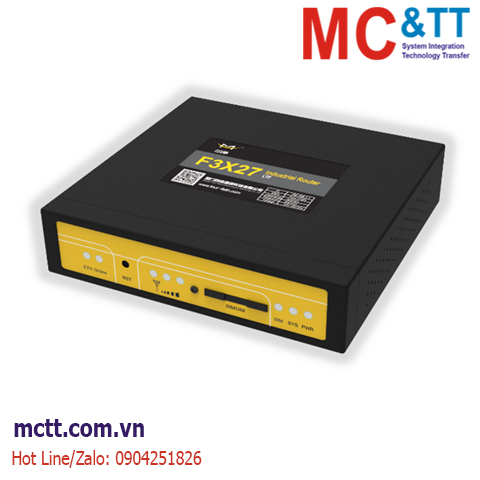

Router công nghiệp 4G (Cat.1) 1 cổng LAN Four-Faith F3C27 V2
LTE Industrial Router F3X27 V2 is an IoT wireless communication router. Industrial Network Router is using the public cellular network GPRS/CDMA/WCDMA/EVDO/LTE to provide long distance, wireless and large data transmission function for users. Industrial Network Router has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart home, finance, mobile POS terminals, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical, telemetry, agriculture, forestry, water, coal, petrochemical, and other related fields.
Tính năng
Thông số kỹ thuật
Cellular Specification | ||
Model | F3827 V2 | F3C27 V2 |
Items | Contents | |
Standard and Band | LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE | FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28, B66 TDD-LTE: B38, B40, B41 GSM/GPRS: 850/900/1800/1900 MHz |
Bandwidth | LTE FDD:DL 100Mbps,UL 50Mbps LTETDD:DL 61Mbps,UL 18Mbps DC-HSPA+:DL 42Mbps,UL 5.76Mbps TD-HSPA+:DL 4.2Mbps,UL 2.2Mbps EVDO Rev.A:DL 3.1Mbps,UL 1.8Mbps |
FDD-LTE:Cat1, DL 10Mbps, UL 5Mbps TDD-LTE:Cat1, DL 8.96Mbps, UL 2Mbps GPRS:DL 85.6Kbps, UL 85.6Kbps |
Transmit Power | < 23dBm | |
Sensitivity | < -97dBm | |
Hardware System | ||
Model | F3827 V2 | F3C27 V2 |
Items | Contents | |
CPU | Industrial-grade 32 bits CPU | |
Flash | 16MB (Optional for 64MB) |
|
DDR2 | 128MB |

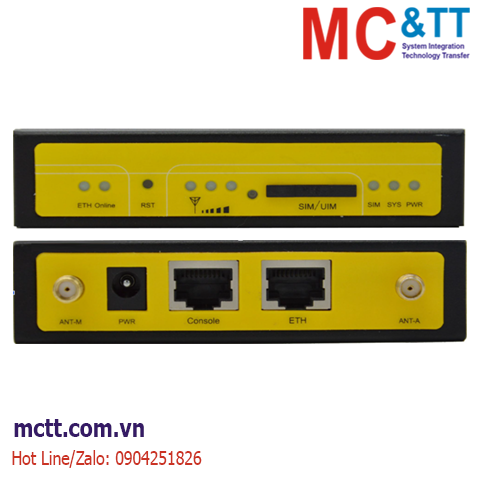

Interfaces | ||||
Model | F3827 V2 | F3C27 V2 | ||
Items | Contents | |||
Ethernet | 1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD | |||
Serial | 1 x RS232(RS422/RS485), built-in 15KV ESD Data bits:5, 6, 7, 8 bits Stop bits:1, 1.5 (Optional), 2 bits Error detection: none, even parity, odd parity, SPACE (Optional) and MARK (Optional) Serial port speed rate: 2400~115200bits/ |
|||
LED Indicators | “PWR”, “SYS”, “LAN”, “WAN”, “NET”, Signal Indicator | |||
Antenna Interface | Cellular: 1 or 2 Standard SMA female antenna interfaces, characteristic impedance: 50 Ω | |||
SIM/UIM Slot | Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD | |||
Power Interface | Standard 3.5mm terminal block interface, with built-in phase-reversal and over-voltage protection | |||
Reset Button | Can reset router’s configuration to default factory setting by this button |
Power | ||||
Model | F3827 V2 | F3C27 V2 | ||
Items | Contents | |||
Standard | DC 12V/1.5A | |||
Range | DC 5~36V | |||
Power Consumption | ||||
Model | F3827 V2 | F3C27 V2 | ||
Items | Contents | |||
Standby | 4G: 96~130mA @ 12VDC 3G: 96~115mA @ 12VDC 2G: 83~90mA @ 12VDC |
|||
Communicating | 4G: 203~290mA @ 12VDC 3G: 172~305mA @ 12VDC 2G: 113~148mA @ 12VDC |
Physical Properties | ||
Model | F3827 V2 | F3C27 V2 |
Items | Contents | |
Casing | Metal casing, IP30 protection level, suitable for most industrial control applications. | |
Dimensions | 100 x 97 x 25mm (Excluding antennas and mountings) |
|
Weight | 320g | |
Others | ||
Model | F3827 V2 | F3C27 V2 |
Items | Contents | |
Operating Temperature | -35~+75℃ | |
Storage Temperature | -40~+85℃ | |
Relative Humidity | 95% (non-condensing) |
Thông tin đặt hàng
Model | Content |
F3C27 V2 | Cat.1 Router |
