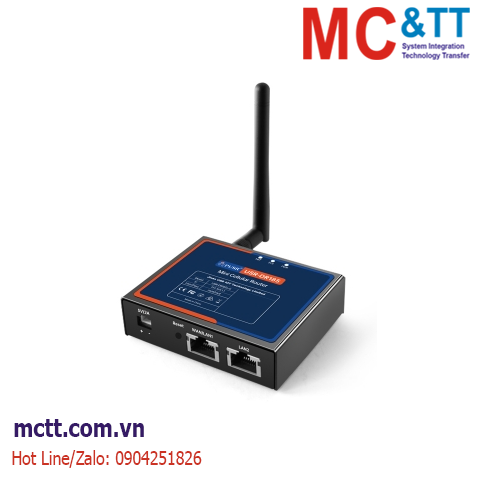

Router công nghiệp 4G với 1 cổng WAN/LAN + 1 cổng LAN VPN USR-DR185s-G
USR-DR185 is the latest model of LTE Cat.1 router released by PUSR. This router has an extremely compact size and supports both rail mounting and wall mounting. It has a wide range of application scenarios. It uses the Quectel cellular module and supports the mainstream 4G frequency bands globally, eliminating geographical restrictions on network connection. In terms of firmware, it supports multiple VPN protocols to ensure data transmission security; it also has DDOS protection capabilities (SYN flood protection, SSH attack protection, HTTP attack protection), ensuring the safe and stable operation of the router.
Tính năng
- Compact size: Suitable for space-constrained applications
- Multiple VPNs: OpenVPN, IPsec, GRE
- DDoS protection: Built-in firewall, protection for SYN/SSH/Ping/HTTP/HTTPS
- Stable power supply: Equipped with XH2.54 connection terminals and self-locking mechanism
- Flexible installation: Mounting ears and rail installation, choose as needed
Thông số kỹ thuật
|
Catalog |
Parameters |
Value |
|
Power Supply |
Power Input |
DC 5V/2A input (DC 4.75V - 5.25V) |
|
Working Current |
241ma@5V |
|
Connector |
XH2.54 connector |
|
Cellular |
Band(Global) |
TDD-LTE: Band 34/38/39/40/41
FDD-LTE: Band 1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/66/71 |
|
Antenna |
External rod antenna with 2dBi gain (Max) |
|
SIM slot |
1 x Micro SIM (3FF) |
|
Ethernet Port |
WAN port |
1× RJ45 port (10/100Mbps, auto MDI/MDIX), can be configured as a LAN |
|
LAN port |
1× RJ45 port (10/100Mbps, auto MDI/MDIX) |
|
Other Interface |
Indicators |
PWR, SYS, NET |
|
Reload Button |
Press for 3–15s to restore factory settings |
|
Type-C |
Debugging interface for troubleshooting |
|
Physical Parameters |
Casing material |
Metal housing, IP30 rated |
|
Dimension |
79 x 66 x 22 mm |
|
Installation |
DIN rail mounting, wall mounting |
|
Operating Temperature |
-25°C to +75°C |
|
Storage Temperature |
-40°C to +85°C (non-condensing) |
|
Operating Humidity |
5%–95% (non-condensing) |
|
Software |
Protocol |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, PPPoE, SSH, DHCP, Telnet |
|
DDoS protection |
SYN, SSH, HTTP, HTTPS, PING protections |
|
VPN |
OpenVPN, IPsec, GRE, PPTP, L2TP |
|
Setup |
User-freindly |
Tài liệu
Datasheet
User Manual
Thông tin mua hàng
