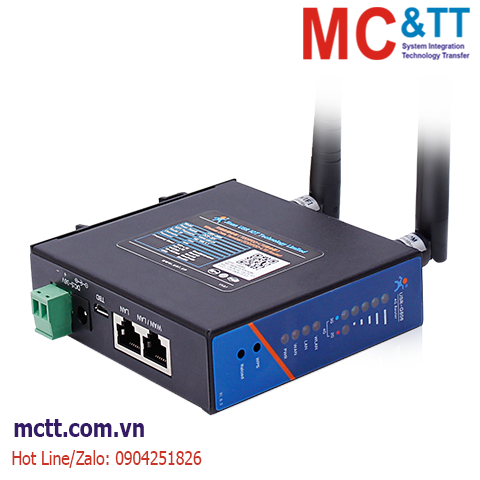

| Hardware Specifications |
Cellular
Interface |
Antenna |
1 x SMA-K
Note: North America models: 2 x SMA 4G antenna connectors. |
| SIM card |
1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots |
| Ethernet |
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection |
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto
MDI/MDIX,1.5KV network isolation transformer protection |
| Indicators |
LED |
PWR: always on after powered on
WLAN: always solid on when WiFi is enabled and working properly
WAN: solid when cable is connected, blinking when data is transmitting and
receiving
LAN ： solid when cable is connected, blinking when data is transmitting and
receiving
2/3/4G mode indicator：2G led is on after connected to 2G network
3G led is on after connected to 3G network
Both leds is on after connected to 4G network
Signal strength：4 solid bars,strongest signal |
| WiFi Interface |
Standards & Frequency |
IEEE 802.11b/g/n,2.4GHz, AP mode |
| Data speed |
IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps |
| Antenna |
1 x SMA-K |
| Transmission distance |
80 meters by line of sight.Actual transmission distance depends on environment of the site. |
| Power Supply |
Adaptor |
DC 12V/1A |
| Connector |
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block,reverse polarity protection |
| Input voltage |
DC 9~36V |
| Working power |
Average 175mA/12V |
Physical
Characteristics |
Housing |
Metal shell,IP30 |
| Dimensions |
110.0*94.0*29.0 mm(L*W*H） |
| Installation method |
Panel mounting, DIN-Rail mounting |
| EMC |
Static IEC61000-4-2, level 2
Pulsed Electric Field IEC61000-4-4, level 2
Surge IEC61000-4-5, level 2 |
| Operating temperature |
-20℃～+70℃ |
| Storage temperature |
-40℃～+125℃ |
| Operating humidity |
5%～95%RH（non-condensing) |
| Others |
Reload |
Pinhole reset button |
| TBD |
Debug interface (TTL Level) |
| Embedded Watchdog |
Device runs self-detection, auto recovers from malfunctions |
| Certificate |
CE,CCC,FCC,ANATEL,PTCRB,AT&T |
| Software Specifications |
Network
Connection |
WAN protocol |
PPP, PPPoE, DHCP client |
| LAN protocol |
ARP, DHCP server, NAT |
| 4G network access |
Auto APN/VPDN, private network
Access authentication: CHAP/PAP |
| WLAN security |
Open system,WPA/WPA2 PSK
TKIP/AES encryption |
| IP routing |
Static routing |
| Network diagnosis |
Ping,route trace,DNS |
Device
management |
Configuration |
Web |
| Remote management |
Telnet, SSH, AT command,SNMP |
| PUSR platform |
Remote monitoring,remote upgrade,alarming,base station location,remote
access to web pages of the router |
| Security |
Failover backup |
Failover between 4G and WAN, ensures automatic switch to alternative
backup connection |
| Firewall |
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| VPN |
Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols |
| Service |
DDNS |
Remote access the device through domain name |
| Alarm |
Email,SMS |
| Others |
NTP client
Timing task |
