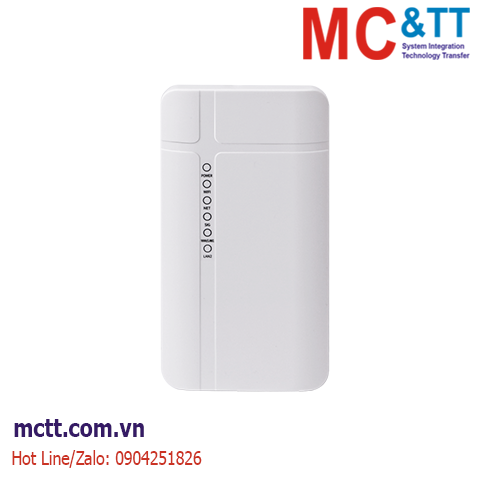

Router công nghiệp 4G với 1 cổng WAN/LAN + 1 cổng LAN Wi-Fi VPN AP510
The AP510 is a rugged, IP65-rated cellular outdoor router with a built-in worldwide cellular module, ensuring reliable connectivity across the globe.Equipped with dual Ethernet ports supporting 48V PoE input, it simplifies installation and power delivery in remote locations.
Housed in an IP65 waterproof enclosure, it with stands high temperatures up to 75°C and low temperatures down to -40°C, making it particularly suitable for providing wired and wireless networks in outdoor areas where running cables is inconvenient. Applicable scenarios include: scenic area monitoring, construction site monitoring, orchard monitoring, farm monitoring, reservoir monitoring, community monitoring, rural household monitoring, mountainous area monitoring, and other challenging monitoring environments where network deployment is difficult.
Tính năng
Stable And Reliable
- Qualcomm chip to ensure the performance and stability.
- IP65 rated, wide operating temperature range (-40°C to 75°C), suitable for outdoor scenarios.
- Optional installations: poll and wall mounting
- Dual power supply redundancy: standard 48V PoE IN / DC 9-36V with reverse polarity protection
- Built-in hardware watchdog which can provide self-diagnostics and self-recovery to ensure systemstability
Uninterrupted network access
- Supports 2G/3G/4G network all over the world, supports APN/VPDN sim card.
- Failover between 4G, WAN and WiFi, ensures automatic switch to alternative backup connection, effectively ensuring
- Equipped with strong Wi-Fi capability, 802.11 a/b/g/n, 2.4G Wi-Fi, 2*2 MIMO, up to 300Mbps
- Support AP/STA/repeater mode
- VPN tunnel detection: maintains stable connection of the VPN tunnel, ensuring continuous transmission.
- Multi-layer link detection mechanism, automatic redial and recovery.
Rich functions
- Supports remote monitoring, upgrade and parameter configuration, remote access to the built-in web pages.
- Supports IPsec VPN, PPTP,L2TP, OPENVPN, GRE etc., ensuring secure data transmission.
- Supports firewall, NAT, DMZ, black and white list of access control.
- Supports DDNS, PPPOE, DHCP, Static IP.
- Supports firewall functions including NAT, access control, DDoS defense, IP-MAC binding, etc., protecting the network against external attacks.
- Support SNMP, VLAN
Thông số kỹ thuật
|
Catalog |
Parameters |
Value |
|
Cellular |
Band(China, India) |
LTE FDD: B1/3/5/8
LTE TDD: B34/38/39/40/41
WCDMA: B1/5/8
GSM: 900/1800MHz |
|
Band(global) |
TDD-LTE:Band 34/38/39/40/41
FDD-LTE：Band 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
WCDMA:B1/2/4/5/6/8/19
GSM/GPRS/EDGE：B2/3/5/8 |
|
Antenna |
Built-in full bidirectional antenna |
|
SIM slot |
1 x Nano-SIM |
|

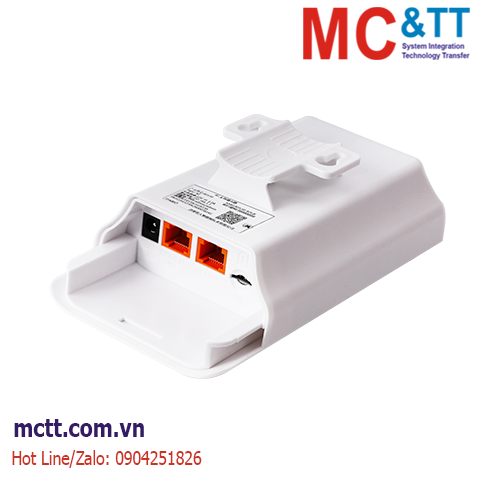

Ethernet Interface |
WAN |
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX |
|
LAN |
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX, |
|
WiFi |
Standards & Frequency |
IEEE 802.11b/g/n, 2.4GHz |
|
Mode |
AP/STA/Repeater |
|
Data speed |
300Mbps |
|
Antenna |
Built-in full bidirectional antenna |
|
Transmission distance |
50 meters by line of sight.Actual transmission distance depends on environment of the site. |
|
MIMO |
2 x 2 |
|
WiFi users |
8 |
|
Power Supply |
Adaptor |
DC 12V/1A |
|
Connector |
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block, reverse polarity protection |
|
Input voltage |
DC 9-36V |
|
Power consumption |
12V@300mA |
|
Physical Characteristics |
Casing material |
IP65 rated, ABS material |
|
Dimensions |
172.06*89.94*57.06mm |
|
Installation |
Poll mounting and wall mounting |
|
EMC |
Static IEC61000-4-2, level 2
Pulsed Electric Field IEC61000-4-4, level 2
Surge IEC61000-4-5, level 2 |
|
Operating Temperature |
-40°C to +70°C |
|
Storage Temperature |
-40°C to +85°C (non-condensing) |
|
Operating Humidity |
5%–95% (non-condensing) |
|
Others |
Indicators |
POWER、WIFI、NET、SIG、WAN/LAN1、LAN2 |
|
Reload button |
Long press 5-15s to reset to factory settings |
