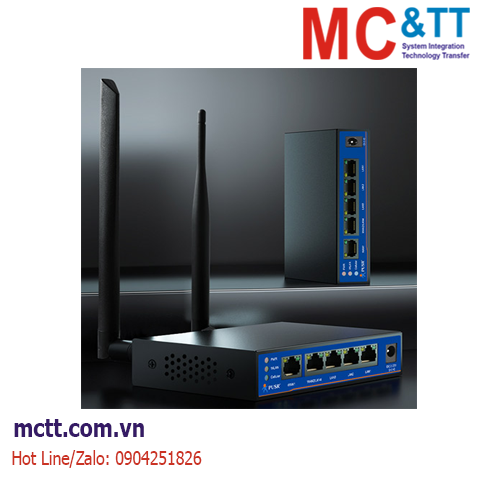

Router công nghiệp 4G + GPS USR-G806s-G của hàng PUSR
USR-G805s is the latest dual-card single-standby router lunched by PUSR. The maincontrol and4Gmodem of this product adopt Qualcomm solution, metal shell, with 5 network ports, support dual WANports, SMS, VLAN and rich VPN functions. The router implements a variety of network backupfunctions:SIM1-SIM2, WAN-cellular, and WiFi-cellular, maximizing the stability of user networking, richVPNfunctionscan ensure the safe transmission of data, using the router, users can experience high compatibilityandhigh stability. PUSR's industrial routers are designed to handle harsh environments and withstandawidetemperature range. USR-G805s are rugged and provide multiple and reliable Internet connectivityforvarious IoT applications. This router can be applied to these scenarios: ATM machine,chagingpile, electrictower, smart retail, remote management of PLC and etc..
Tính năng
Stable And Reliable
Industrial grade design for harsh environments, IP30 mental housing.
Qualcomm processor, to ensure powerful performance.
Support wall mounting and desktop placement.
Wide input voltage range 9~36VDC, DC socket connector.
Multiple EMC protection level 2: Surge, EFT and ESD protection
Built-in hardware watchdog, fault self-detection and self-repair, to ensure systemstability.
Flexible networking
Dual sim cards, single standby.
Supports global mainstream 4G band, can work in global area.
Equipped with 5 Ethernet ports:1*WAN, 1*WAN/LAN (Configurable), 3*LAN.
Supports 2.4G Wi-Fi, AP/STA/bridge mode, flexible networking.
Powerful function
Supports 4G APN/VPDN sim cards.
Built-in ICMP keep-alive detection, heartbeat packet detection and other functions toensurethestableoperation of the device.
Supports firewall, NAT, DMZ, port forwarding, access restriction, etc. to ensure datasecurity.
Cooperating with PUSR service, it can realize centralized management of remote equipmentandimprove operation and maintenance efficiency.
Supports mainstream VPN: PPTP, L2TP, Ipsec, GRE and enhanced OpenVPN.
Support SMS, can be remote management via SMS.
Thông số kỹ thuật
| USR-G805 specifications |
| Cellular Interface |
Frequency |
4G LTE LTE-FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66; LTE-TDD: B34/38/39/40/41; WCDMA：B1/2/4/5/6/8/19; GSM/EDGE:B2/3/5/8; |
| Maximum Transmission Data Rate |
LTE-FDD (Mbps) :150 (DL)/50 (UL) LTE-TDD (Mbps):130 (DL)/30 (UL) |
| Antennas |
1 × SMA-K Connectors (Center PIN: SMA Female) |
| SIM Slot |
2 x (3 V/1.8 V) Nano-SIM(4FF) Push-push type slot |
| Ethernet Interface |
WAN |
2 x WAN ports, RJ45, 10/100 Mbps, the WAN2 port can be configureasLANport, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5KV |
| LAN |
3 x RJ45 port, 10/100 Mbps, supports auto MDI/MDIX crossover, EthernetIsolation 1.5 KV |
| Indicators |
PWR |
red, always on after powered on |
| WLAN |
green, always solid on when WiFi is enabled and workingproperly |
| NET |
ON: Signal strength 25-31 (signal strong) Blinking: Signal strength 15-24 (signal strength is basically normal, andequipment maybe disconnect with the base station) OFF: Signal strength 1-14 (Signal strength is weak, please checkantennaand the signal strength of current location) |
| Wi-Fi Interface |
Antennas |
1 × SMA-K Connectors (Center PIN: SMA Male) |
| Standards |
IEEE 802.11b/g/n (2.4GHz) |
| Modes |
AP/AP+STA/AP+WDS repeater |
| Data speed |
Up to 150 Mbps |
| Security |
Wi-Fi security with mixec-psk, psk+ccmp, psk2, psk2+tkip |
| Transmission distance |
150 meters by line of sight. Actual transmission distance dependsonenvironment of the site. |
| Power Supply |
Adapter |
DC 12V/1A |
| Connector |
DC Power Jack Barrel Type Female 5.5*2.1mmRound socket |
| Input voltage range |
DC9-36V |
| Power consumption |
Max 700mA@12C
Average 376mA@12V |
| Physical Characteristics |
Casing material |
Metal shell, ingress protection IP30 |
| Dimensions |
127.0*84.0*27.0mm (L*W*H, antenna pedestal, terminal blockandDINRailare not included) |
| Installation |
Desktop, wall mounting |
| EMC |
Static IEC61000-4-2, level 2 Pulsed Electric Field IEC61000-4-4, level 2 Surge IEC61000-4-5, level 2 |
| Operating Temperature |
-20℃ ~ +70℃ |
| Storage Temperature |
-40℃～+125℃ (Non-condensing) |
| Relative Humidity 0 |
5%~95% (Non-condensing) |
| Others |
Reload button |
1 × Reload |
| TBD |
Debug interface (TTL Level) |
| Ground protection |
Screw |
| Built-in |
Watchdog |
| Software |
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, ARP, NTP, Telnet, SSH,DDNS, etc. |
| VPN |
LT2P, PPTP, OpenVPN, Ipsec, GRE |
| Security |
Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering(IP&MAC & Domain) |
| Management |
Web UI, PUSR cloud |
| Reliability |
WAN Failover, Dual SIM Backup |
| Certificate |
In progress |
CE, *FCC, *WEEE, RoHS, *RCM, *WPC |
Datasheet
