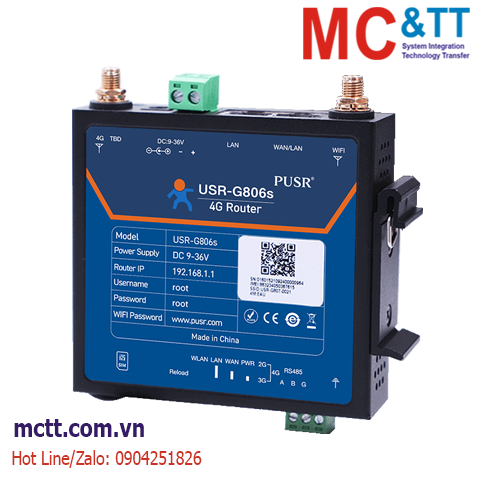

Router công nghiệp 4G với 1 cổng WAN/LAN + 1 cổng LAN Wi-Fi VPN USR-G806s

Router công nghiệp 4G với 1 cổng WAN/LAN + 1 cổng LAN Wi-Fi VPN USR-G806s

The USR-G806s is an IoT cellular router that integrates 4G LTE, Wi-Fi, and VPN technologies to provide an easy, reliable, secure Internet connectivity and high-speed data access for equipment networking. With technologies such as 4G wireless wide area network, Dual Ethernet ports (LAN + WAN), Wi-Fi wireless local area network it provides uninterrupted multiple network access capabilities.

The G806s is a sister product of the G806 series offering a choice of (3-wire) RS485/232. This means that RS485/232 devices,such as electricity meters, programmable logic controllers including Modbus RTU equipment can connect to the internet directly through the router. The product adopts high-performance CPU, working frequency up to 580MHz, based on a variety of hardware interfaces and powerful software functions, users can quickly build their own application network.

The G806s occupies a very small footprint and supports industrial protocols and accessories to ease integration which is suitable for large-scale distributed industrial applications, such as smart express cabinets, charging piles, CCTV, ATM machines, ticket machines, traffic management,vending machines, medical device networking, tower monitoring, lifts monitoring, digital signage, electricity, water conservancy, environmental protection, etc.

Tính năng

Stable And Reliable

• Metal shell, IP30 protection.Ethernet ports support 1.5KV isolation transformer protection.
• Wide operating temperature.Wide voltage input,reverse polarity protection.
• ESD,Surge,EFT protection.
• Embedded hardware watchdog, self-recovers from malfunctions, maintaining high device availability

Uninterrupted network access

• Supports 2G/3G/4G network all over the world ,supports APN/VPDN sim card.
• Failover between 4G and WAN, ensures automatic switch to alternative backup connection,effectively ensuring uninterrupted data transmission.
• VPN tunnel detection: maintains stable connection of the VPN tunnel, ensuring continuous transmission.
• Multi-layer link detection mechanism, automatic redial and recovery

Rich functions

• Supports PUSR cloud platform to facilitate remote monitoring and central management of large-scale device networks.
• Supports remote monitoring, upgrade and parameter configuration, remote access to the built-in web pages.
• Supports email alarm,SMS alarm,abnormal alarm push in time.
• Dual Ethernet ports, WAN/LAN.
• Multiple VPN protocols.
• Wall-mounting and DIN-rail mounting options available,easy to install.
• Supports IPsec VPN, PPTP,L2TP, OPENVPN,GRE etc., ensuring secure data transmission.
• Supports firewall functions including NAT, access control, DDoS defense, IP-MAC binding, etc., protecting the
• network against external attacks.
• Supports WLAN,scaling more devices access.
• Supports APN automatic inspection ,mode switch ,SIM information display, supports private sim card.
• Supports DDNS,PPPOE,DHCP,Static IP.
• Allows multiple network management methods including SSH, WEB, TELNET and a network management platform.
• Provides wireless data communications between field serial devices and the central control system.
• Supports user-defined register & heartbeat packets, transparent TCP/UDP protocol, multi-center

Thông số kỹ thuật

Tài liệu

Datasheet

Thông tin mua hàng
