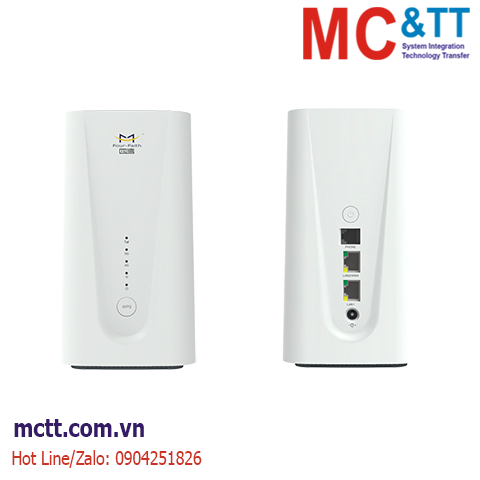

Bộ phát Wi-fi 5G CPE Four-Faith F-NR300 V1
F-NR300 V1 is 5G indoor CPE, supports NR (SA&NSA), TDD-LTE, FDD-LTE, converts cellular network data into WIFI and wired network port data, supports 1x1G LAN port, 1x1G LAN/ WAN port, 2.4G+5G dual-band WIFI-AP. It is suitable for home or commercial scenarios that require rapid deployment of wired broadband networks and WIFI hotspots
Tính năng
- Small and Delicate, Outstanding Appearance
- Supports 1x1G LAN port
- 5G CPE Router supports 1x1G LAN/ WAN port
- Supports 2.4G+5G dual-band WIFI-AP
Thông số kỹ thuật
| Cellular Specification |
| Items |
Contents |
| Frequency Band |
5G NR NSA：n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
5G NR SA： n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
LTE-FDD： B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD： B34/B38/39/B40/B41/B42/B43/B48
WCDMA：B1/B2/B3/B4/B5/B6/B8/B19
Remarks: Different modules support different network standards |
| MIMO |
5G NR:
DL 4 × 4 MIMO: n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79
UL 2 × 2 MIMO: n41
LTE:
DL 4 × 4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66 |
| Theoretical Maximum Bandwidth |
5G Sub-6：DL: 2.5 Gbps，UL: 600 Mbps
LTE：DL: 1 Gbps，UL: 200 Mbps |
| Hardware |
|
| Items |
Contents |
| CPU |
MTK7621 CPU@880MHz,Dual-core |
| FLASH |
128MB |
| DDR3 |
512MB |
| WIFI Specification |
|
| Items |
Contents |
| WIFI Protocol |
IEEE802.11 a/b/g/n/ac/ax |
| Frequency |
2.4GHz+5GHz |
| Theoretical Maximum Bandwidth |
2.4GHz 2x2MIMO 11ax,0.573 Gbps
5GHz 2x2MIMO 11ax, 1.2 Gbps |
| Channel Bandwidth |
20MHz, 40MHz, 80MHz |
| Power Supply |
|
| Items |
Contents |
| Standard Power Supply |
DC 12V/3A |
| Power Supply Range |
DC 9~24V |
| Working Current |
< 1.1A (12V) |
| Interfaces |
|
| Items |
Contents |
| LAN 2 / WAN |
1 x 1G Ethernet (RJ45), auto MDI/MDIX |
| LAN 1 |
1 x 1G Ethernet (RJ45), auto MDI/MDIX |
| Telephone |
1 x RJ11 (Optional) |
| Indicator |
Signal, 5G, 4G, WIFI, Power |
| SIM Card |
Nano-SIM interface |
| Power |
Three-core DC locomotive power socket, built-in power reverse protection |
| USB |
Type C 2.0 |
| Reset Button |
Through this button, the parameter configuration can be restored to the factory value |
| Physical Properties |
|
| Items |
Contents |
| Shell |
ABS Material |
| Dimensions |
178x99x99mm |
| Weight |
638g |
| Operating Temperature |
0~+45ºC |
| Storage Temperature |
-40~+85ºC |
| Humidity |
95% (No-condensing) |
Thông tin đặt hàng
| Models |
Description |
| F-NR300 V1 |
Cellular (5G NR), 2.4G/5G WIFI, SIM*1 |
