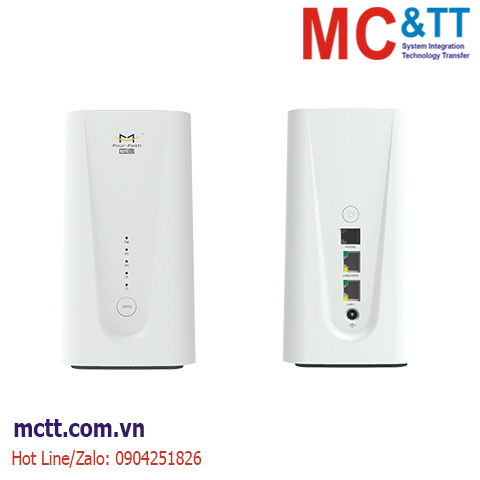

Bộ phát Wi-fi 5G trong nhà CPE Four-Faith F-NR300
F-NR300 is a high-performance 5G indoor CPE, supports NR (SA&NSA), TDD-LTE, FDD-LTE, converts cellular network data into WIFI and wired network port data, supports 1x1G LAN port, 1x2.5G LAN/ WAN port, 2.4G+5G dual-band WIFI-AP.
It is suitable for home or commercial scenarios that require rapid deployment of wired broadband networks and WIFI hotspots
Tính năng
- Small and Delicate, Outstanding Appearance
- High Performance Quad-core Processor, Peak Performance
- Network Self-recovery Function, Plug and Play
- Build 5G Multi-scenario Applications
Thông số kỹ thuật
| Model |
North America Version |
European Version |
| Item |
Contents |
| Frequency Band |
5G Sub-6: n2/5/7/12/14/25/30/41/48/66 /71/77/78
LTE FDD: B2/4/5/7/12/13/14/17/25/26 /29/30/66/71
LTE TDD: B41/46/48
WCDMA: B2/4/5 |
5G Sub-6: n1/3/5/7/8/20/28(a&b)/38/40/41 /77/78/79
LTE FDD: B1/3/5/7/8/18/19/20/26/28(a&b)/32
LTE TDD: B38/40/41/42/43/46
WCDMA: B1/5/8 |
| MIMO |
5G NR:
DL 4×4 MIMO: n2/7/25/30/41/48/66/77/78
UL 2×2 MIMO: n2/7/25/30/41/66/77/78
LTE:
DL 4×4 MIMO: B2/4/7/25/30/41/66
Remark：B29 Receive Only |
5G NR:
DL 4×4 MIMO: n1/3/7/38/40/41/77/78/79
UL 2×2 MIMO: n41/77/78/79
LTE:
DL 4×4 MIMO: B1/3/7/32/38/40/41
Remark：B32/B46 Receive Only |
| Theoretical Maximum Bandwidth |
5G Sub-6：DL 4.67 Gbps, UL 1.25 Gbps
LTE Cat20：DL 1.6 Gbps, UL 211 Mbps |
| Model |
North America Version |
European Version |
| Hardware |
|
| Items |
Contents |
| CPU |
Cortex-A55@2.0GHz, Quad-core |
| FLASH |
32GB |
1GB |
| LPDDR4 |
2GB |
1GB |
| WIFI Specification |
|
| Items |
Contents |
| WIFI Protocol |
IEEE802.11 a/b/g/n/ac/ax |
| Frequency |
2.4GHz+5GHz |
| Theoretical Maximum Bandwidth |
2.4GHz 4x4MIMO 11ax,1.146 Gbps
5GHz 4x4MIMO 11ax, 2.4 Gbps |
| Channel Bandwidth |
20MHz, 40MHz, 80MHz |
| Power Supply |
|
| Items |
Contents |
| Standard Power Supply |
DC 12V/3A |
| Power Supply Range |
DC 9~24V |
| Working Current |
< 1.1A (12V) |
| Interfaces |
|
| Items |
Contents |
| LAN 2 / WAN |
1 x 2.5G Ethernet (RJ45), auto MDI/MDIX |
| LAN 1 |
1 x 1G Ethernet (RJ45), auto MDI/MDIX |
| Telephone |
1 x RJ11 (Optional) |
| Indicator |
Signal, 5G, 4G, WIFI, Power |
| SIM Card |
Nano-SIM interface |
| Power |
Three-core DC locomotive power socket, built-in power reverse protection |
| USB |
Type C 2.0 |
| Reset Button |
Through this button, the parameter configuration can be restored to the factory value |
| Physical Properties |
|
| Items |
Contents |
| Shell |
ABS Material |
| Dimensions |
178x99x99mm |
| Weight |
650g |
| Operating Temperature |
0~+40ºC |
| Storage Temperature |
-40~+85ºC |
| Humidity |
95% (No-condensing) |
Thông tin đặt hàng
| Models |
Description |
| F-NR300 (EU Version) |
Cellular (5G NR), 2.4G/5G WIFI, SIM*1 |
| F-NR300 (NA Version) |
Cellular (5G NR), 2.4G/5G WIFI, SIM*1 |
