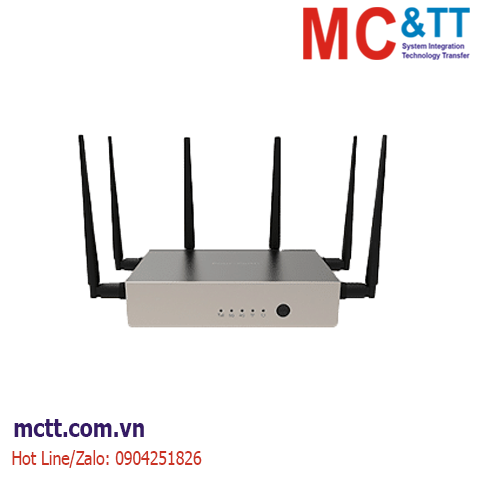

Bộ phát Wi-fi 5G CPE Four-Faith F-NB310-02

The Four-Faith FNB310 is a great value, embedded 5G router with single SIM slot.

This great little unit also supports WiFi6 for high speed WiFi and has 2 x Gigabit Ethernet Ports (1 x LAN and 1 x LAN/WAN) and has a robust metal casing and tried and tested hardware and software with easy configuration.

Tính năng

  • Embedded 5G Modem 5G NR NSA/SA
    • 5G SA Sub-6: 2 Gbps (DL)/ 1 Gbps (UL)
    • 5G NSA Sub-6: 2.6 Gbps (DL)/ 650 Mbps (UL)
    • LTE: 600 Mbps (DL)/ 150 Mbps (UL)
  • WIFI Protocol IEEE802.11 a/b/g/n/ac/ax
    • 2.4GHz 2x2MIMO 11ax,0.573 Gbps
    • 5GHz 2x2MIMO 11ax, 1.2 Gbps

Thông số kỹ thuật

Cellular Specification
Items Contents
Frequency Band
5G NR NSA
n1/ 3/ 7/ 28/ 38/ 40/ 41/ 77/ 78
5G NR SA
n1/ 3/ 5/7/ 8/ 20/ 28/ 38/ 40/ 41/ 66/ 71/ 77/ 78
LTE-FDD
B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28A/ 28B/ 66
LTE-TDD
B38/ 40/ 41
WCDMA
B1/ 2/ 5/ 8
Theoretical Maximum
Bandwidth
5G SA Sub-6: 2 Gbps (DL)/ 1 Gbps (UL)
5G NSA Sub-6: 2.6 Gbps (DL)/ 650 Mbps (UL)
LTE: 600 Mbps (DL)/ 150 Mbps (UL)
WCDMA: 42.2 Mbps (DL)/ 11 Mbps (UL)
DL 2.47Gbps UL 900Mbps

Hardware Items Contents CPU @880MHz, Dual-core FLASH 128MB DDR3 512MB WIFI Specification Items Contents WIFI Protocol IEEE802.11 a/b/g/n/ac/ax Frequency 2.4GHz+5GHz Theoretical Maximum Bandwidth 2.4GHz 2x2MIMO 11ax,0.573 Gbps 5GHz 2x2MIMO 11ax, 1.2 Gbps Channel Bandwidth 20MHz, 40MHz, 80MHz Power Supply Items Contents Standard Power Supply DC 12V/3A
Power Supply Range
DC 9~24V Working Current < 1.1A (12V) Interfaces Items Contents LAN 2 / WAN 1 x 1G Ethernet (RJ45), auto MDI/MDIX LAN 1 1 x 1G Ethernet (RJ45), auto MDI/MDIX Telephone 1 x RJ11 (Optional) Indicator Signal, 5G, 4G, WIFI, Power SIM Card Nano-SIM interface (Compatible with eSIM) Antennas 2 x WIFI Antennas (RP-SMA-J interfaces) 4 x 5G Antennas (SMA-J interfaces) Power Three-core DC locomotive power socket, built-in power reverse protection USB Type C 2.0 Reset Button Through this button, the parameter configuration can be restored to the factory value Physical Properties Items Contents Shell Metal Casing Dimensions 160x94x37mm Weight 801.5g
Operating Temperature
-20~+60ºC Storage Temperature -40~+85ºC
Humidity
95% (No-condensing)
