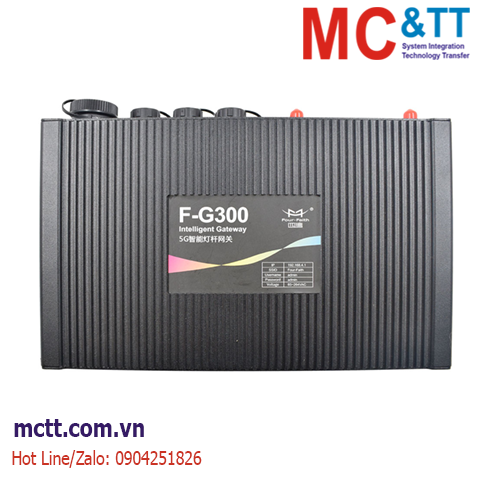

Gateway công nghiệp kết nối 4G (LTE) + Wifi Four-Faith F-G300-4G
Smart light pole gateway F-G300 is a smart street light pole gateway for the Internet of Things. It provides users with wireless long-distance big data transmission, protocol conversion, edge computing, and other functions by using the 5G operator network, wired broadband, and optical fiber.
The product using a high-performance industrial processor and industrial wireless module and takes Linux embedded real-time operating system as the software support platform.
The intelligent gateway can be connected with smart lighting, video monitoring, environmental protection monitoring, meteorological monitoring, LED display, IP voice column, IP horn, one-key alarm, charging pile, environmental sensor, liquid level sensor, tilt sensor, temperature sensor, and other equipment.
Tính năng
- Adopt dual core high performance hardware platform, with powerful edge computing function
- WDT watchdog design, system more stable
- With local storage and continuous transmission, data will never be lost
- With perfect anti-drop mechanism, stable data transmission
- Support DES, 3DES and other encryption methods, with VRRP hot backup function
- Support hardware encryption and APN/VPDN private network, data security worry-free
- Smart light pole gateway support hardware encryption and APN/VPDN private network
- Support SPI firewall, VPN crossing, access control, URL filtering
- Support eSIM to prevent SIM card get theft
- Support 5G/4G transmission
- With rich industrial protocols, support multiple types of intelligent devices access
- Smart light pole gateway support devices management, remote maintenance functions and third-party platform docking
- Support transparent transmission, Http, MQTT, TCP/IP, OPC, MODBUS RTU transfer to TCP and other protocols
Thông số kỹ thuật
| Project |
Content |
| Module |
Industrial wireless module |
| Standard |
5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79
LTE:B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/
B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71 |
| Theoretical bandwidth |
5G NR：DL 3.4Gbps，UL 350Mbps
LTE Cat20：DL 2.0Gbps，UL 150Mbps
HSPA+：DL 42Mpbs，UL 5.76Mbps |
| Transmit power |
<23dBm |
| Receiving sensitivity |
<-97dBm |
WIFI Specification
| Project |
Content |
| Standard and Frequency |
Support IEEE802.11b/g/n，2.4G, 2*2 MIMO，AP mode，Station mode（optional）
Support IEEE802.11ac，5.8G, 2*2 MIMO，AP mode，Station mode（optional） |
| Theoretical bandwidth |
IEEE802.11b/g：Max Speed 108Mbps
IEEE802.11n：Max Speed 300Mbps
IEEE802.11ac：Max Speed 780Mbps |
| Security |
Support WEP、WPA、WPA2，WPS Optional |
| Transmit power |
26dBm（11b），21.5dBm（11g），20dBm（11n），16dBm（11ac） |
| Receiving sensitivity |
<-72dBm@54Mpbs |
| Project |
Content |
| CPU |
Industrial 32-bit communication processor |
| FLASH |
32MB |
| DDR3 |
512MB |
| TF |
8GB/32GB，optional |
| Project |
Content |
| AC input |
1 x 85~264V/35A |
| AC output |
3 x 85~264V/10A，Provide 220V output power supply to the corresponding equipment; remote control switch, voltage and current detection, a single channel allows a maximum current of 10A |
| DC output |
1 x 12V/2A（1 x 24V/2A），Can realize remote switch and current detection |
| SFP |
2 x SFP interface，10/100/1000M SFP slot，Support single-mode, multi-mode fiber, support ring network management, ring, chain and other network topology |
| WAN |
1 x 10/100/1000M Ethernet（RJ45）,auto MDI/MDIX，Built-in 1.5KV electromagnetic isolation protection |
| LAN |
7 x 10/100/1000M Ethernet（RJ45）auto MDI/MDIX，Built-in 1.5KV electromagnetic isolation protection, Among them, 4 channels of POE, support POE+ single channel power up to 30W |
| Serial |
4 x RS485，Built-in 15KV ESD protection：
Data bit：5、6、7、8
Stop bit：1、2
Check ：NONE、EVEN、ODD
Band rate：2400~115200bits/s |
| Indicators |
"Power", "System", "Online","Signal " |
| DI |
4 x DI
Input high level： 5 to 30 VDC
Input low level： 0 to 3 VDC |
| DO |
2 switch output DO, load current: <50mA @ 30VDC |
| Relay |
2 passive relay control outputs, relay load: 5A 250VAC/30VDC |
| AI |
2 x 4~20mA ADC interface |
| GPS |
1 x GPS |
| Antenna |
Cellular:4x Standard SMA female antenna interface, characteristic impedance 50 ohm
WIFI：2x Standard SMA female antenna interface, characteristic impedance 50 ohm
GPS：1x Standard SMA female antenna interface, characteristic impedance 50 ohm(optional) |
| SIM/UIM |
2 standard drawer type user card interfaces, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection (Remarks: Compatible with e-SIM) |
| TF |
1 x TF card interface |
| Reset |
Through this button, the parameter configuration can be restored to the factory value |
| Project |
Content |
| shell |
Metal case, protection class IP30 |
| Size |
215*134.7*70.2 mm (Excluding antennas and mounts) |
| Weight |
1.8kg |
| Project |
Content |
| Operating temperature |
-35~+75ºC（-31~+167℉） |
| Storage temperature |
-40~+85ºC（-40~+185℉） |
| Relative humidity |
95%(No condensation) |
Thông tin đặt hàng
| Model |
Content |
| F-G300-4G |
4G LTE Intelligent Gateway Smart Street Light Pole
1*AC Input + 3*AC Output + 2*DC Output + 2*SFP + 7*LAN + 1*WAN + 4*RS232/RS485 + 4*DI + 2*DO + 2*Relay + 2*AI + 1*GPS/Dual WiFi (2.4G and 5G)/TF card/Dual SIM/Lora&Zigbee(Optional) |
