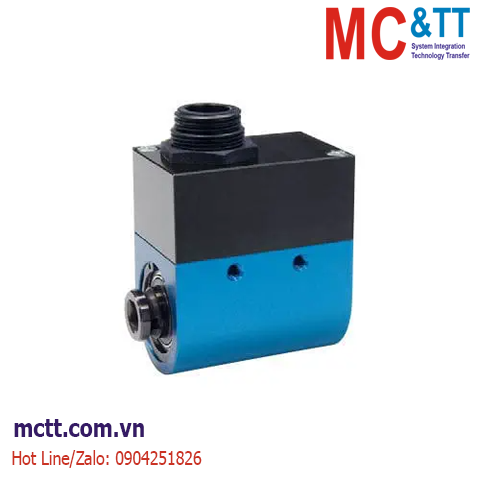

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 - 5000 Nm Lorenz DR-3001

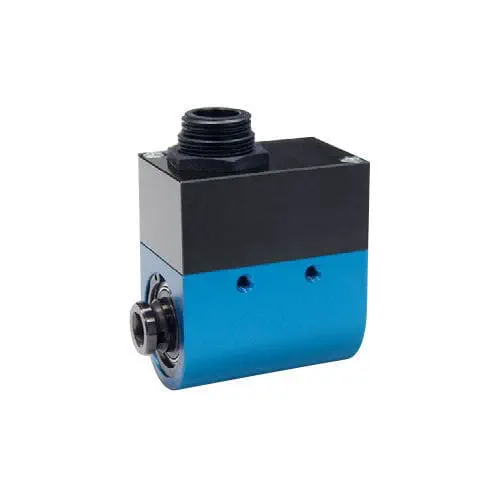

DR-3001, Rotary Torque Sensor with USB Interface
The DR-3001 torque sensor comes configured with evaluation software. USB interface feeds-in directly to the sensor so no external power supply is necessary. The very short axial length and high torsional stiffness make for a reliable measurement.
Features:
- Contactless Rotary Torque Sensor
- Square Shaft & Socket
- Very Short Axial Length
- Integrated Angle/Speed Measurement
- Connection: 3m Integral USB Cable
- Suited for Mobile Operation with a Notebook
- Special Versions on Request
DR-3001 - Specifications
| Type |
Rotary |
| Full Scale |
0.1 Nm |
| |
0.2 Nm |
| |
0.5 Nm |
| |
1 Nm |
| |
2 Nm |
| |
5 Nm |
| |
10 Nm |
| |
15 Nm |
| |
20 Nm |
| |
35 Nm |
| |
50 Nm |
| |
63 Nm |
| |
100 Nm |
| |
160 Nm |
| |
200 Nm |
| |
500 Nm |
| |
1000 Nm |
| |
2000 Nm |
| |
5000 Nm |
| Max Speed |
1000 RPM |
| |
1500 RPM |
| |
2500 RPM |
| |
3000 RPM |
| |
4000 RPM |
| Output |
USB |
| Precision |
±0.10 % FS |
| Excitation |
4 V - 6 V DC |
| Drive Side |
Square Socket |
| Test Side |
Square Shaft |
| IP Rating |
IP50 |
| Min Temperature |
0 °C |
| Max Temperature |
60 °C |
