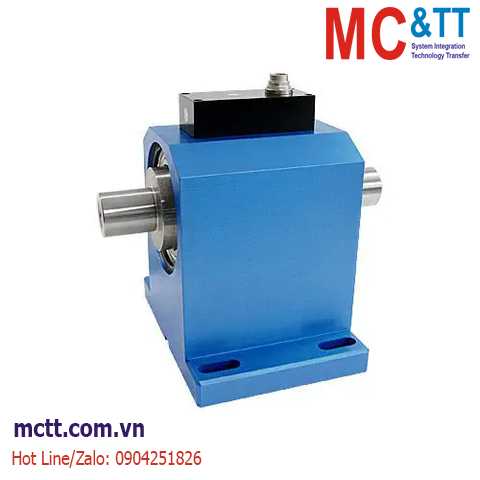

Cảm biến đo Momen xoắn trục quay không tiếp xúc Dual dải đo 0.5 / 5 - 2000 / 20000 Nm Lorenz DR-2831, DR-2831-P

Chia sẻ:
Mã sản phẩm: DR-2831, DR-2831-P
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Dual range torque sensor, rotating contactless with angle/speed measurement & cylindrical shafts from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc Dual dải đo 0.5 / 5 - 2000 / 20000 Nm Lorenz DR-2831, DR-2831-P

DR-2831, Dual Range Digital Output Rotary Torque Sensor
The DR-2831 torque sensor has a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. The unit can perform auto-identification of measuring range, serial number and date of calibration.

Features:

  • Contactless Rotary Torque Sensor
  • Dual Range
  • Round Shafts
  • Connection: 12-pin Series 581 Connector with Speed Option
  • Digital Output RS-485

DR-2831 - Specifications

Type Rotary
  Dual Range
Dual Range 1:10
Full Scale 5 Nm
  10 Nm
  20 Nm
  30 Nm
  50 Nm
  100 Nm
  200 Nm
  300 Nm
  500 Nm
  1000 Nm
  2000 Nm
  5000 Nm
  10000 Nm
  20000 Nm
Max Speed 3500 RPM
  5500 RPM
  7000 RPM
  12000 RPM
Output RS-485
Precision ±0.10 % FS
Excitation 12 V - 28 V DC
Drive Side Round Shaft
Test Side Round Shaft
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Coupling (PDF Datasheet): 0.5 /5..3 / 30 N·m
5 / 50..2000 / 20000 N·m
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends
Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends

PDF Datasheet: DR-2531, DR-2531-P: 080945a_DR-2531_en.pdf
DR-2831, DR-2831-P: 080947b_DR-2831_en.pdf
