Cảm biến đo Momen xoắn trục quay không tiếp xúc 1 - 5000 Nm Lorenz DR-2643, DR-2643-P

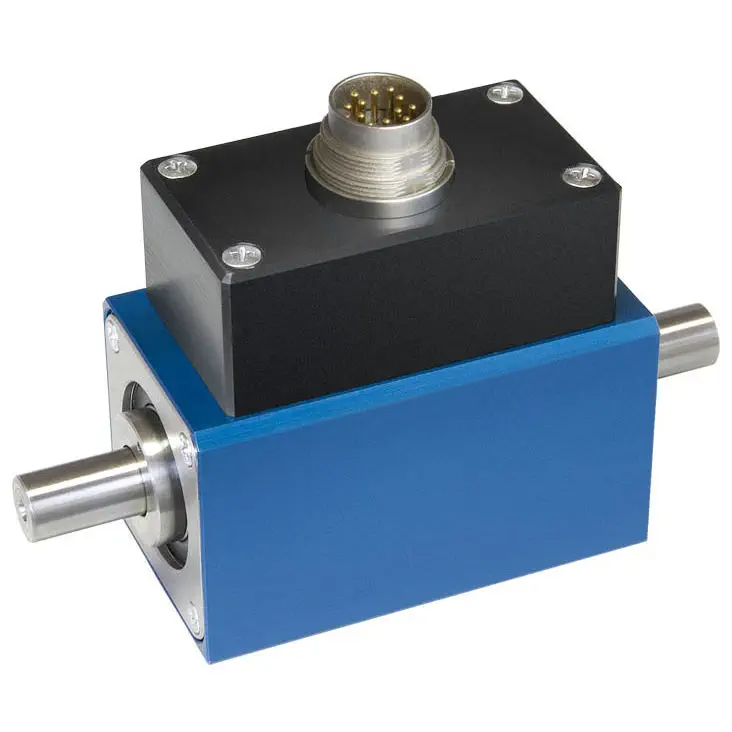

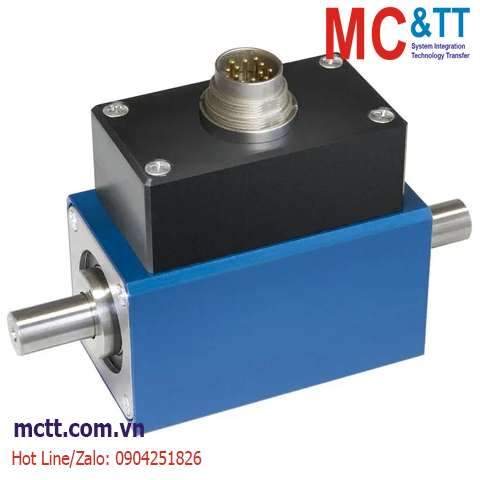

DR-2643, Rotary Torque Sensor
The DR-2643 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness allow for simple handling and simple assembly. There is virtually no influence of the bearing friction on the measuring signal.

Features:

  • Contactless Rotary Torque Sensor
  • Round Shafts
  • Very Short Axial Length
  • Integrated Angle/Speed Measurement (Option)
  • Connection: 12-pin Series 581 Connector with Speed Option
  • Analog Output ±5V (±10V Option)
  • Special Versions on Request

DR-2643 - Specifications

Type Rotary
Full Scale 0.1 Nm
  0.2 Nm
  0.5 Nm
  1 Nm
  2 Nm
  5 Nm
  10 Nm
  20 Nm
  30 Nm
  50 Nm
  100 Nm
  200 Nm
  500 Nm
  1000 Nm
  2000 Nm
  5000 Nm
Max Speed 12000 RPM
  15000 RPM
  20000 RPM
  30000 RPM
Output ±5 V DC
  ±10 V DC
  Speed/Angle (TTL)
Precision ±0.10 % FS
Excitation 12 V - 28 V DC
Drive Side Round Shaft
Test Side Round Shaft
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Coupling (PDF Datasheet): Stiff Sensor Assembly:

0.5..30 N·m
50..5000 N·m
50..5000 N·m - High Speed

Floating Sensor Assembly:
0.5..30 N·m
50..5000 N·m


Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends
Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends

PDF Datasheet: 080885f_DR-2643_en.pdf
